AA.200 – MagmaX2 Active Multiband GNSS Magnetic Mount Antenna


Magnetic mount with robust IP67 Rated Enclosure
Covering Bands:
• GPS/QZSS (L1/L2)
•Galileo (E1/E5a/E5b)
•BeiDou (B1/B2a/B2b)
Low Axial Ratio
Cable: 1.5m RG-174 / Connector: SMA Male Straight
Dimensions: 63.2 x 67.2 x 26.5 mm
RoHS & Reach Compliant

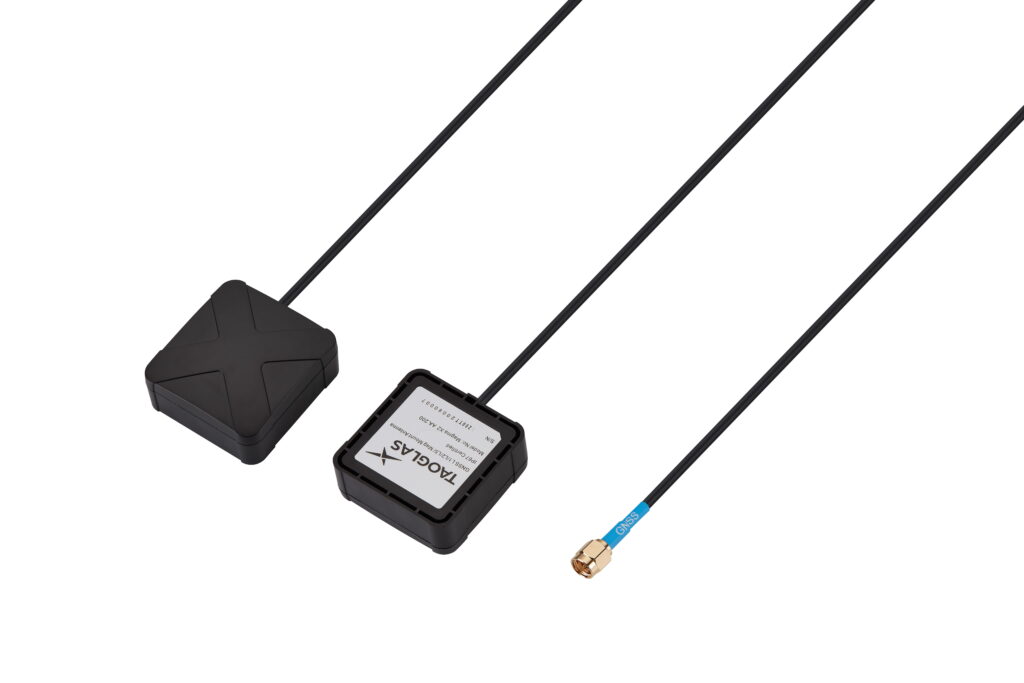

Image AA.200.151111

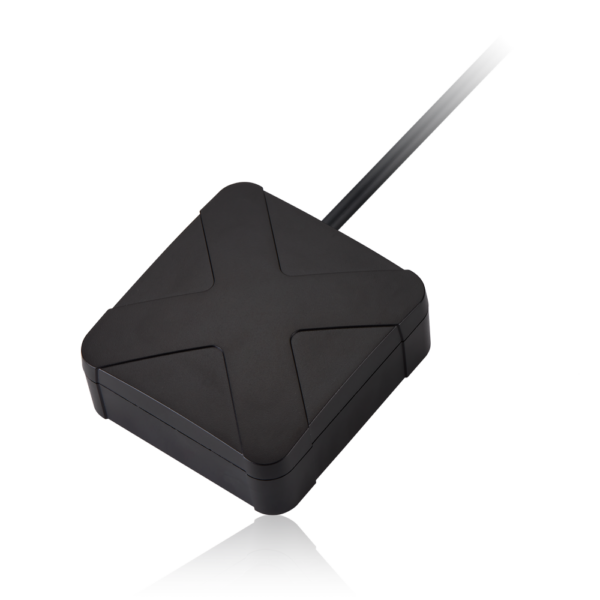

AA.200 – MagmaX2 Active Multiband GNSS Magnetic Mount Antenna


Active Multiband GNSS Magnetic Mount Antenna

The Taoglas MagmaX2 AA.200 is an active multiband GNSS magnetic mount antenna for use across most major constellations including GPS (L1/L2/L5), GLONASS (G1/G2/G5), Galileo(E1/E5a/E5b) and BeiDou(B1/B2). The antenna exhibits excellent gain and good radiation pattern stability leading to a reliable GPS fix in areas of weaker signal strength. These elements combine to ensure the best possible positional accuracy for systems where RTK is enabled and where RTK is disabled.

Typical applications include:
– UAVs and Robotics – Autonomous Vehicles – High Accuracy Positioning
– RTK Systems – Precision Agriculture – Navigation

The AA.200 provides excellent positional accuracy, this is due to outstanding signal to noise ratio(C/N0) and a low axial ratio of less than 2 thus ensuring the antenna maintains stable when a location is required. With great 2DRMS and Fast time to first fix the AA.200 is the ideal antenna solution for Multiband GNSS RTK Systems as it performs very well, with stable gains and low axial ratio values across all major GNSS bands.

The AA.200 includes LNAs and front-end SAW filters to reduce out of band noise, such as from nearby cellular transceivers. It offers better protection from nearby radiated power surges and greatly reduces the probability of damaging your GNSS receiver from nearby transmissions. The AA.200 has 1 cable feed as the L1, L2 and L5 feeds are combined with a hybrid coupler and the antenna performance results are shown in the below sections.

The cable and connector are fully customizable, subject to NRE and MOQ. For further information please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1160 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 1500
Packaging Carton
IP Rating IP67
RoHS Yes
Gain (Max) 27.8
GNSS Type Active GNSS
GNSS Bands L1/L2/L5
Length (mm) 63.19
Width (mm) 67.19
Height (mm) 26.5
Weight (g) 160
