GPS/GLONASS/BeiDou 1 Stage Active Patch 25.1*25.1*7.9mm, 60mm Ø1.13, I-PEX MHF I ® (U.FL)

AGGBP.25A.07.0060A

1 Stage 18dB
Active GPS/Galileo/GLONASS/BeiDou Patch Antenna Module
Front End SAW Filter
60mm 1.13 I-PEX MHF I ® (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dims: 25.1*25.1*7.9mm

Image AGGBP.25A.07.0060A

AGGBP.25A.07.0060A

GPS/GLONASS/BeiDou 1 Stage Active Patch 25.1*25.1*7.9mm, 60mm Ø1.13, I-PEX MHF I ® (U.FL)

Overview

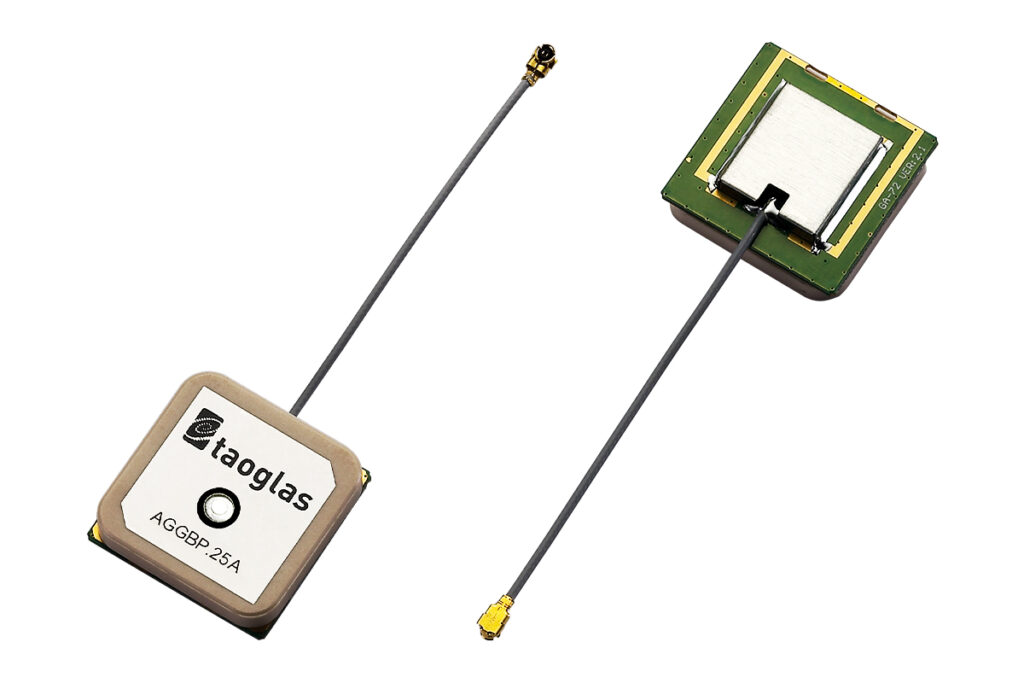

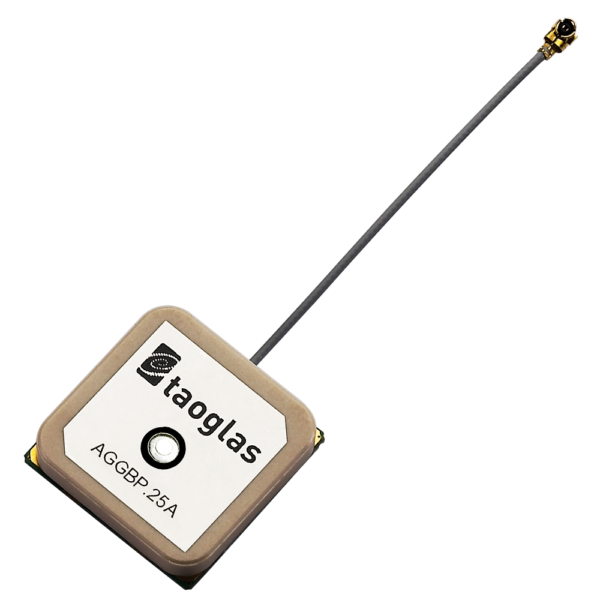

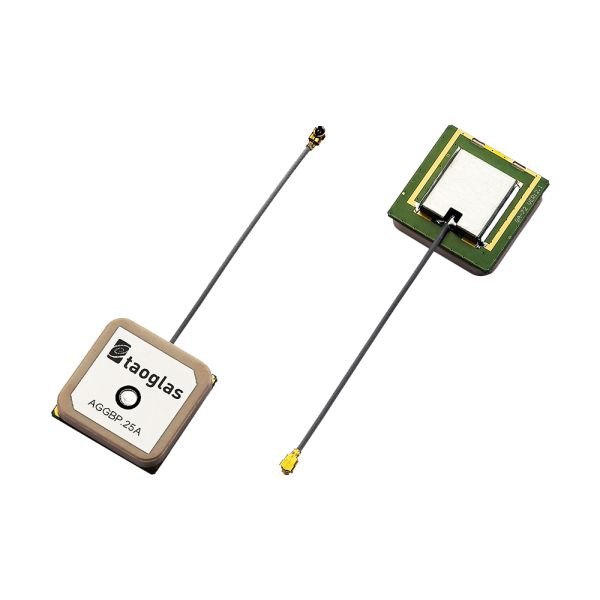

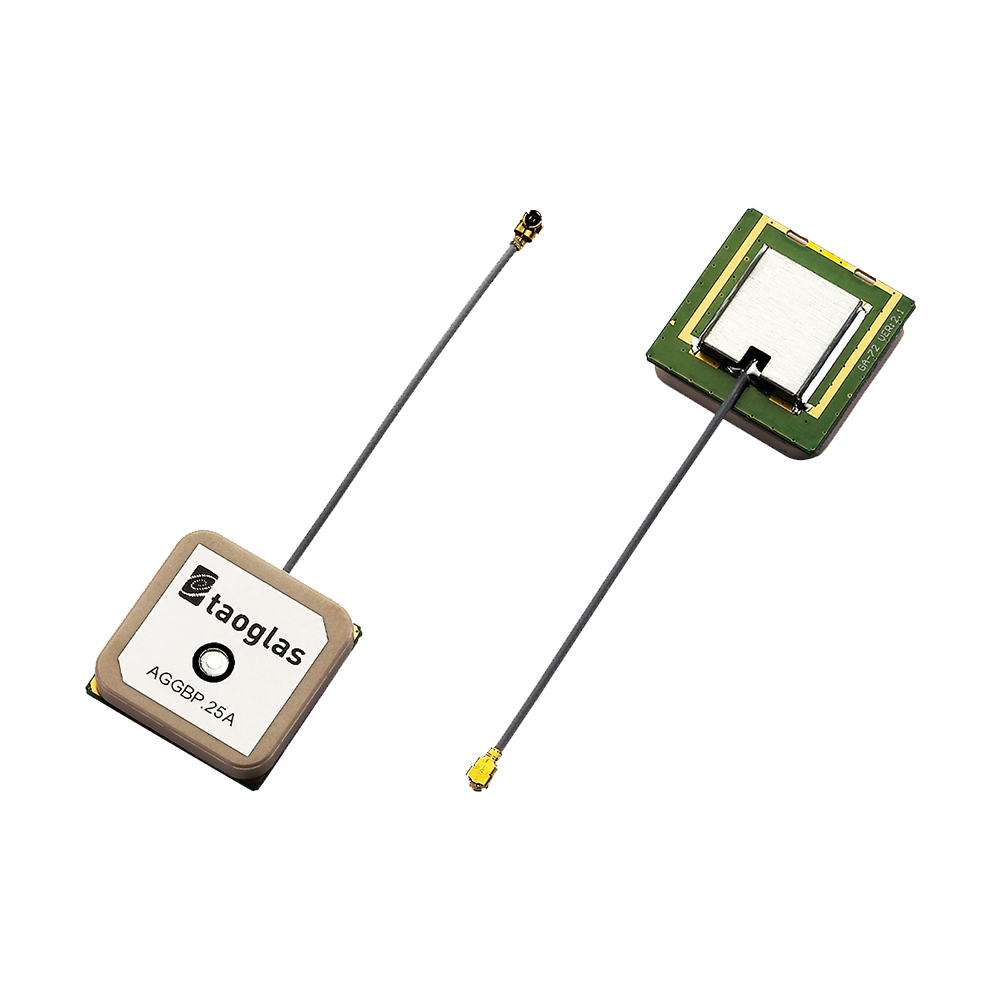

The AGGBP.25A is an internal GPS/GLONASS/GALILEO/BeiDou active patch antenna with Ø1.13 cable and I-PEX MHFI® (U.FL compatible) connector. It is the ideal antenna for next-generation GNSS devices to achieve good sensitivity across all bands in a small form factor. The active patch antenna, by means of a double resonance design, has a wide-band operation over GPS/GLONASS/GALILEO/BeiDou systems from 1561MHz to 1606MHz.

It includes a one-stage LNA and front-end SAW filter to reduce out of band noise, such as from nearby cellular transceivers. This antenna offers better protection from nearby radiated power surges and greatly reduces the probability of damaging your GPS/GLONASS/GALILEO/BeiDou receiver due to nearby transmissions. The patch, the ground plane, the LNA, and front-end SAW components are all integrated in a dimension of 25.1 x 25.1 x 7.9 mm, connecting with a Ø1.13 60mm long coaxial cable and an IPEX MHFI® connector.

The AGGBP.25A is manufactured and tested in a TS16949 first tier automotive approved facility. The cable length and connector type can be adjusted for a MOQ. For further optimization to customer-specific device environments, custom-tuned patch antennas can be supplied, again to a MOQ. For more details please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 22
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1561MHz - 1602MHz
Connector Polarity Normal
Cable Length (mm) 60
Packaging Carton
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 25.1
Width (mm) 25.1
Height (mm) 7.9
Weight (g) 11.38
