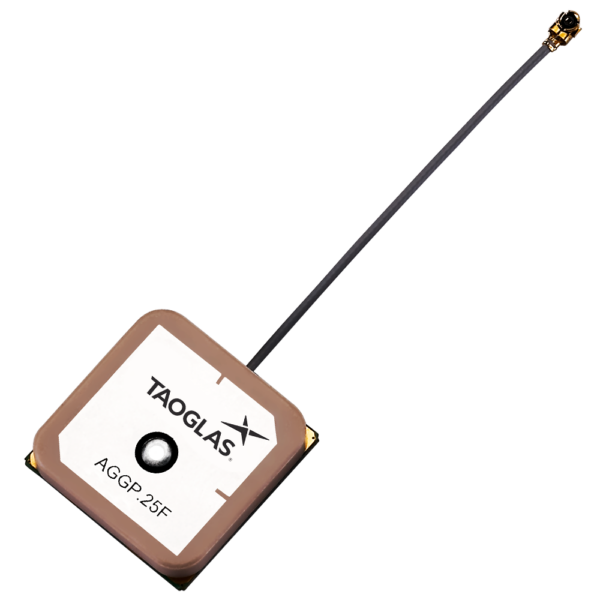

AGGP.25F GPS/GLONASS/GALILEO 2 Stage Active Patch 25*25*7.4mm, 60mm Ø1.13, I-PEX MHF® I (U.FL)

AGGP.25F.07.0060A

2 Stage 28dB
Active GPS/GLONASS/GALILEO/GNSS Patch Antenna Module
Front End SAW Filter
60mm 1.13 I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.0V
Dims: 25.1*25.1*7.4mm

Image AGGP.25F.07.0060A

AGGP.25F.07.0060A

AGGP.25F GPS/GLONASS/GALILEO 2 Stage Active Patch 25*25*7.4mm, 60mm Ø1.13, I-PEX MHF® I (U.FL)

Overview

The AGGP.25F GPS/GLONASS/GALILEO GNSS active patch antenna (along with the AGGP.35 model) is the best choice to use as an embedded antenna with the latest generation of GPS/GLONASS/GALILEO GNSS receivers. It utilizes a 25.1*25.1*4mm advanced wide-band ceramic patch antenna with optimized gain, radiation pattern and axial ratio at GPS, GLONASS and GALILEO centre frequencies. The AGGP.25F aslo includes a two-stage LNA and a front-end SAW filter to reduce out of band noise such as from nearby cellular transceiver, and improve the probability of the wireless device passing radiated spurious emissions certification.

Produced in TS16949 automotive quality approved facility and 100% tested for gain (S21), return loss (S11) to ensure total consistency of performance. Cable type, length and connectors can be customized and samples offered according to requirement, subject to minimum order quantities in production. Taoglas also offers custom tuning service based on minimum order quantities, contact your local regional sales office for details. The AGGP.25F consists of 2 functional blocks – the LNA and also the patch antenna.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain 1.5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1560MHz To 1602MHz
Connector Polarity Normal
Cable Length (mm) 60
Packaging Carton
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 25.1
Width (mm) 25.1
Height (mm) 7.4
Weight (g) 13
