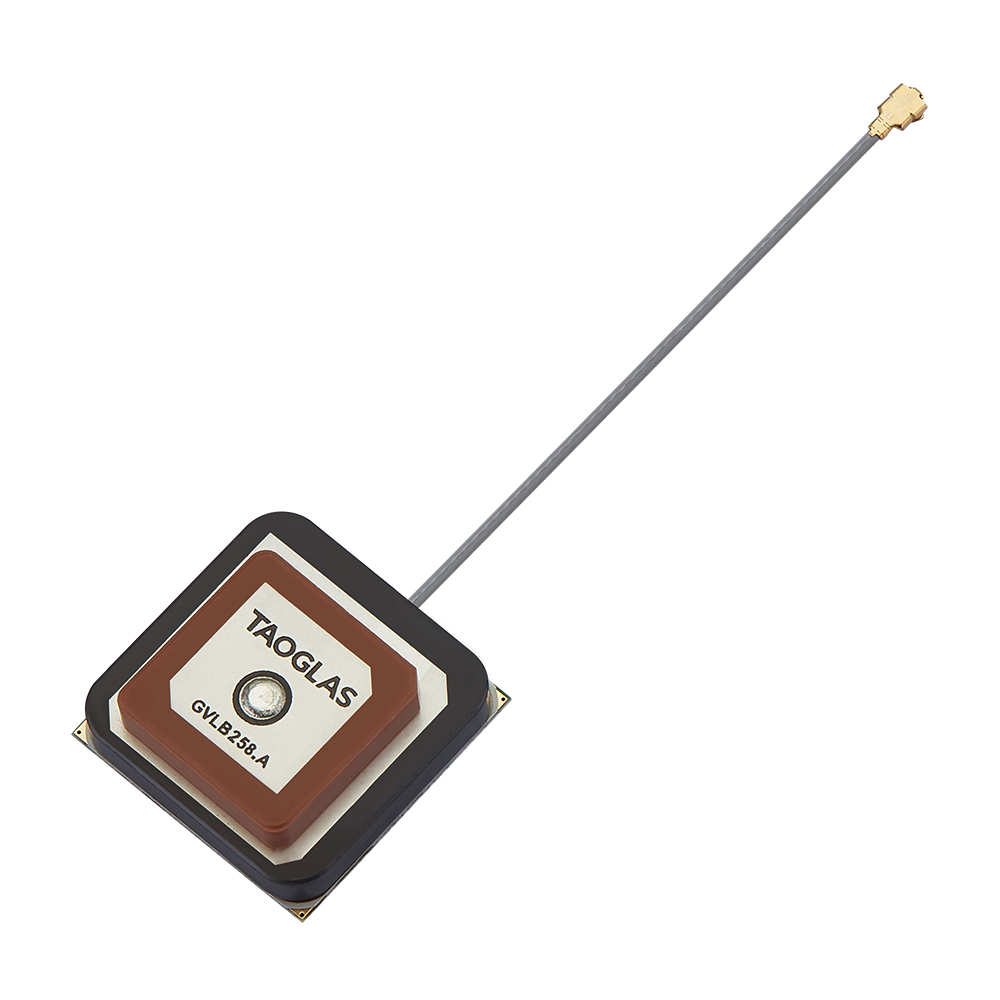

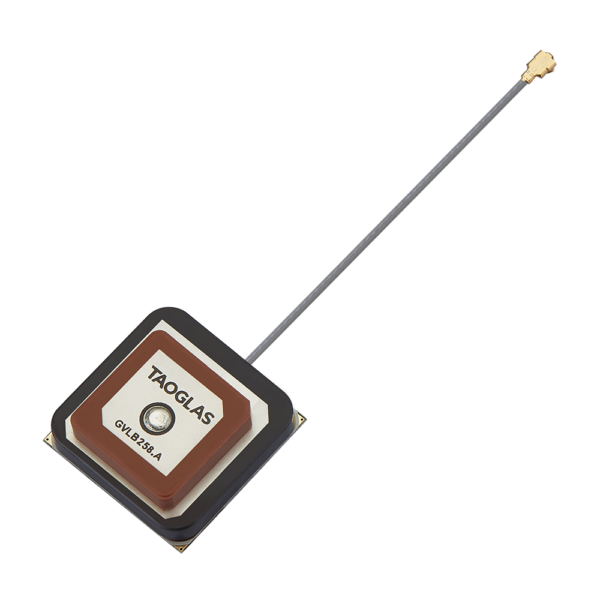

Image AGVLB.25A.07.0060A


AGVLB.25A – GNSS L1 / L5 Active Stacked Patch Antenna

GNSS L1 / L5 Active Stacked Patch Antenna

The Taoglas Accura AGVLB.25A is a multi-band GPS, GLONASS, BeiDou/Compass and IRNSS, high-performance GNSS L1 / L5 Active Stacked Patch Antenna for high precision GNSS accuracy and fast positioning. It utilizes a 25*25*8mm advanced dual-stacked ceramic patch antenna with optimized gain for GPS L1/L5, GLONASS, Galileo, IRNSS and BeiDou bands. Integration of IRNSS allows for better navigation accuracy and enables compliance with AIS-140 for tracking devices in India.

The AGVLB.25A has been designed for in-device mounting with a small size of just 25*25*12mm, it can fit in some of the most compact devices.

This compact antenna exhibits excellent radiation patterns on both GPS L1/L5 bands and with a low noise figure to preserve signal quality helps minimize time to first fix. It also features excellent out-of-band rejection to prevent out-of-band signals from overdriving or damaging its LNAs.

Typical Applications Include:

– RTK – Wearables – Transportation – Agriculture
– Navigation – Security – Autonomous Vehicles

The AGVLB.25A has been tuned and tested on a 70 x 70 mm ground plane and exhibits omnidirectional radiation patterns at both bands.

The cable and connector are fully customizable, contact your regional Taoglas customer support team to request these services or additional support to integrate and test this antenna’s performance in your device.
