Apex TG.30 5G/4G Terminal Antenna, SMA (M) RA

TG.30.8112

Wideband 5G/4G Antenna – 600 to 6000MHz
Typical 70%+ Efficiency and 3dBi+ Peak Gain
Right Angle termination with SMA(M) Connector
IP65 Rated Enclosure
Dimensions: 149*49mm
FirstNet Ready
CE Certified for RoHS Compliance

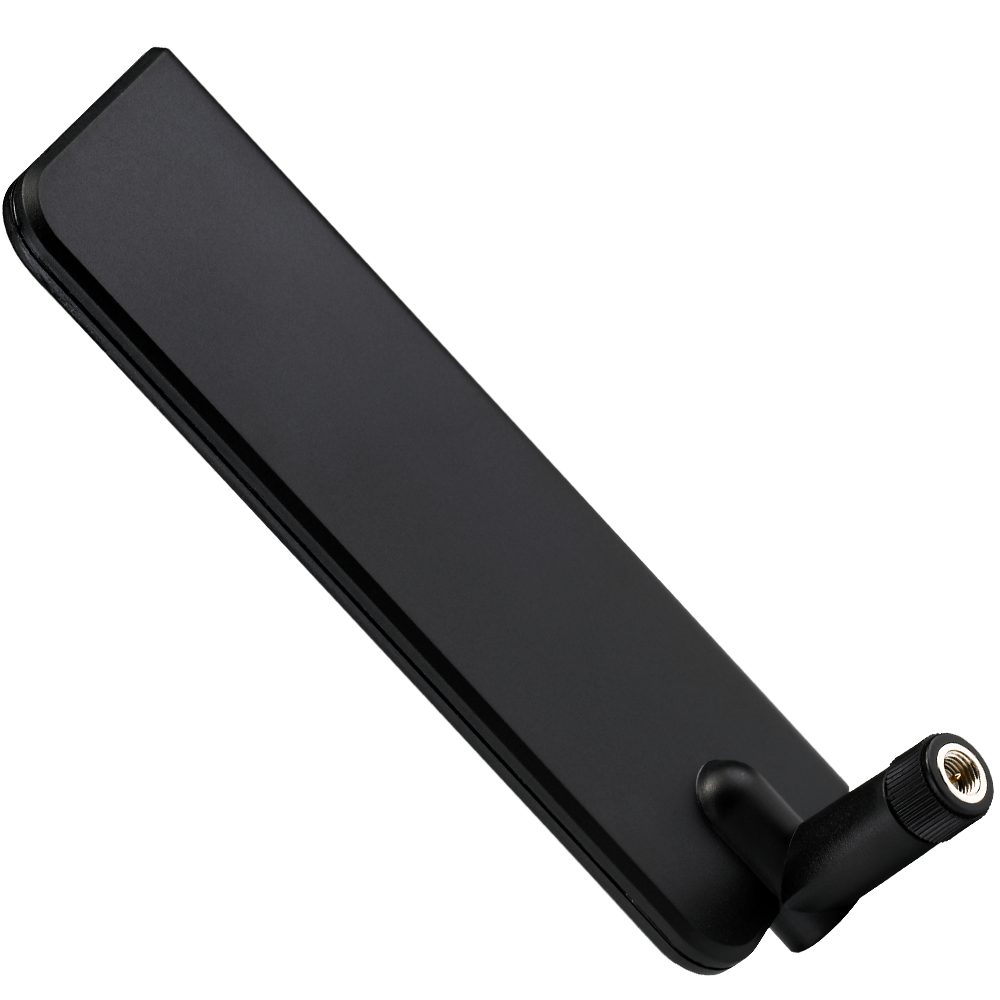

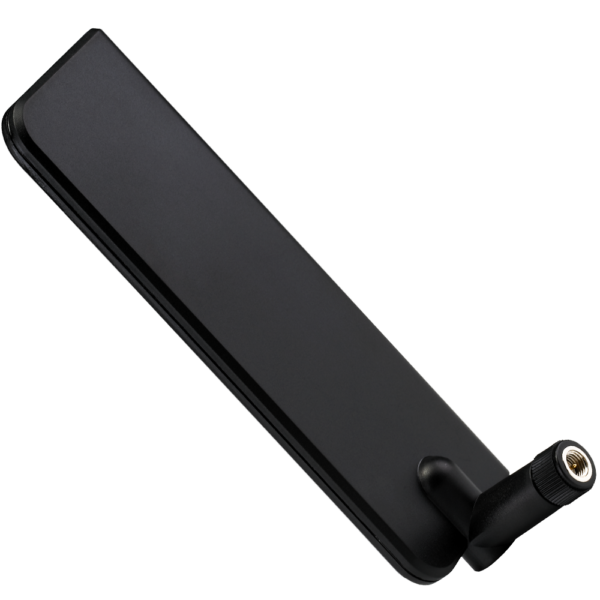

Image TG.30.8112

TG.30.8112

Apex TG.30 5G/4G Terminal Antenna, SMA (M) RA

Overview

The Apex TG.30 is an omnidirectional 5G/4G antenna. This fixed 90 degree, connector mount, dipole antenna is primarily designed for use with 5G/4G modules and devices that require the highest possible efficiency and peak gain in order to deliver best-in-class throughput. Ideal for all major worldwide cellular bands, it is perfect for access points, terminals, and routers. The antenna is ground plane independent with an SMA(M) connector and is backward compatible with 3G/2G cellular applications such as GSM, LTE, UMTS, Wi-Fi, and even GPS bands for Assisted GPS and/or E911 applications. With very high efficiency on all global cellular bands, it is an ideal solution for any device requiring reliable performance. It is also guaranteed to meet any type of approval or carrier certification requirements from an RF standpoint.

The Apex TG.30 has a robust, UV-resistant, IP65 rated waterproof enclosure that has been designed so the TG.30 can be used in challenging environments. This patented antenna is available in both white and black versions, and it is also available with straight and rotatable connectors. For more information, contact your regional Taoglas customer support teams.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Cable Type None
Connector Body Style Right Angle
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) None
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain 3.5
Length (mm) 49
Width (mm) 10
Height (mm) 148.6
Weight (g) 48
