Omnidirectional Radiation
Collinear
8dBi Peak Gain
Robust Design for all-weather operation
IP65 Waterproof
Length: 1.474m, Weight: 870g
Connector: N-type Female
Wall/Pole Mount Bracket Included

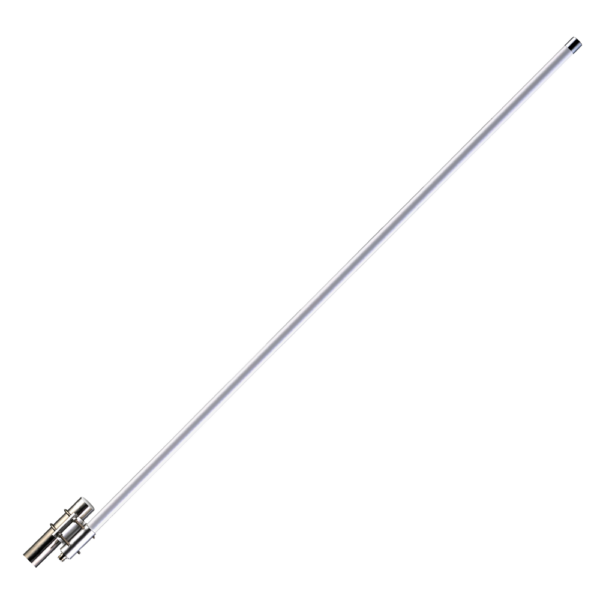

Barracuda OMB.915.B08F21 915MHz 8dBi Omnidirectional Outdoor Antenna
OMB.915.B08F21
OMB.915.B08F21
Barracuda OMB.915.B08F21 915MHz 8dBi Omnidirectional Outdoor Antenna
Overview
Omnidirectional Outdoor Antenna
The OMB.915.B08F21 is a fiberglass omnidirectional outdoor antenna, operating in the 915 MHz ISM bad. The antenna has an 8dBi high peak gain, providing a large coverage area. Typical applications are in ISM, WLAN, RFID, SigFox, Lora and LPWA networks. The OMB.915.B08F21 Operated at 915MHz, with an 8dBi peak gain. The omnidirectional antenna collinear dipole design means it radiates uniformly in the azimuth with a high gain, providing coverage over long distances, thus minimizing the number of cells or nodes needed in a network.

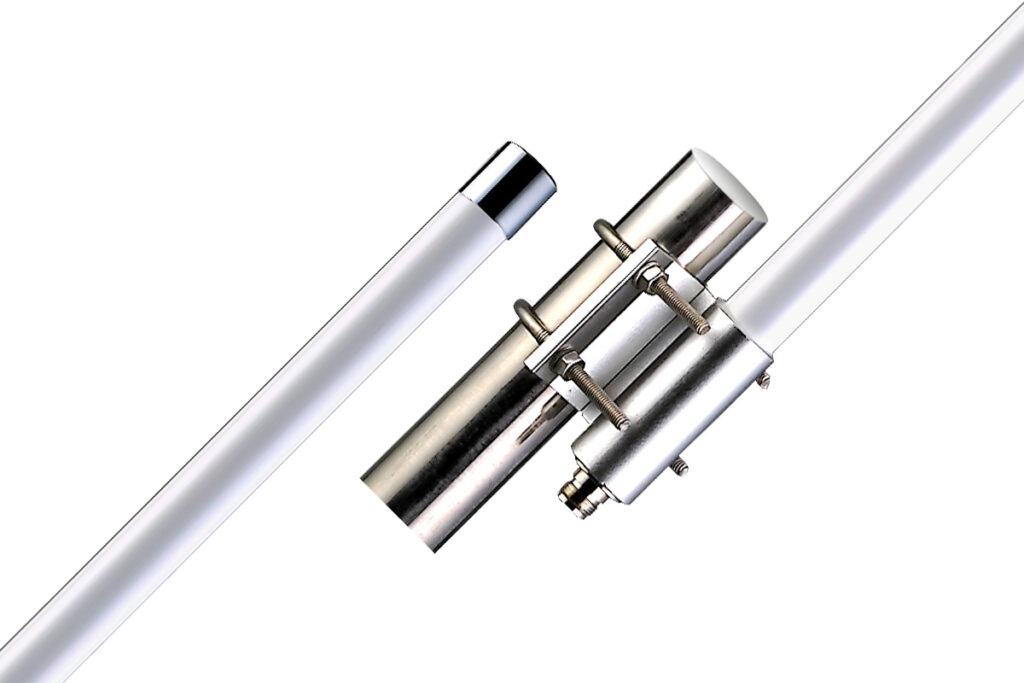

The UV resistant fiberglass housing enables the OMB antenna to be utilized in all kinds of harsh environments, making it more robust and safer than traditional whip antennas. It has been designed to withstand high wind load. The integrated mounting bracket is perfect for directly mounting the antenna onto a pole or a wall. The connector is an industry-standard N-type female. The connector can be customized subject to MOQ. Other frequencies and gains are available. Contact Taoglas regional sales office for more details.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, ISM/LoRA |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Wall/Pole |
| Termination Style | Connector |
| Antenna Connector Type | N Type |
| Length (mm) | 26 |
| Width (mm) | 26 |
| Height (mm) | 1475 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 902MHz - 928MHz |
| Connector Polarity | Normal |
| VSWR | 2 |
| Weight (g) | 870 |
| RoHS | Yes |
| Gain (Max) | 3.27 |
