DSGP.1575.15.4.A.02 15x15x4mm GPS L1 & GALILEO E1 Ceramic Patch

DSGP.1575.15.4.A.02

4.34dBi Peak Gain for GPS/GALILEO Band
SMT Direct Mount Ceramic Patch Antenna
Automotive TS16949 Approved
Dims: 15*15*4mm
RoHS Compliant

Image DSGP.1575.15.4.A.02

DSGP.1575.15.4.A.02

DSGP.1575.15.4.A.02 15x15x4mm GPS L1 & GALILEO E1 Ceramic Patch

Overview
Ceramic GPS L1 / GALILEO E1 passive patch antenna

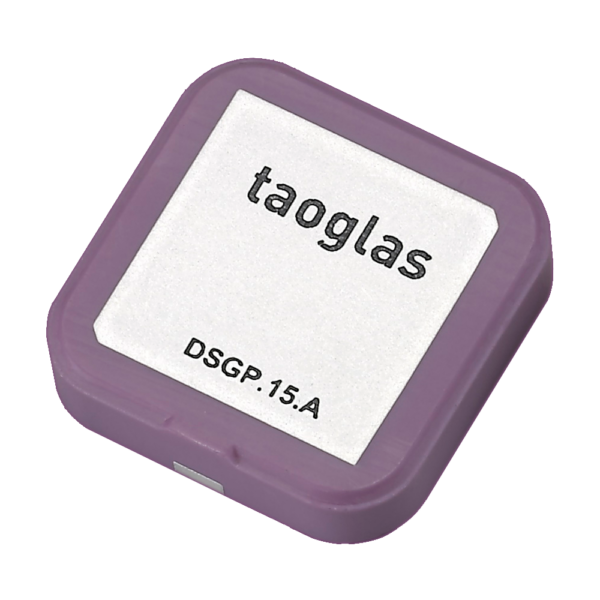

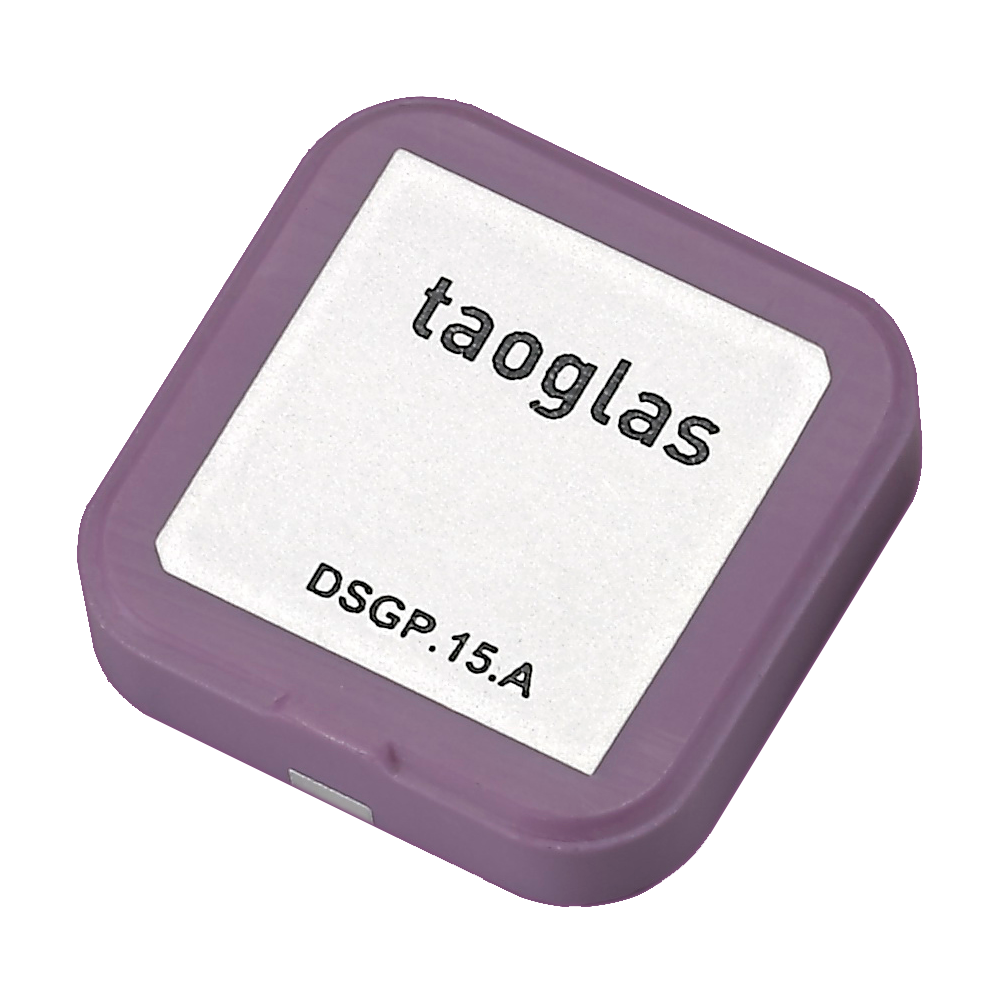

The DSGP.1575.15.4.A.02 is a ceramic GPS L1 / GALILEO E1 passive patch antenna. With a footprint of 15mm square and a height of just 4mm, this antenna is perfect for applications in compact telematics devices, vehicle tracking/fleet management systems, wearables, and navigation devices.

DSGP.1575 has been tuned on a 50*50mm ground plane, operating at 1575.42MHz with a 2.59dBi gain. The ceramic patch is mounted via SMT processes, suitable for high volume low-cost assembly.

This antenna is manufactured and tested in a TS16949 first tier automotive approved facility. Taoglas can custom-tune this antenna to specific device environments, subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 2.6
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity None
Cable Length (mm) n/a
Packaging Reel, Carton,
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 15
Width (mm) 15
Height (mm) 4
Weight (g) 3.3
