DSGP.1575.18 18*18*2mm GPS L1 & GALILEO E1 Ceramic Patch

DSGP.1575.18.2.A.02

2.4 dBi Peak Gain for GPS/GALILEO Band
SMT Direct Mount Ceramic Patch Antenna
TS16949 Approved
Dimensions: 18*18*2mm
RoHS and REACH Compliant

Image DSGP.1575.18.2.A.02

DSGP.1575.18.2.A.02

DSGP.1575.18 18*18*2mm GPS L1 & GALILEO E1 Ceramic Patch

Overview
IATF16949 Approved  GPS L1 / GALILEO E1 Passive Patch Antenna

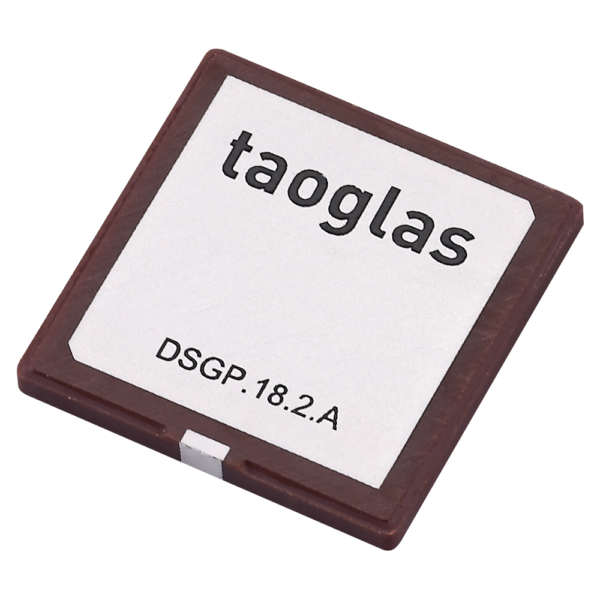

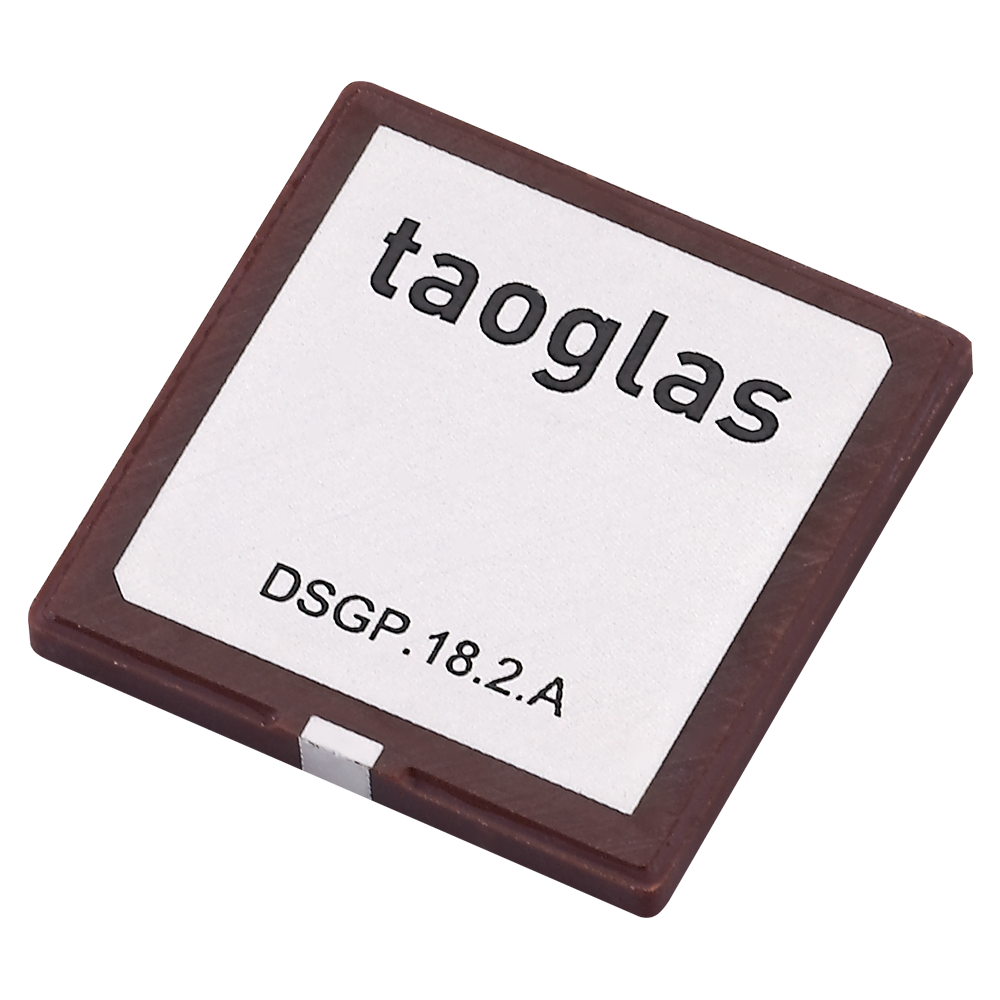

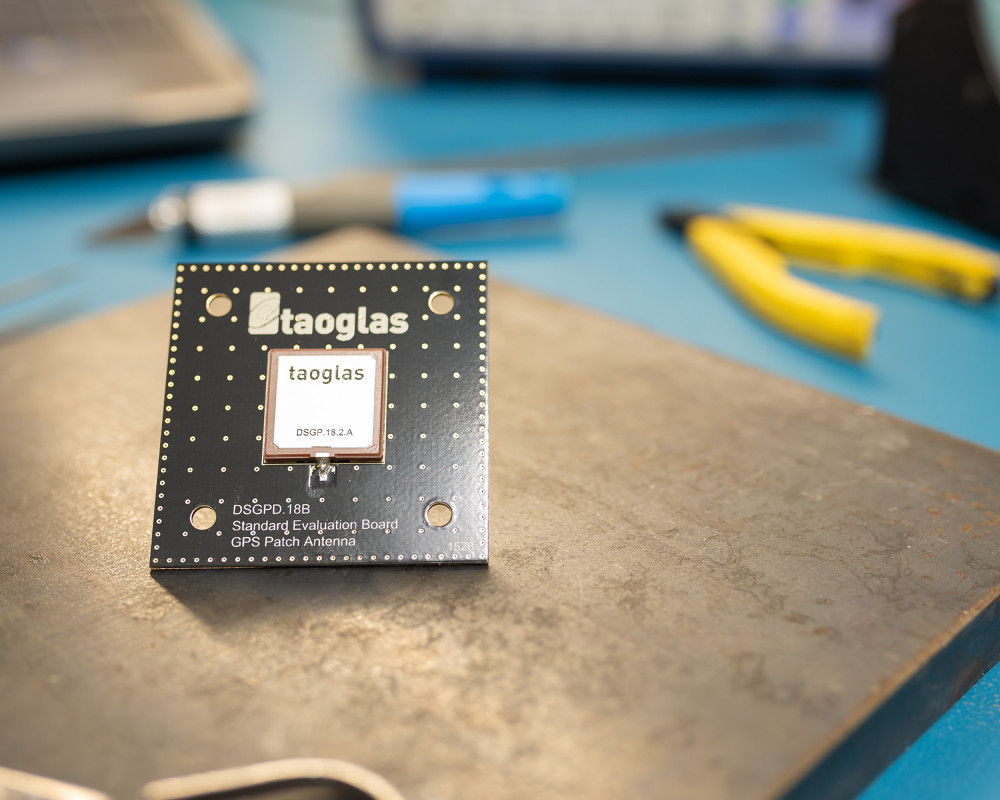

The DSGP.1575.18.2.A.02 is an IATF16949 Approved GPS L1 / GALILEO E1 Passive Patch Antenna.  It is ceramic, 18mm square, with a low profile of 2mm thickness. It is designed for applications in space-constrained navigation devices, vehicle tracking/fleet management systems, as well as telematics devices. The antenna has been tuned on a 50 x 50 mm ground plane, working at 1575.42MHz with a 2.4 dBi gain. The ceramic patch is mounted via SMT process, ideal for high volume low-cost assembly. It is manufactured and tested in a IATF16949 first tier automotive approved facility.

For further optimization to customer-specific device environments where ground-plane size is different, custom-tuned patch antennas can be supplied. For more details please contact your regional Taoglas sales office.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 2.4
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Reel, Carton,
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 18
Width (mm) 18
Height (mm) 2
Weight (g) 2.9
