2.73 dBi Peak Gain for GPS/GALILEO Band
Evaluation Board Dimensions: 70*70mm
SMD Direct Mount Ceramic Patch Antenna
Automotive IATF16949 Approved
RoHS and REACH compliant

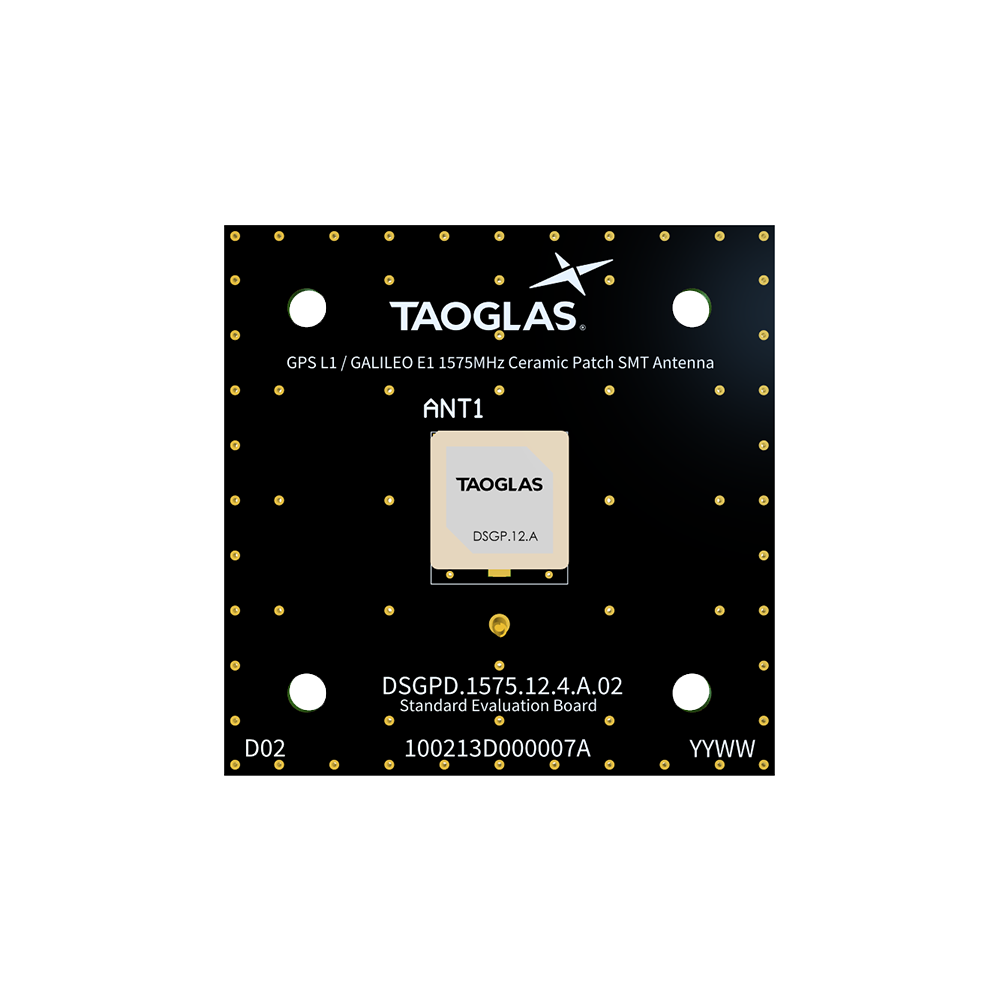

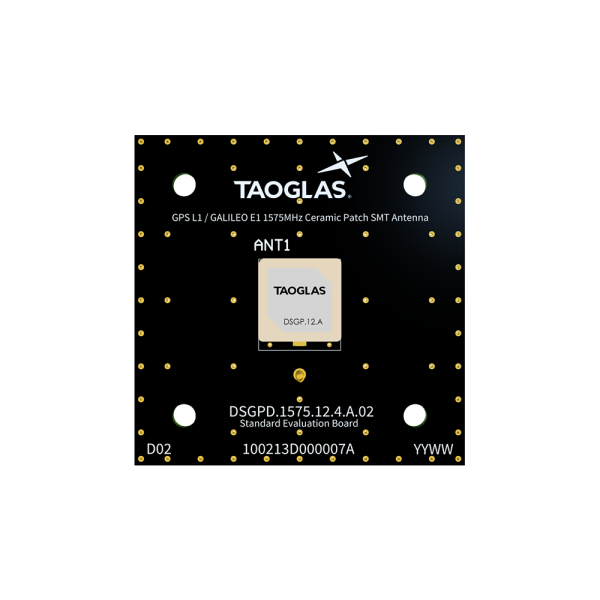

Evaluation Board for DSGP.1575.12 12*12*4mm GPS L1 & GALILEO E1 Ceramic Patch
DSGPD.12A
DSGPD.12A
Evaluation Board for DSGP.1575.12 12*12*4mm GPS L1 & GALILEO E1 Ceramic Patch
Overview
Evaluation Board for DSGP.1575.12 12*12*4mm GPS L1 & GALILEO E1 Ceramic Patch
The DSGP.1575.12.4.A.02 is a ceramic GPS L1 / GALILEO E1 passive patch antenna. 12mm square and with a height of just 4mm, this antenna is perfect for applications in compact telematics devices, vehicle tracking/fleet management systems, wearables and navigation devices. The antenna has been tuned on a 50*50mm ground plane, working at 1575.42MHz with a 2.73dBi gain. The ceramic patch is mounted via SMT process, suitable for high volume low-cost assembly. The antenna is manufactured and tested in a TS16949 first tier automotive approved facility. Small antennas should ideally be custom-tuned for the device environment, Taoglas offers this service subject to NRE and MOQ. For more details please contact your regional Taoglas sales office.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | DSGP.1575.12.4.A.02 |
| Technology | Evaluation Boards, C-V2X |
| Width (mm) | 50 |
| Length (mm) | 50 |
| Height (mm) | 1 |
| Materials | Ceramic |
