Evaluation Board for GPS/GLONASS/GALILEO 2mm Low Profile Embedded 35mm Patch Antenna

CGGPD.35.2.A

4.27dBi Peak Gain for GPS/GALILEO Band
4.63dBi Peak Gain for GLONASS Band
Evaluation Board Dimensions: 70*70mm
Pin Type, Low Profile, Ceramic Patch Antenna
Manufactured in an IATF16949 Approved Facility
RoHS & REACH Compliant

Taoglas can also provide different pin lengths for these antennas, subject to potential NRE and MOQ. For more details please contact your regional Taoglas sales office.

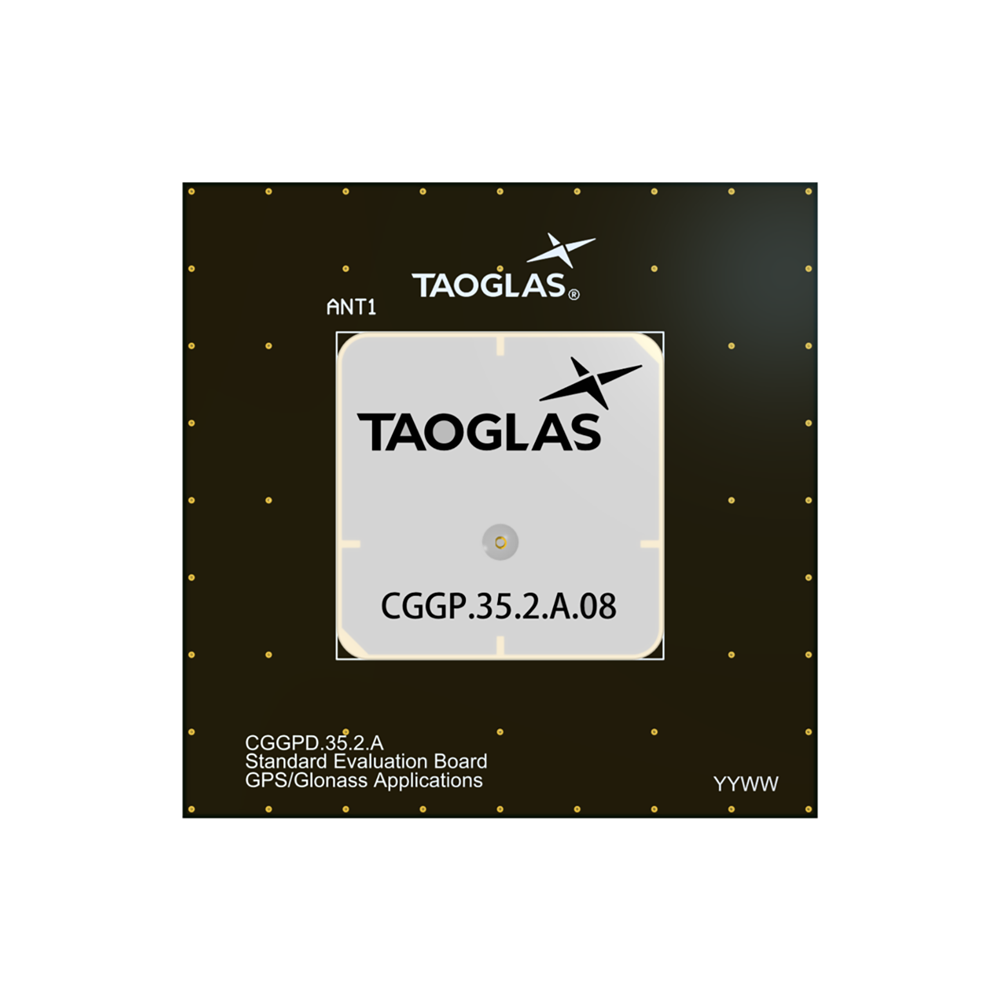

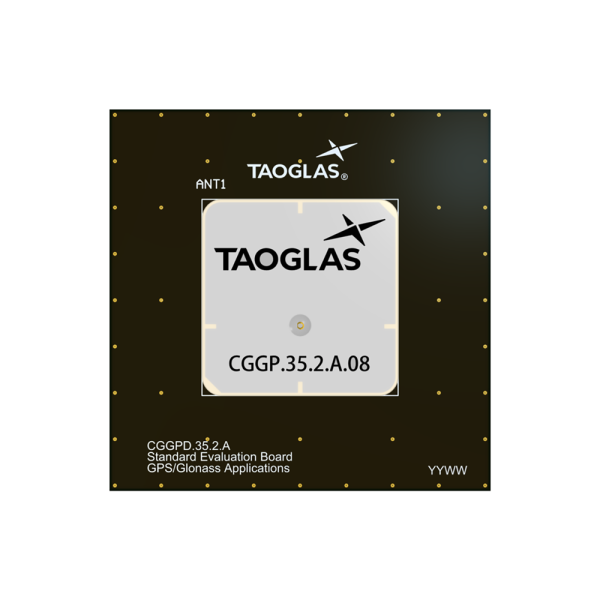

Image CGGPD.35.2.A

CGGPD.35.2.A

Evaluation Board for GPS/GLONASS/GALILEO 2mm Low Profile Embedded 35mm Patch Antenna

Overview

Evaluation Board for Embedded GPS antenna for Automotive

The CGGP.35.2.A.08 is a low profile ceramic GPS/GLONASS/GALILEO passive patch antenna with a thickness of 2mm. It was designed for vehicle navigation applications as well as other M2M/IoT devices. Typically applicable industries are transportation, defense, marine, agriculture, and navigation. The antenna has been tuned on a 70*70mm ground plane, working at 1575.42MHz and 1602MHz, with 4.27dBi gain and 4.63dBi gain, respectively.

IATF16949 Automotive Approved GPS Antenna

The low profile design makes this antenna perfect for applications where space is limited. It can be easily through-hole mounted on PCB via pin. The double-sided adhesive on the bottom of the patch helps to keep it in place while undergoing mounting. The CGGP.35.2.A.08 is manufactured and tested in an IATF16949 first tier automotive approved facility. For large volume GPS/GLONASS/GALILEO projects where performance is paramount, tuning for customer-specific device environments and ground-plane sizes is needed, so custom tuned patch antennas should always be used.

Taoglas can also provide different pin lengths for these antennas, subject to potential NRE and MOQ. For more details please contact your regional Taoglas sales office.
