Evaluation Board for Wide-Band LTE/Cellular/CDMA SMD Antenna
LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE
698-960MHz, 1400-2700MHz
High Efficiency Wide-Band SMD Antenna
Evaluation Dimensions: 120 x 45mm
First Tier Automotive TS16949 Approved
Evaluation Board for Samurai PA.700J 4G/3G/2G SMD PIFA Antenna
PAD.700.J
PAD.700.J
Evaluation Board for Samurai PA.700J 4G/3G/2G SMD PIFA Antenna
Overview

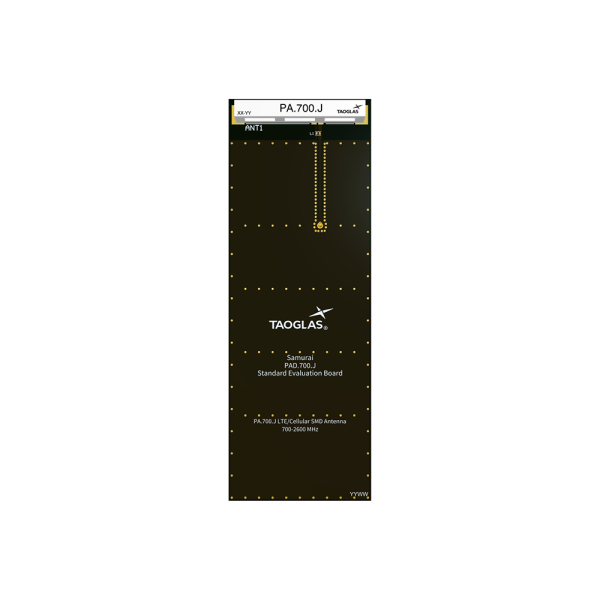

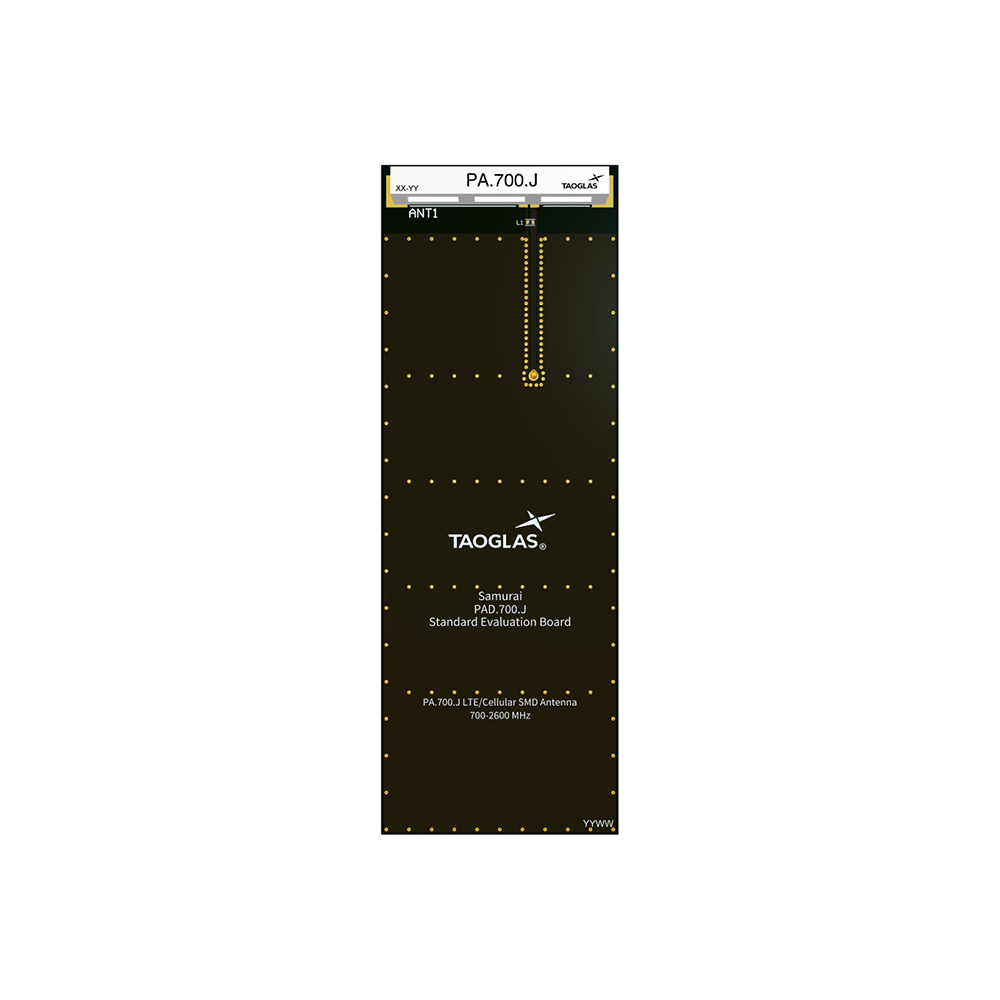

Evaluation Board for Samurai PA.700J 4G/3G/2G SMD PIFA Antenna
This revolutionary patent-pending Samurai PA.700.J is a 4G/3G/2G high-efficiency SMD ceramic antenna operating at 700MHz to 960MHz, 1400MHz to 2600MHz to cover all LTE frequency bands applied in Japan. It uses high-grade ceramics to deliver the highest efficiencies on all bands on the shortest device ground-plane lengths possible. The exceptional wide-band response means it covers all standardly used operation bands around the globe.
Technical Specification
| Name | Value |
|---|---|
| For Use With/Related Products | PA.700J |
| Technology | Evaluation Boards, UWB |
| Width (mm) | 120 |
| Length (mm) | 45 |
| Height (mm) | 0.75 |
| Materials | Ceramic |
