GA.110 4G/3G/2G LTE Flexible Magnetic Whip Antenna, 1M RG-174


Wide Band High Gain Magnetic Mount Whip Antenna
698MHz to 960MHz, 1575.42MHz, 1710MHz to 2700MHz, 3500MHz
Robust High Strength Super Magnet Mount
1M RG-174 SMA(M)
Typical 40% Efficiency and 3dBi Peak Gain
Base Diameter 50mm
Whip Length 298mm

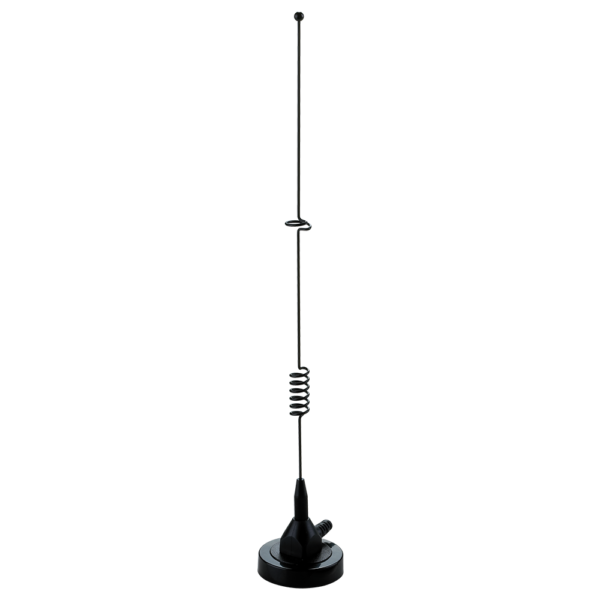

Image GA.110.101111


GA.110 4G/3G/2G LTE Flexible Magnetic Whip Antenna, 1M RG-174

Wideband High Gain Magnetic Mount Whip Antenna

The GA.110 magnetic ultra-wideband cellular antenna delivers stable high omnidirectional gain and efficiencies across all common 4G, 3G and 2G global cellular bands from 700 MHz to 3.5 GHz.

This high performing antenna can be used for all cellular devices and will not require changing antennas when deploying from country to country or technology to technology like CDMA to GSM or 4G to 3G. Being magnetic mount it is designed to be mounted on a ground plane for optimal performance. A reliable return loss of <10dB when mounted on a metal plate ensures it complies with the industry standards set by module makers and networks worldwide. Taoglas recommends using the antenna with 1m cable length or less and can provide customized connectors and cable lengths upon customer requirements.

The strong magnet base is extremely stable and robust, using only high-quality neodymium magnets for a secure magnetic mount to ensure a high pull force to disengage.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 600-4000MHz
Connector Polarity None
Cable Length (mm) 1000
Packaging PE Bag, Carton
IP Rating IP44
RoHS Yes
Gain (Max) 2.5
Length (mm) 50
Width (mm) 50
Height (mm) 298
Weight (g) 124.5
