FXP14 5G/4G Cellular Flexible PCB with 100mm 1.13 & IPEX MHFI Connector

FXP14.07.0100A

Flexible PCB Antenna
Dimensions: 70x20x0.2mm
Connector: I-PEX MHF® I (U.FL Compatible)
Cable: 100mm of Ø1.13
Peel and Stick Mounting
3M 467 Adhesive
CE Certified
RoHS & REACH Compliant

Image FXP14.07.0100A

FXP14.07.0100A

FXP14 5G/4G Cellular Flexible PCB with 100mm 1.13 & IPEX MHFI Connector

Overview

The Taoglas FXP14 Flexible Wideband Cellular Antenna covers all world-wide 5G/4G bands. The antenna has been designed in a flexible material with a rectangular form-factor and cable connection for an easy installation.

The antenna works on different plastic materials and thickness. We have selected a piece of ABS with 2 mm of thickness as a baseline for testing.
Typical Applications Include:

• Security
• Remote Monitoring
• Connected Health

The antenna has been designed using a super thin flexible polymer substrate with a rectangular form-factor and cable connection for ease of installation. The antenna radiates well on different plastic materials and thickness. We have selected ABS plastic mounting with 2 mm of thickness as a baseline for testing.

Best-in-class efficiency on lower and upper bands (above 40%) make it an ideal antenna for devices where space for onboard SMD cellular antennas is not available.
The antenna is mounted via automotive quality 3M 467 adhesive and has excellent reliability. The FXP14 has its own ground-plane, therefore it does not need to connect to the ground-plane of the main-board of the device for improved radiation efficiency.

For more information or installation instructions, please contact your regional Taoglas customer support team.

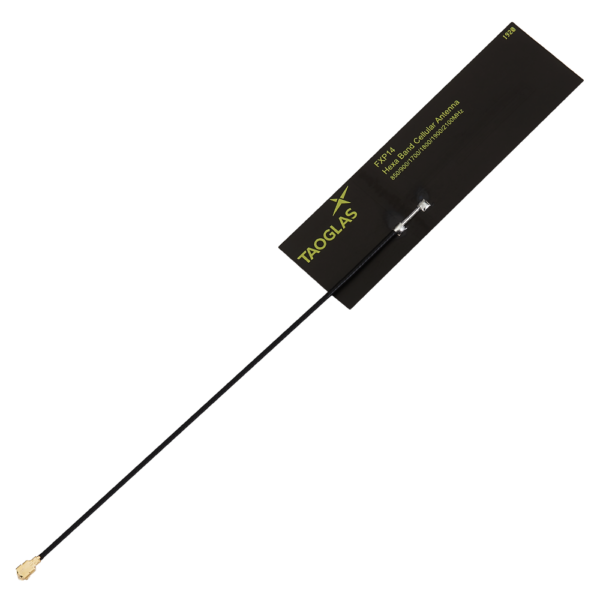

Image FXP14.07.0100A
