FXP14R 3G/2G Cellular Flexible PCB, with diagnostic resistor, 100mm Ø1.13, I-PEX MHF® I (U.FL)

FXP14R.A.07.0100A

Flexible PCB Hexa-band Antenna
AntD© Shunt 10k Ohm Chip Resistor Inside
850/900/1700/1800/1900/2100MHz
100mm, Ø1.13 cable, I-PEX MHF® I (U.FL comp)
Dims: 70*20*0.1mm

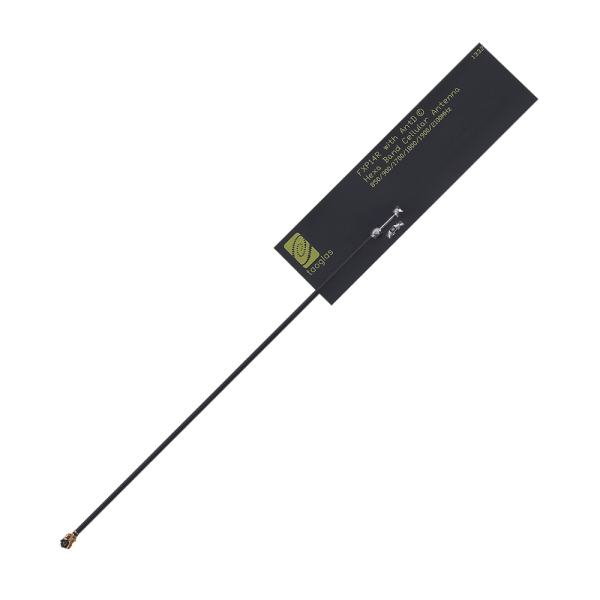

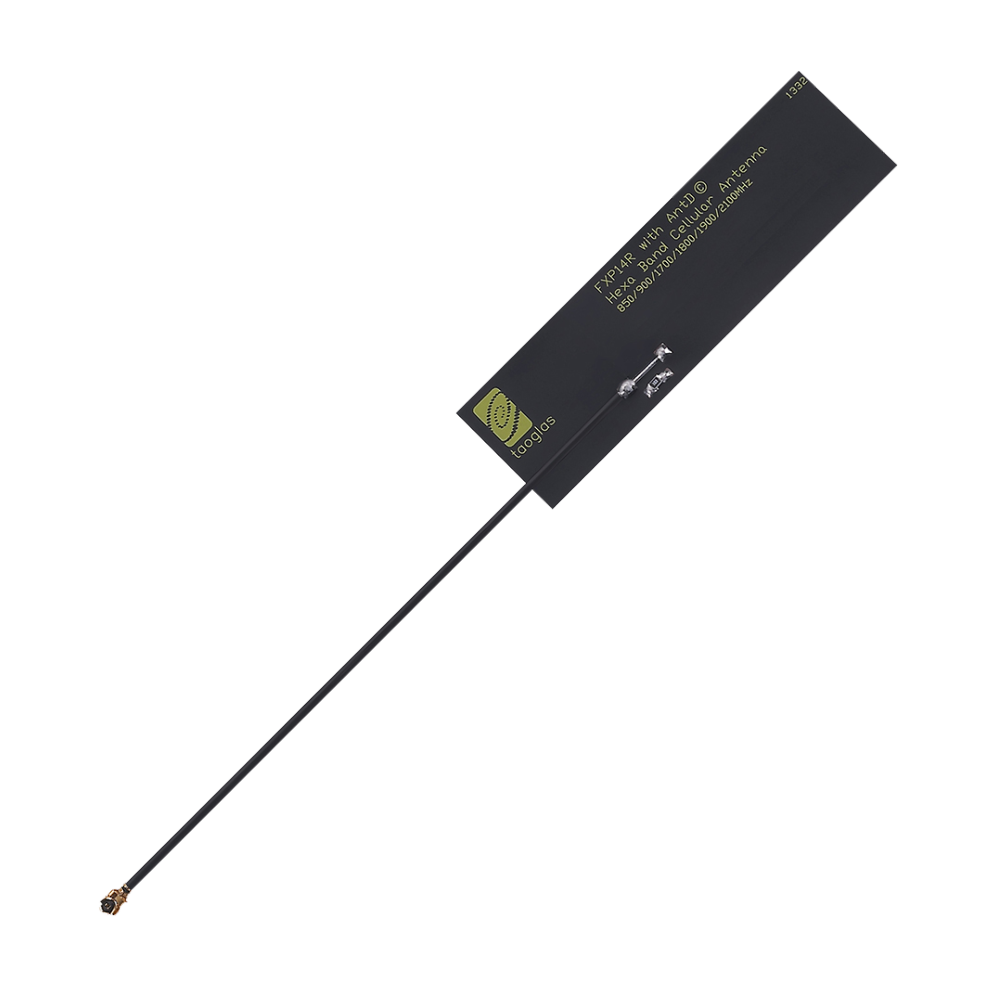

Image FXP14R.A.07.0100A

FXP14R.A.07.0100A

FXP14R 3G/2G Cellular Flexible PCB, with diagnostic resistor, 100mm Ø1.13, I-PEX MHF® I (U.FL)

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style Flex PCB
Gain 2.5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 850MHz To 2100MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging Carton
VSWR 0
Length (mm) 70
Width (mm) 20
Height (mm) 0.1
Weight (g) 0.1
