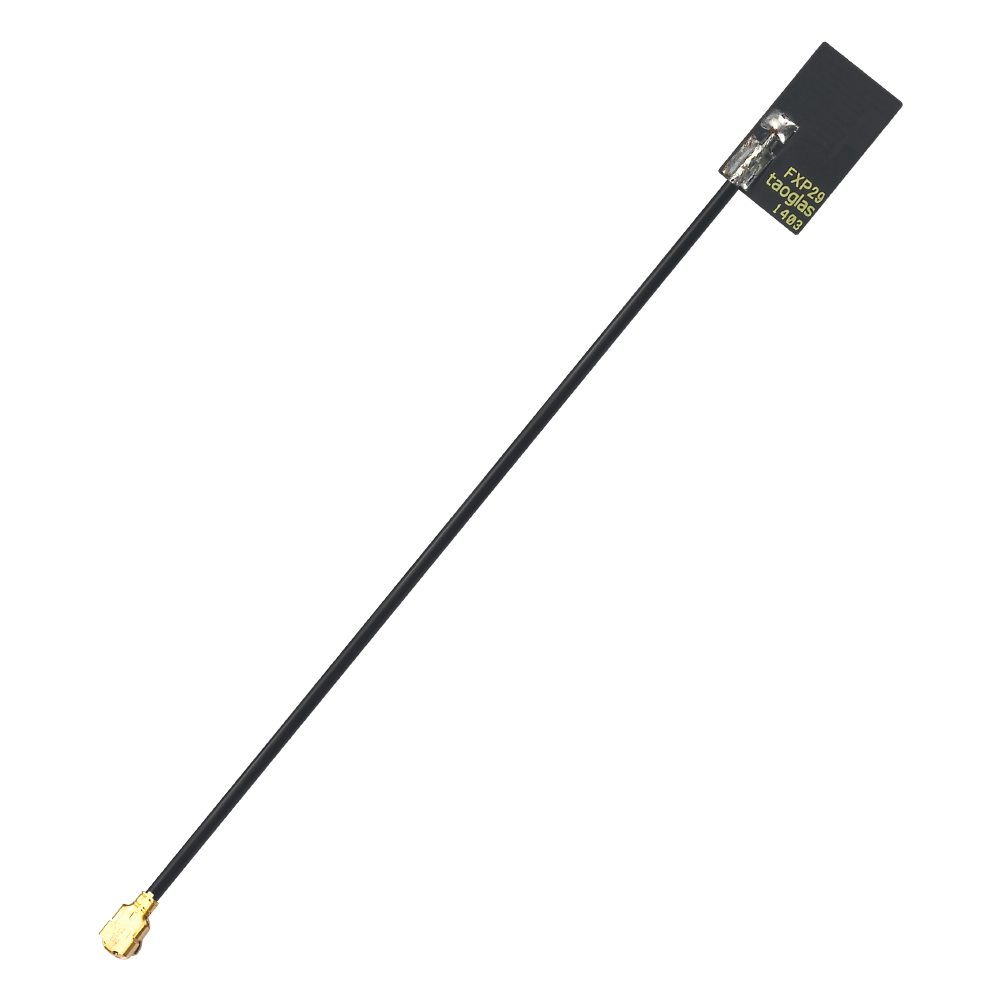

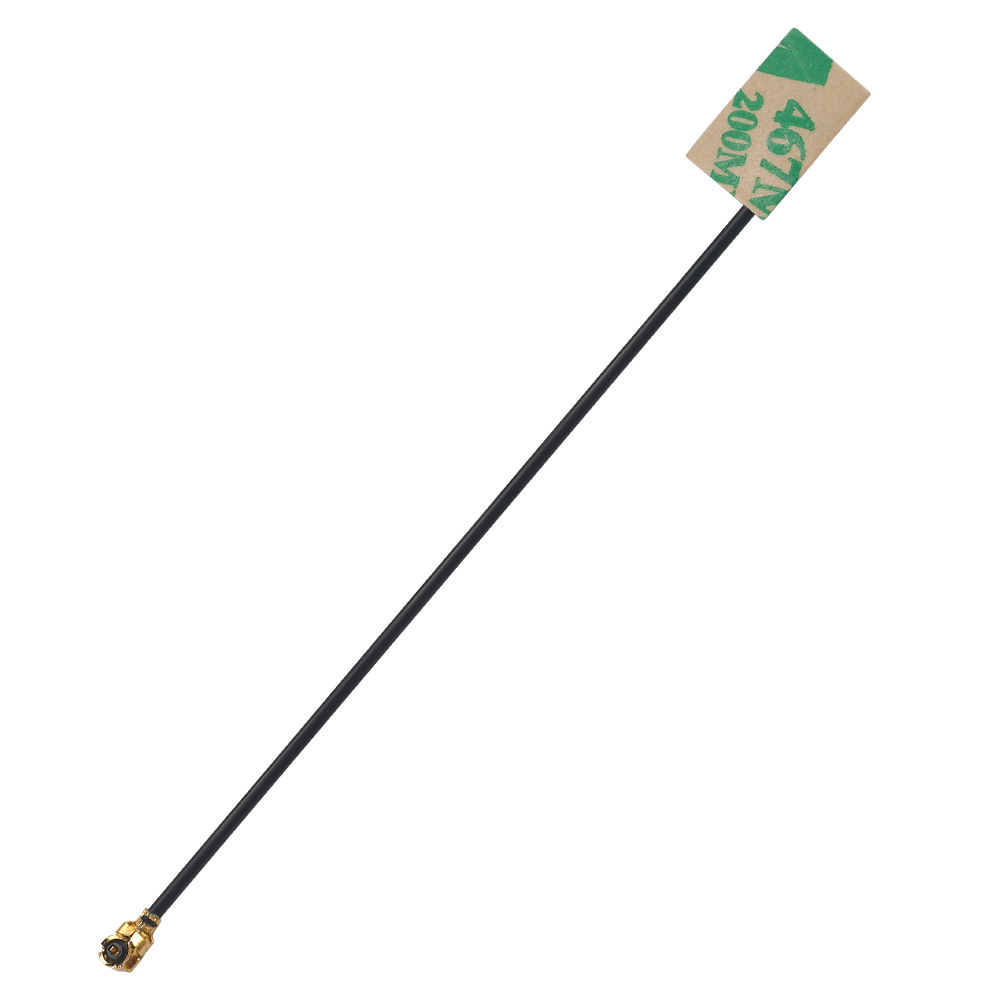

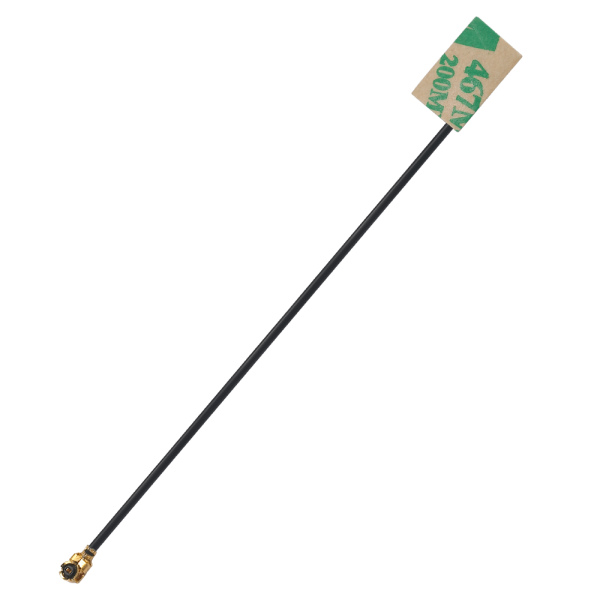

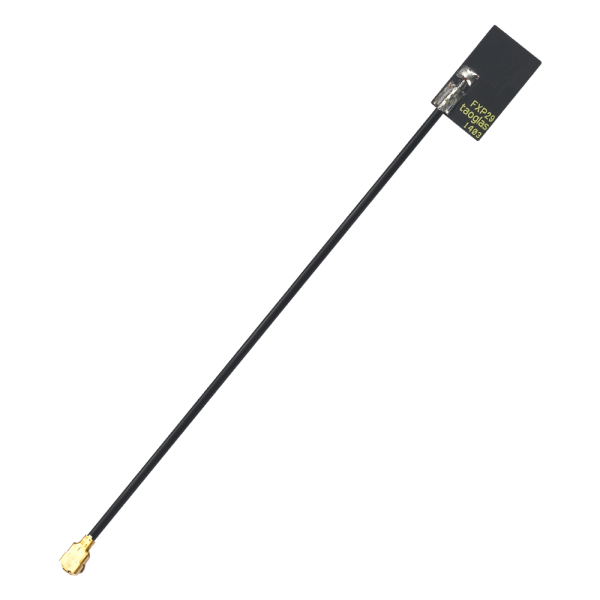

3G UMTS/HSPA+ Flexible PCB Antenna
1920-2170MHz
I-PEX MHF® I (U.FL comp) – 70mm Ø1.13mm
12.7mm*8.4mm*0.24mm
FXP29 3G 2100MHz Flexible Antenna, 70mm Ø1.13mm, I-PEX MHF® I (U.FL)
FXP29.07.0070A
FXP29.07.0070A
FXP29 3G 2100MHz Flexible Antenna, 70mm Ø1.13mm, I-PEX MHF® I (U.FL)
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, Cellular |
| Mechanical Style | Flex PCB |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHF® I (U.FL) |
| Length (mm) | 12.7 |
| Width (mm) | 8.4 |
| Height (mm) | 0.24 |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 1920MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| VSWR | 2:1 |
| Weight (g) | 0.42 |
| RoHS | Yes |
| Gain (Max) | 1.5 |
