AGVB.25A – Accura Series GPS L1 / L5 & BeiDou B1 Active Stacked Patch Antenna


Single Feed Stacked Patch Assembly
Covering Bands
– GPS L1 & L5
– BeiDou B1
Low Axial Ratio
Tuned for Centre Positioning on a 70*70mm Ground Plane
Dimensions: 25*25*12mm
Cable: 60mm of Ø1.13mm
Connector: I-PEX MHF® I (U.FL Compatible)
RoHS and REACH Compliant

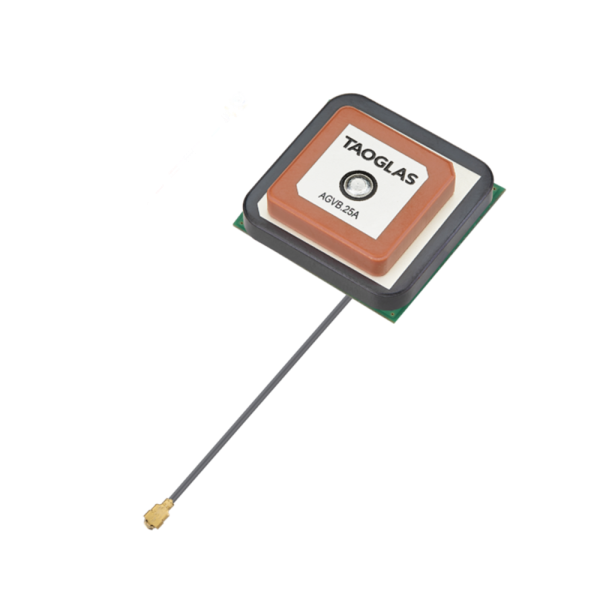

Image AGVB.25A.07.0060A


AGVB.25A – Accura Series GPS L1 / L5 & BeiDou B1 Active Stacked Patch Antenna


Accura Series GPS L1 / L5 & BeiDou B1 Active Stacked Patch Antenna

The Taoglas Accura AGVB.25A, is a multi-band GPS, BeiDou/Compass and IRNSS, high-performance GPS L1 / L5 & BeiDou B1 Active Stacked Patch Antenna for high precision GPS and BeiDou accuracy and fast positioning. It utilizes a 25*25*8mm advanced dual stacked ceramic patch antenna with optimized gain for GPS L1/L5, Galileo, IRNSS and BeiDou bands. Integration of IRNSS allows for better navigation accuracy and enables compliance with AIS-140 for tracking devices in India.

The AGVB.25A has been designed for in-device mounting with a small size of just 25*25*12mm, it can fit in some of the most compact customer devices.

This compact antenna exhibits excellent radiation patterns on both GPS L1/L5 bands and with a low noise figure to preserve signal quality helps minimize time to first fix. It also features excellent out-of-band rejection to prevent out-of-band signals from overdriving or damaging its LNAs.

Typical Applications Include:

– RTK – Wearables – Transportation – Agriculture
– Navigation – Security – Autonomous Vehicles

The AGVB.25A has been tuned and tested on a 70 x 70 mm ground plane and exhibits omnidirectional radiation patterns at both bands.

The cable and connector are fully customizable, contact your regional Taoglas customer support team to request these services or additional support to integrate and test this antenna’s performance in your device.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 12
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 1176.45MHz - 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 60
Packaging Carton
GNSS Type Active GNSS
GNSS Bands L1/L5
Length (mm) 25
Width (mm) 25
Height (mm) 11.92
Weight (g) 24
