Guardian MA961 White 4-in-1 2*LTE MIMO, 2*Wi-Fi MIMO Adhesive Mount Antenna

MA961.W.A.BICG.002

Low-Profile Housing
2* LTE MIMO 698-960MHz/1710-2170MHz/ 2490-2690MHz/ 3300-3600MHz
2* Wi-Fi MIMO 2.4GHz/5.8GHz
Worldwide 4G Bands including 3G and 2G
IP67 Waterproof Resistant Enclosure
Dims: 146*134*20mm

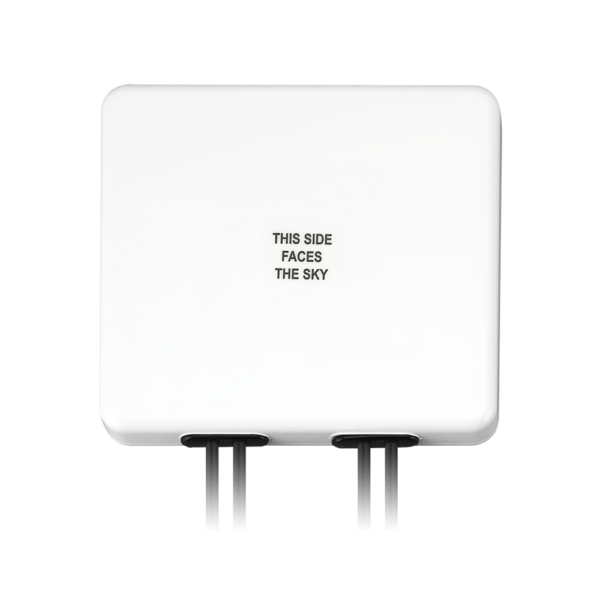

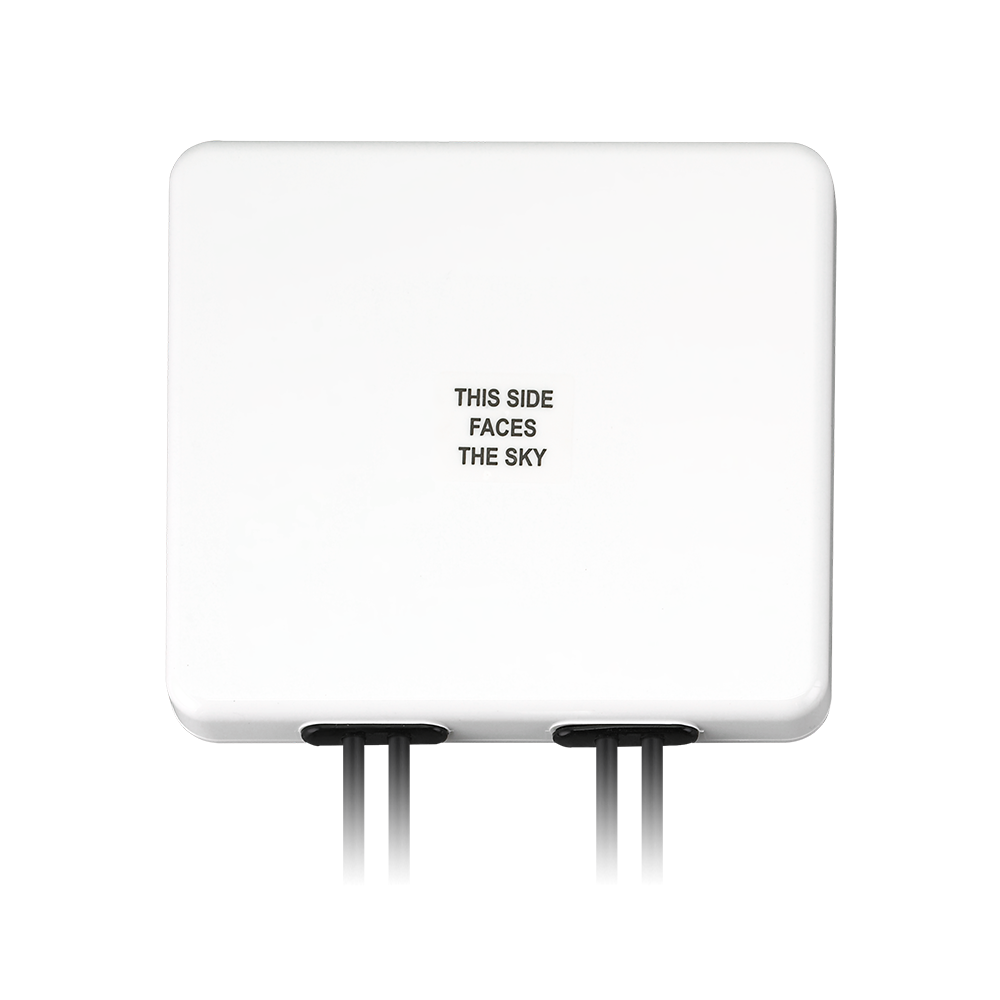

Image MA961.W.A.BICG.002

MA961.W.A.BICG.002

Guardian MA961 White 4-in-1 2*LTE MIMO, 2*Wi-Fi MIMO Adhesive Mount Antenna

Overview

The MA961 Guardian is a next-generation combination antenna. The first-panel antenna worldwide designed for IoT Gateway and Router devices. It is a low profile 4in1 wall and adhesive mount antenna. This unique product delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/ 1800MHz/2600MHz/3500MHz and dual-band Wi-Fi. It is a heavy-duty, fully IP67 waterproof external M2M antenna for use by RF professionals in IoT Gateway and Routers, HD Video Streaming, Transportation and Remote Monitoring Applications. This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz bands and dual 2.4/5.8GHz Wi-Fi. It enables designers to cover a wide range of technologies by installing a single antenna. 4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Taoglas also takes care to have high isolation among these antennas to prevent self-interference. Low loss cables used to keep efficiency high over long cable lengths. The housing is made of durable ASA, is IP67 waterproof and comes with 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle or building. The MA961 comes with 3 meters TGC-200 cable as standard. Customized cables and connector versions are also available.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 5.2
Length (mm) 146
Width (mm) 134
Height (mm) 20
Weight (g) 586
