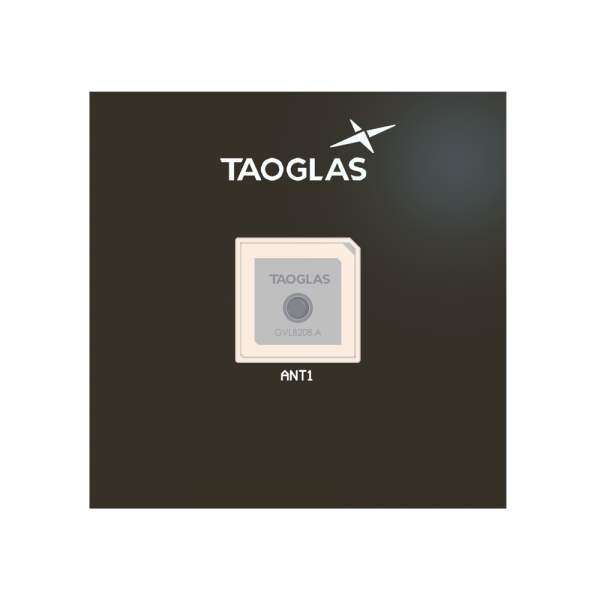

Evaluation board of GVLB208.A with 5pcs Antenna

Evaluation board of GVLB208.A with 5pcs Antenna

The Taoglas GVLB208.A is a high-performance, single-feed stacked patch antenna engineered to support next generation multi-frequency Global Navigation Satellite System (GNSS) applications. Designed in an ultracompact 20 x 20 x 8 mm form factor, this ceramic antenna provides robust coverage of the L1 and L5 bands, enabling enhanced positioning accuracy, improved multipath rejection, and superior performance in challenging environments.

With its Right-Hand Circular Polarization (RHCP), stable gain characteristics, and optimized efficiency across key GNSS constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, IRNSS, and SBAS—the GVLB208.A is suited for high-precision navigation, timing, asset tracking, and industrial applications. Its pin-mount design allows straightforward integration with host PCBs, while compliance with RoHS and REACH standards ensures broad applicability in commercial and industrial deployments.

Typical Applications Include:

• Autonomous Vehicles
• Precision Agriculture
• Surveying and Mapping
• UAVs and Drones
• Timing and Synchronization
• Asset Tracking and Security
• Wearables and Personal Navigation Devices
