GW.48.A151W 2.4/5.8-7.125GHz Dual Band White Rubber Duck Dipole Antenna with RP-SMA(M)


2.4/5.8-7.125GHz Dual Band Operation
UV Resistant, Robust TPEE Housing
IP65 Waterproof Enclosure
IK05 Impact Rated Enclosure
1.82 dBi Peak Gain @ 2.4GHz
3 dBi Peak Gain @ 5.8GHz
Connector Mount: RP-SMA(M)
Dimensions: 89.5mm x 7.5mm Diameter
RoHS compliant

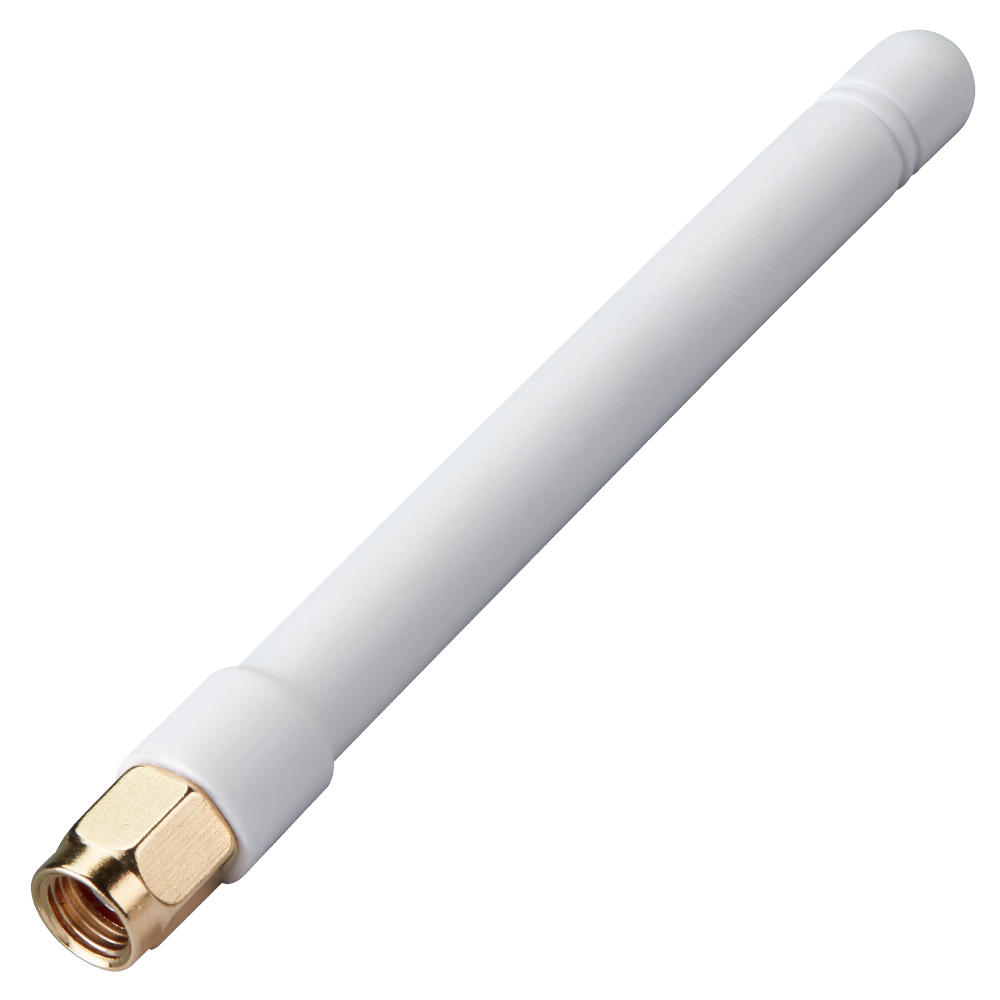

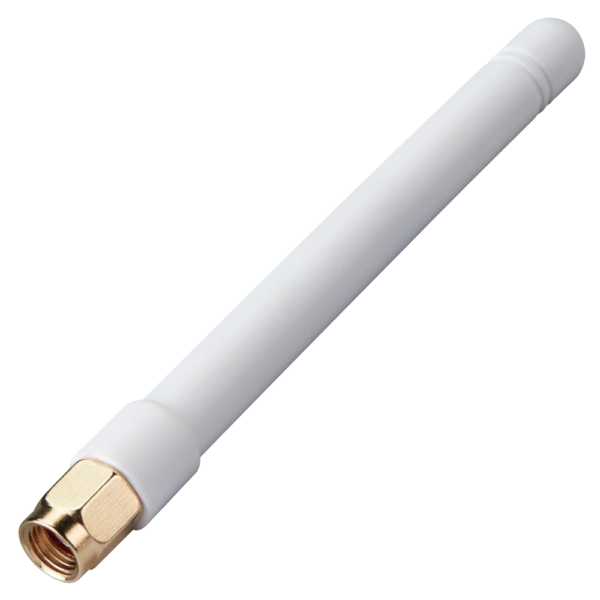

Image GW.48.A151W


GW.48.A151W 2.4/5.8-7.125GHz Dual Band White Rubber Duck Dipole Antenna with RP-SMA(M)

GW.48.A151W 2.4/5.8-7.125GHz Dual Band White Rubber Duck Dipole Antenna with RP-SMA(M)

GW.48.A151W 2.4/5.8-7.125GHz  RP-SMA(M) mount dipole antenna is designed for superior performance and reliability. With an omnidirectional radiation pattern and excellent efficiency and gain on both 2.4 GHz and 5.8-7.125 GHz bands.

At just 89.5mm in height, the GW.48 is a great smaller form factor solution for Bluetooth and Wireless LAN networks. The IP67 rated enclosure makes it suitable for both indoor and outdoor applications. The flexible IK05 rated TPEE enclosure is impact resistant and durable and has the added benefit of UV resistance, allowing it to meet the needs of demanding outdoor applications.

The GW.48 has a 1.82 dBi Peak Gain at 2.4GHz and 3 dBi Peak Gain @ 5.8GHz making it a cost-effective, high-performing choice for any outdoor application operating at 2.4 or 5.8-7.125 GHz. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when installed. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.

Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type RP-SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4 / 5.8 / 7.125GHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 5.64
Wi-Fi Bands 2.4/5.8/7.125GHz
Length (mm) 9.6
Width (mm) 9.6
Height (mm) 89.5
Weight (g) 9.5
