2.4/5.8GHz Band Operation
High Efficiency up to 80%
Hinged RP-SMA (M) Connector
Height: 198mm
Diameter: 13mm
RoHS & Reach Compliant
GW.51.5153 – 5dBi 2.4/5.8GHz Wi-Fi® Terminal Mount Dipole Antenna
GW.51.5153
GW.51.5153
GW.51.5153 – 5dBi 2.4/5.8GHz Wi-Fi® Terminal Mount Dipole Antenna
Overview
2.4/5.8GHz Wi-Fi® Terminal Mount Dipole Antenna

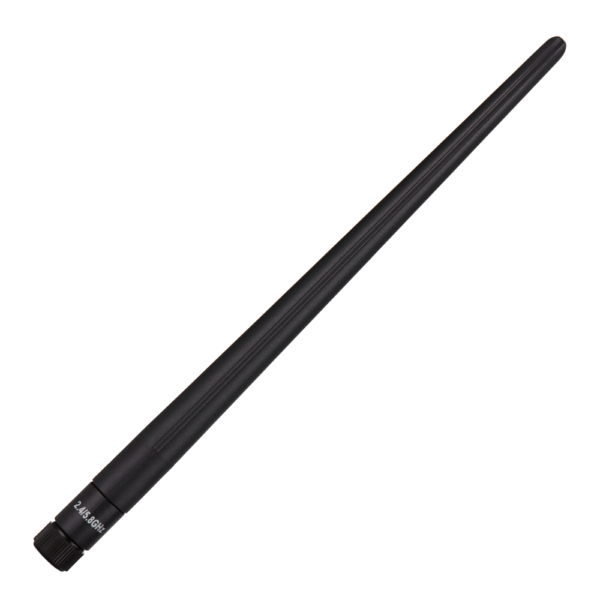

The Taoglas GW.51.5153 is 2.4/5.8GHz Wi-Fi®, Terminal Mount, Dipole Antenna. Its height is 198mm and is 13mm in diameter and can be mounted Straight or Right Angled. It is ideal for applications such as Bluetooth®, BLE, ZigBee® and Wireless LAN. The GW.51 has been designed for superior performance and reliability, with an omnidirectional radiation pattern and extremely high efficiency and gain at 2.4 & 5.8GHz.
Typical applications include:
- Smart Home
- Gateways/Routers
- Agriculture
The GW.51 has up to 5dBi Peak making it a cost-effective, high-performing choice for any indoor or outdoor application operating at 2.4 & 5.8GHz. Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when installed. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Wi-Fi®/Bluetooth® |
| Wi-Fi Bands | 2.4/5.8/7.125GHz |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | RP-SMA |
| Length (mm) | 13 |
| Width (mm) | 13 |
| Height (mm) | 198 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2.4/5.8/7.125GHz |
| Connector Polarity | Reverse |
| VSWR | <2 |
| Weight (g) | 22.5 |
| RoHS | Yes |
| Gain (Max) | 2.7 |
