169 MHz Helical Monopole Antenna
Quarter wave-length monopole
Low Profile
Dims HA.10.A: L=25.5 Ø2.8mm
Dims HAD.A.10 EVB: 88*160*6.35mm
Dims HAD.B.10 EVB: 166*80*6.35mm
HA.10 169MHz/340MHz Helical Antenna [169MHz when 2 are in parallel]
HA.10.A
HA.10.A
HA.10 169MHz/340MHz Helical Antenna [169MHz when 2 are in parallel]
Overview

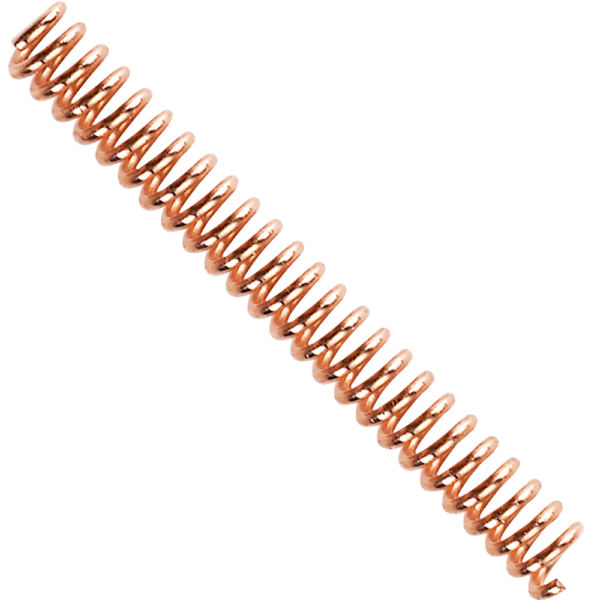

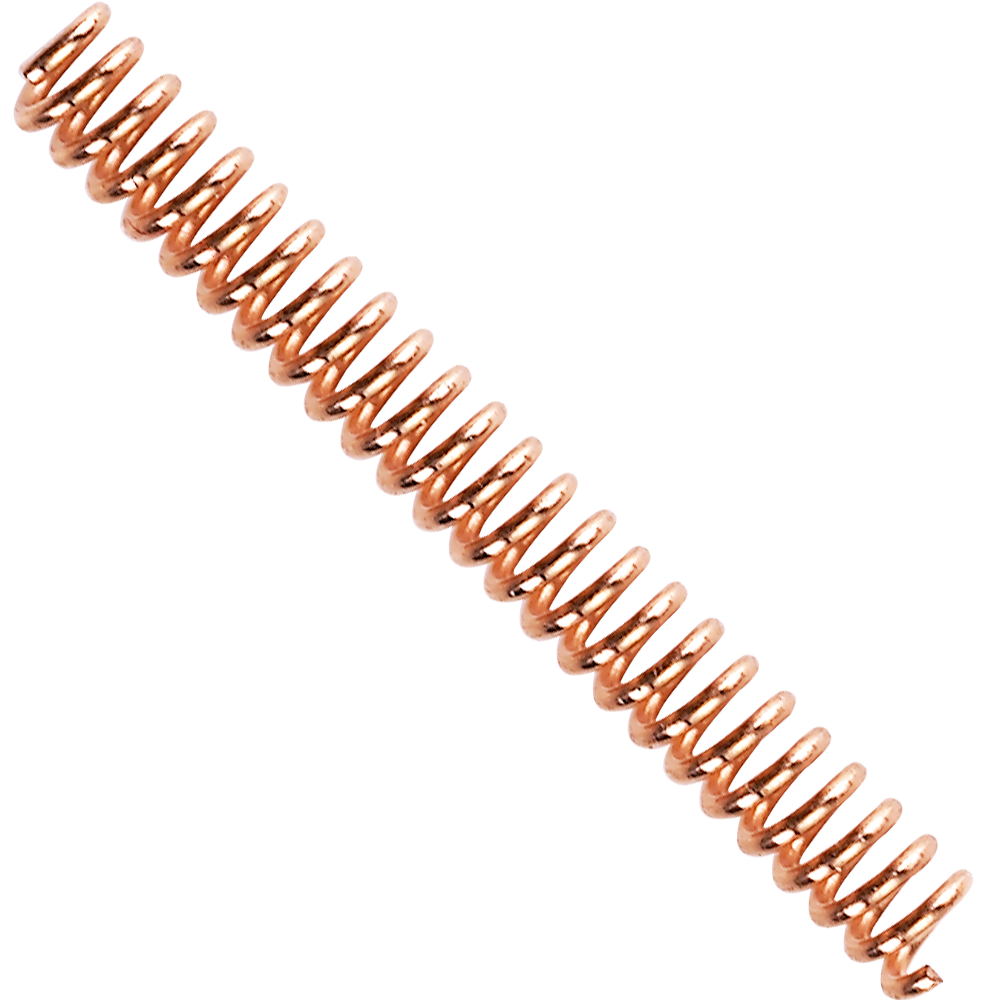

The HA.10.A antenna is a 169MHz ISM band quarter wave-length monopole helical. Small and compact in dimensions, it is ideal for typical 169 MHz applications such as;
- Wireless M-Bus metering
- Remote asset monitoring
- Alarms
- Paging systems
- Private mobile radio systems
Taoglas offers a testing and tuning service for these antennas. Please contact your regional Taoglas office for support.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, ISM/LoRA |
| Mechanical Style | Coil |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | SMD/SMT |
| Termination Style | SMD/SMT |
| Antenna Connector Type | N/A |
| Length (mm) | 2.8 |
| Width (mm) | 2.8 |
| Height (mm) | 25.5 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 169MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | None |
| VSWR | 2:1 |
| Weight (g) | 4 |
| RoHS | Yes |
| Gain (Max) | 2 |
