Hercules IS.04 868MHz 2dBi Permanent Mount Antenna, 3m RG-174

IS.04.B.301111

Hercules Screw-mount
2dBi ISM 868MHz Band
Cable: 3m RG174
Connector: SMA(M)
No Ground Plane Required
Dimensions: 29*49mm (Diameter)
IP65 Rated Waterproof
RoHS & REACH Compliant

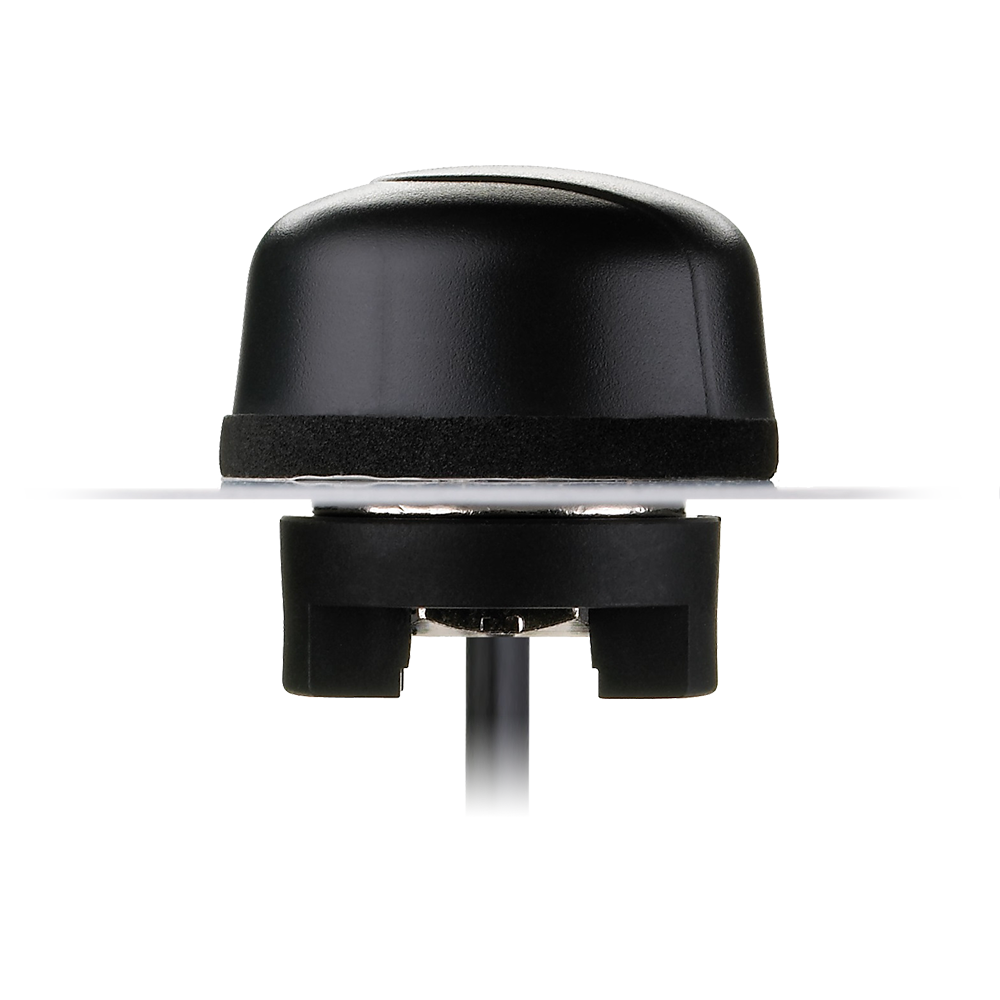

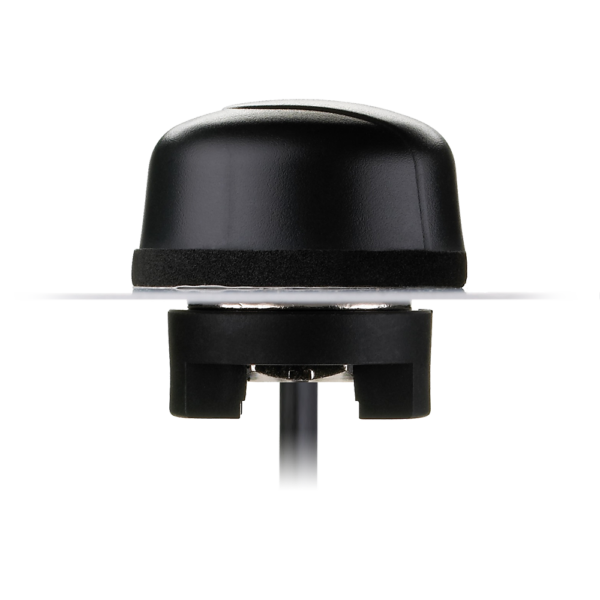

Image IS.04.B.301111

IS.04.B.301111

Hercules IS.04 868MHz 2dBi Permanent Mount Antenna, 3m RG-174

Overview

The 868MHz Hercules ISM antenna is a high-performance steel thread-mount ISM antenna for external use on vehicles and outdoor assets worldwide. Omni-directional high gain across all bands ensures constant reception and transmission. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 52 mm. Designed to not catch on tree-branches. The antenna can be mounted on metal structures.

Technical Specification
Name Value
Antenna Type External Antennas, ISM/LoRA
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 860-880MHz
Connector Polarity None
Cable Length (mm) 3000
Packaging Tray, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 2
Length (mm) 49
Width (mm) 49
Height (mm) 29
Weight (g) 152
