Hercules 2 in 1 GPS/GALILEO & Penta-band Cellular White Version
GPS/GALILEO 3M RG174 – SMA(M)
Cellular 3m CFD-200 SMA(M)
IP65 Rated Enclosure
No Ground Plane Required
Dimensions: 49mm*49mm*29mm
RoHS & REACH Compliant

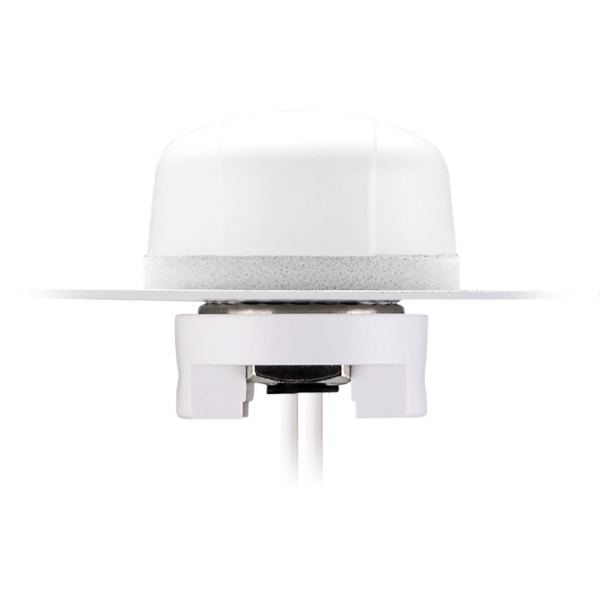

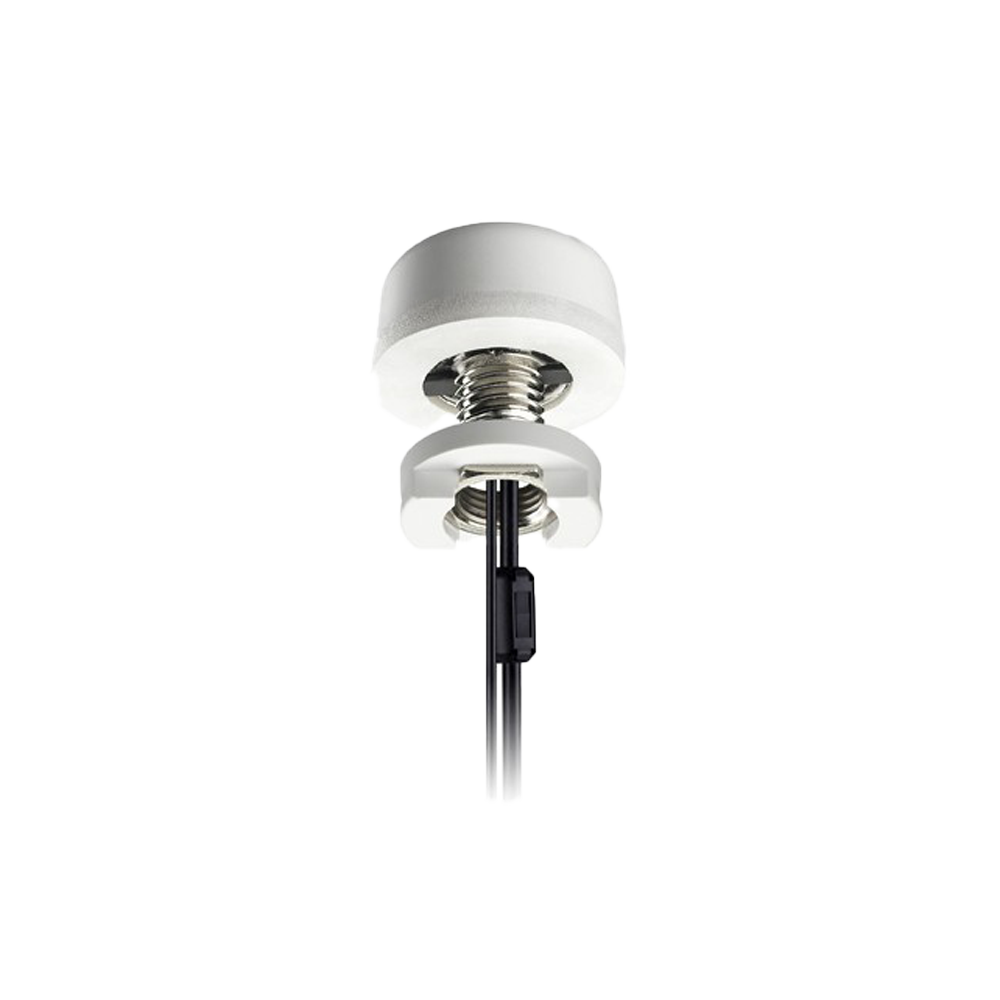

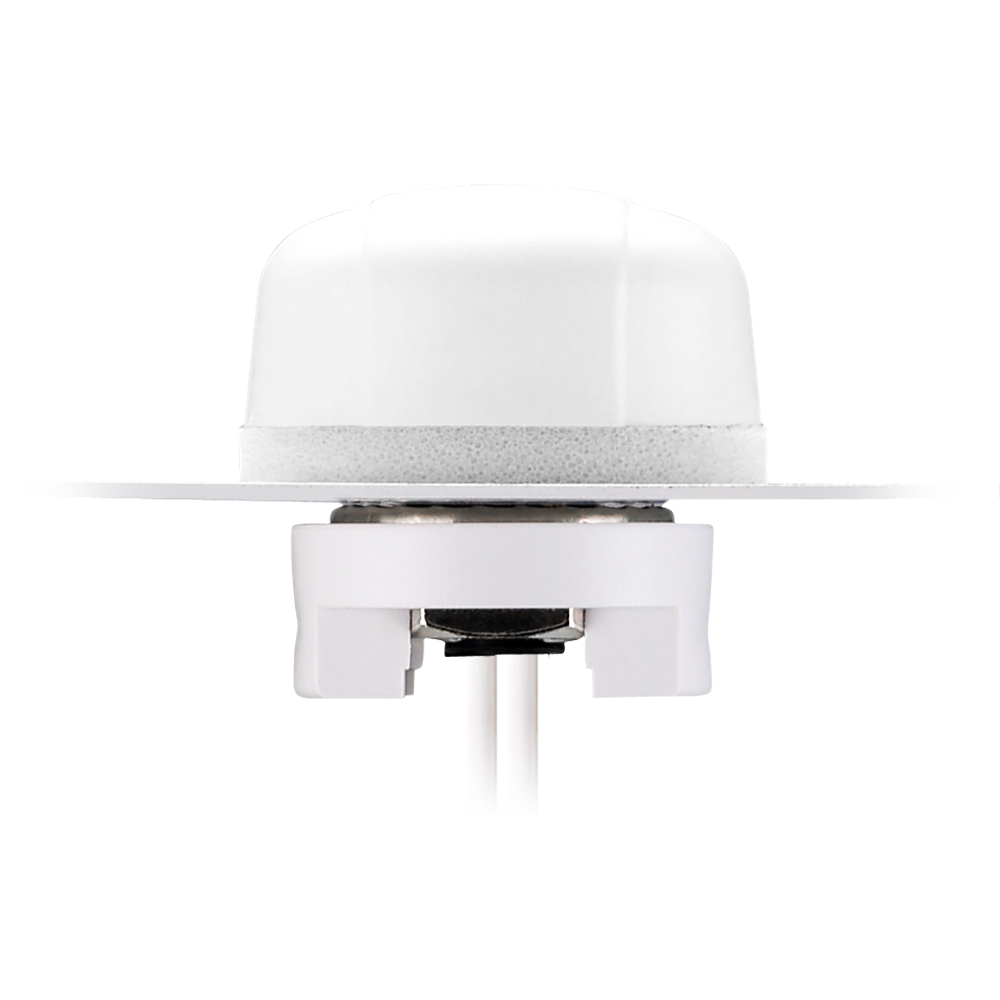

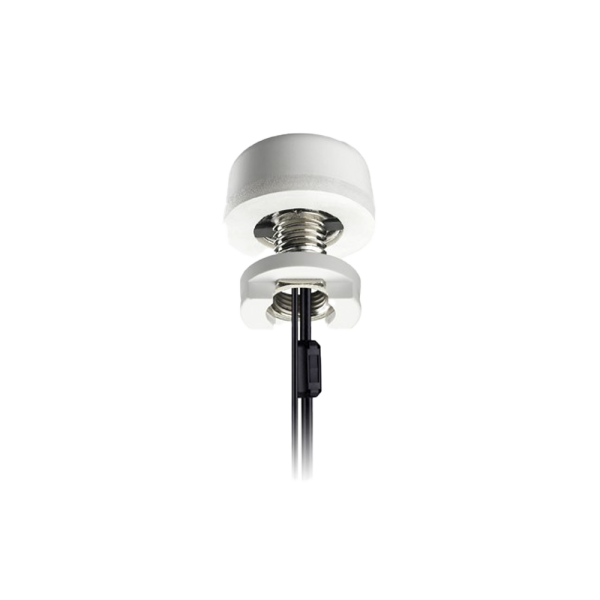

Hercules MA104 White 2in1 GPS/Galileo & 3G/2G Permanent Mount Antenna Ø48*29mm
MA104.C.W.AB.002
MA104.C.W.AB.002
Hercules MA104 White 2in1 GPS/Galileo & 3G/2G Permanent Mount Antenna Ø48*29mm
Overview
The MA104.C.W GPS/GALILEO & Cellular 2in1 Combination Hercules Antenna is a combination high performance GPS/GALILEO and penta-band cellular antenna solution for reliable asset tracking and remote monitoring. Durable UV and robust PC housing is IP65 rated, resistant to vandalism and direct attack. At only 29 mm height it complies with the latest EU height restrictions directives for roof-mounted objects, with a diameter of 49 mm. It is designed to not catch on tree-branches. The Hercules can be mounted on metal or non-metal structures as it has a metal ground-plane base integrated inside. The MA104 is also available in Black.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP65 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 48 |
| Width (mm) | 48 |
| Height (mm) | 29 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2 |
| Weight (g) | 200 |
| RoHS | Yes |
| Gain (Max) | 3.1 |
