Hercules MA131 2in1 Permanent Mount GPS/GLONASS/Galileo & 915MHz Ø48*29mm

MA131.A.LK.002

Hercules GPS/GLONASS/Galileo and 915MHz
GPS/GLONASS/Galileo –Total Gain 27dB at 3.0V
902-928MHz- Peak Gain 4dBi
GPS/GLONASS/Galileo – 0.2M RG174 – SMA(M)
915MHz – 0.2M RG316 – SMA(M)
IP65 Rated Enclosure
No Ground Plane Required
Dimensions: 48*48*29mm

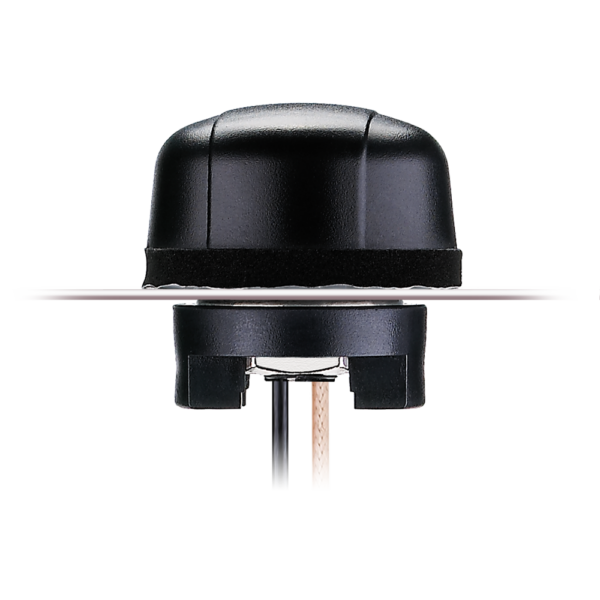

Image MA131.A.LK.002

MA131.A.LK.002

Hercules MA131 2in1 Permanent Mount GPS/GLONASS/Galileo & 915MHz Ø48*29mm

Overview

The MA131 Hercules antenna is a GPS/GLONASS/Galileo and ISM Band 915MHz combination 2in1 high-performance solution for the most reliable asset tracking and remote monitoring. The integrated metal thread-mount allows for external use on vehicles and outdoor assets worldwide. The 915MHz ISM Band antenna is ideally mounted on a ground-plane but works well also in free-space mounting conditions. The omni-directional gain pattern, with a peak gain of 4dBi when using shorter cable lengths, ensures constant reception and transmission. The GPS/GLONASS/Galileo antenna has been optimized to work on both GPS/Galileo and GLONASS bands, allowing the antenna to see the maximum amount of satellites in the sky and improving tracking accuracy enormously especially in built up areas, such as urban canyons where traditional GPS-only solutions struggle to maintain a lock driving around corners.

A front-end SAW filter attenuates any nearby out of band wireless transmissions so the GPS/GALILEO LNA is not driven into compression or damaged. The Hercules is also prized by the leading wireless device brands globally due to its unique mechanical construction. The compact size, IP65 rated enclosure and rugged polycarbonate construction, which can withstand direct attack and hazards such as tree-branches are un-matched in the industry. The standard cable length and connector option is 200mm RG316 and SMA(M). The cable length and connector are customizable. Taoglas supplies low loss extension cables according to your requirement. Maximum cable length should not go beyond 5 meters in order to maintain adequate antenna performance. The Hercules is also available in White. Contact your regional sales office for further information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 915MHz To 1606MHz
Connector Polarity Normal
Cable Length (mm) 200
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain 3.02
Length (mm) 47.8
Width (mm) 47.8
Height (mm) 28.5
Weight (g) 140
