Hercules MA501 Permanent Mount GPS/GALILEO& Wi-Fi Antenna Ø48*29mm

MA501.C.AC.001

Hercules 2in1 Permanent Mount Antenna
GPS/GALILEO – Peak Gain 2dBi / 2.4-5.8GHz – Peak Gain 4dBi
GPS/GALILEO – 3m RG174 – SMA(M)
Wi-Fi/ISM/Zigbee – TGC-200 – RP-SMA(M)
No Ground Plane Required
Dimensions: 48*48*29mm
IP65 Rated Enclosure
RoHS and REACH Compliant

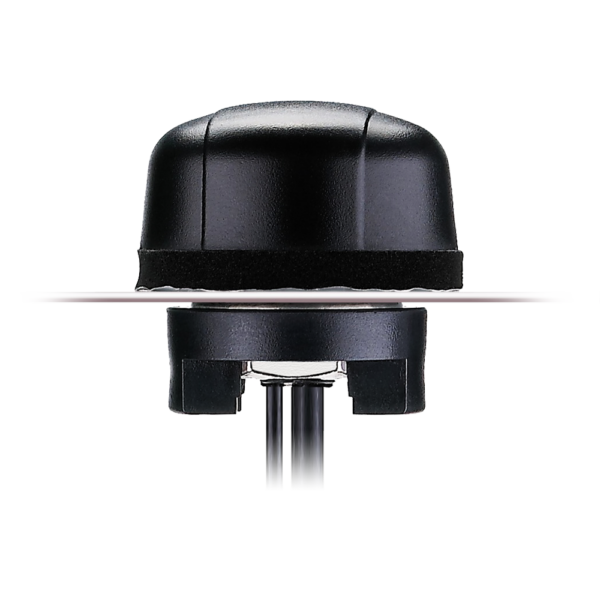

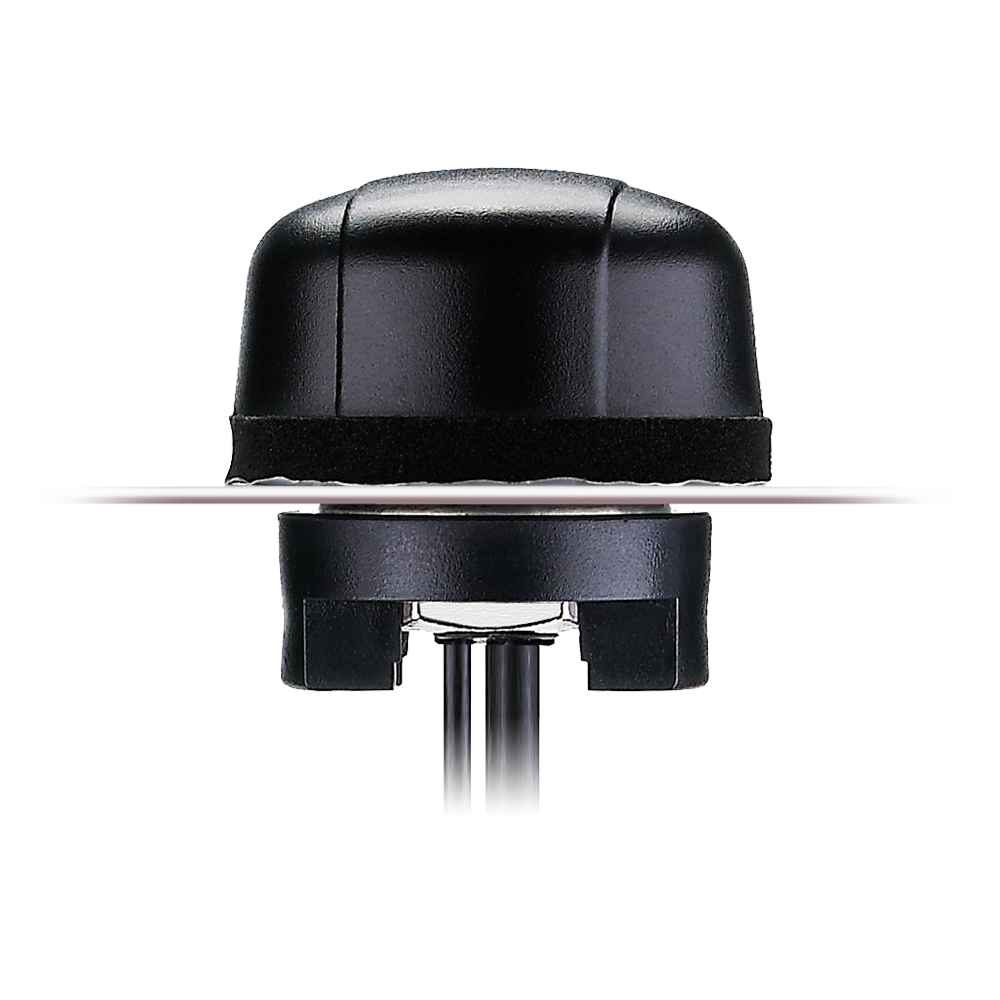

Image MA501.C.AC.001

MA501.C.AC.001

Hercules MA501 Permanent Mount GPS/GALILEO& Wi-Fi Antenna Ø48*29mm

Overview

MA501 is a combination of high-performance GPS/GALILEO and dual-band Wi-Fi (2.4 2.5/5.2GHz) antenna solution for reliable location information with localised data transfer via WLAN, Zigbee or Wi-Fi. This product incorporates the industry’s most advanced GPS/GALILEO active ceramic patch technology (XtremeGain™) allowing for gains of up to 300% in accuracy compared to traditional antennas. Time to first fix is under 1 minute with all of the industry-leading GPS/GALILEO receivers. XtremeGain technology means the antenna has been tuned for the Hercules environment giving you the optimum antenna solution to enable elimination of data gaps. The 2.4/5.2GHz antenna inside has also been tuned for this enclosure; hence performance is excellent at all bands meaning the antenna works worldwide. It was designed mainly for commercial vehicle and outdoor equipment installations, with extra thick threads, with the cables exiting through the bottom for ease of install. Durable and robust UV resistant PVC housing is IP65 rated, resistant to vandalism and direct attack. It is designed for covert mounting as it is only 3cm high when mounted, thus complies with the latest EU directives for height restrictions.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 1575.42 - 5350MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain (Max) 3
Length (mm) 48
Width (mm) 48
Height (mm) 29
Weight (g) 475
