Hercules MA520 2in1 Permanent Mount 3G/2G & Wi-Fi

MA520.A.BC.008

Hercules 2in1 Cellular & Wi-Fi
Permanent Mount
Cellular 3G/2G HSPA/GSM/GPRS/CDMA/EVDO/UMTS/WCDMA
850/900/1800/1900/2100MHz
3G/2G 2M RG-316 – SMA(M)
Wi-Fi Dual Band Antenna 2.4/5.8GHz
Wi-Fi/ISM/ZigBee – RG-316- RP-SMA(M)
No Ground Plane Required
IP65 Rated Enclosure
Dimensions: 48*48*29mm
RoHS & REACH Compliant

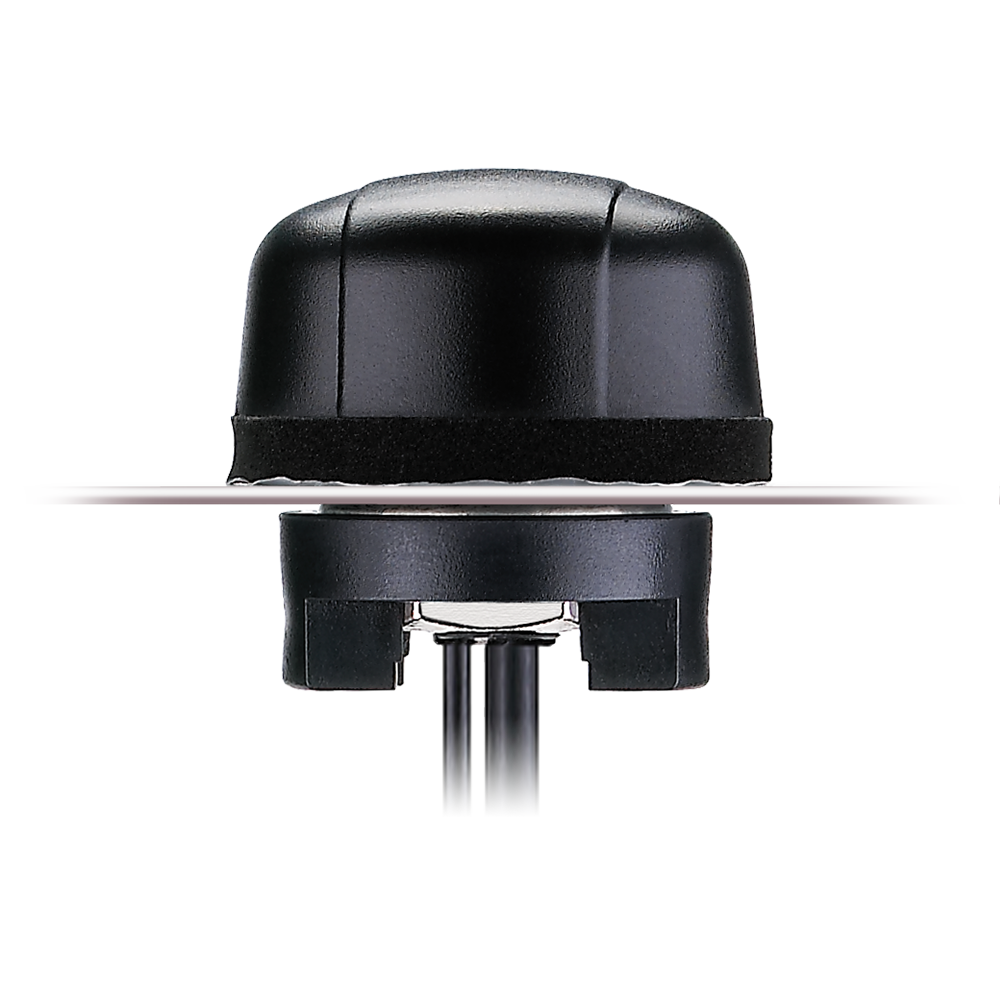

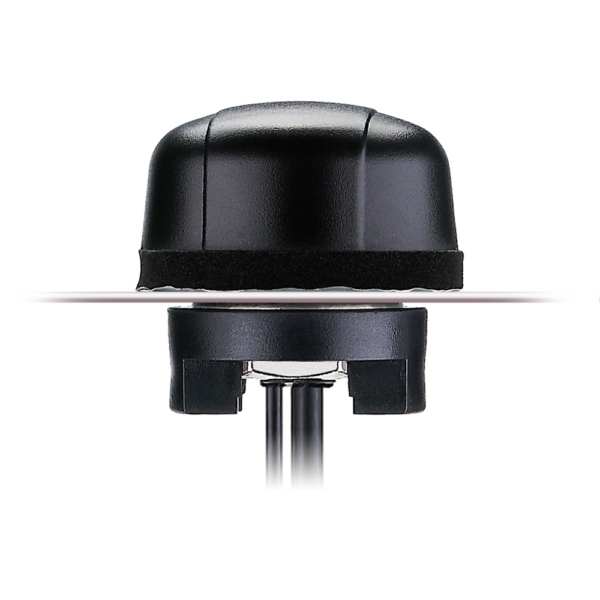

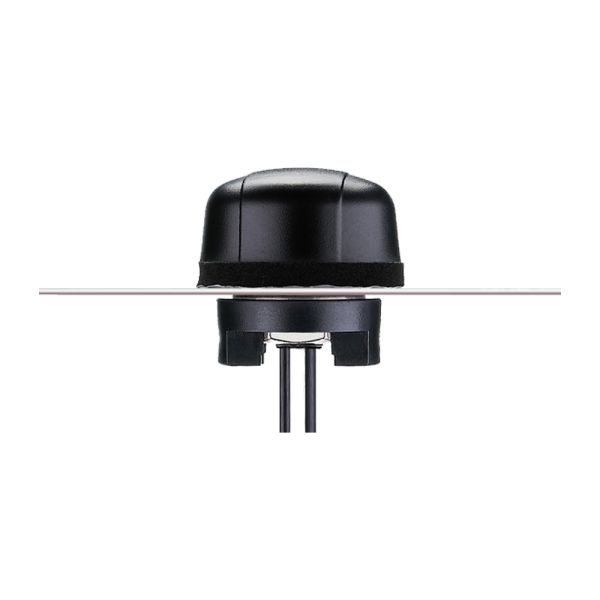

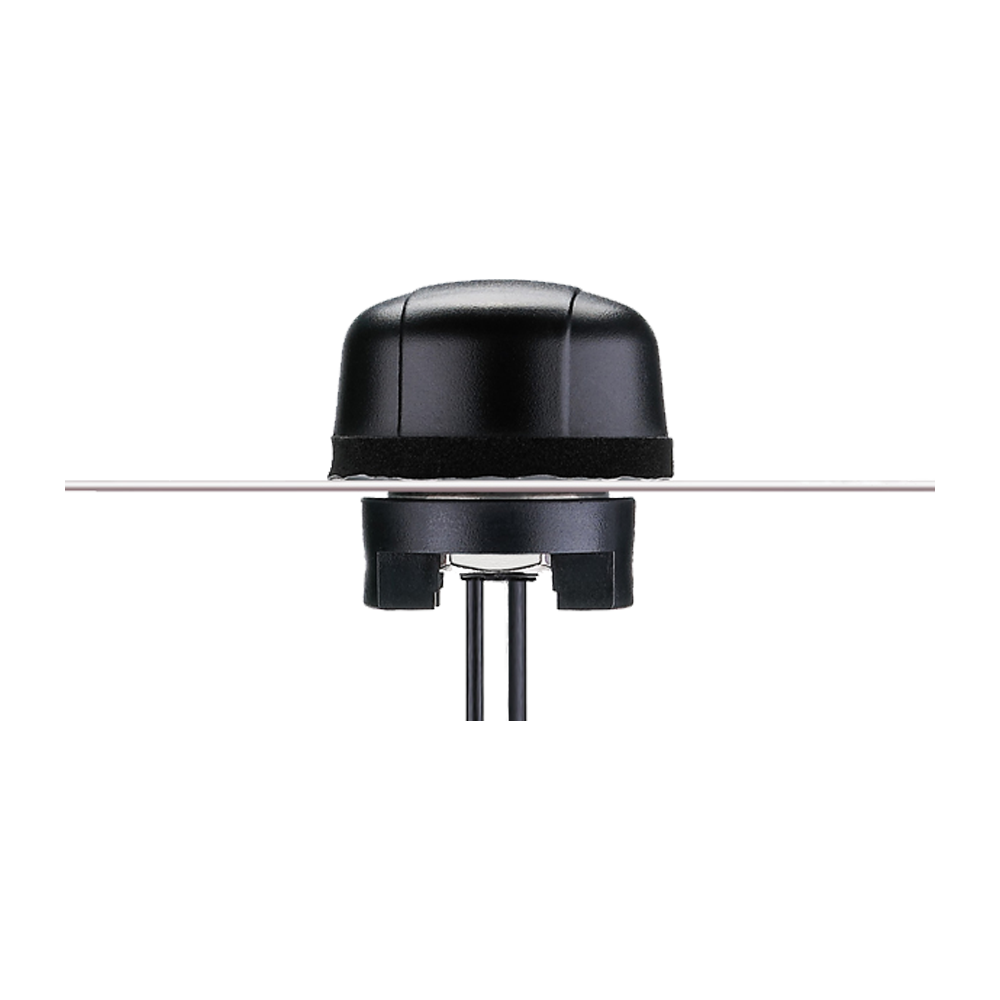

Image MA520.A.BC.008

MA520.A.BC.008

Hercules MA520 2in1 Permanent Mount 3G/2G & Wi-Fi

Overview

The MA520 Hercules 2in 1 Penta Band Cellular-2.4/5.8GHz Antenna is the smallest package high-performance screw-mount (permanent mount) antenna available, for external use on vehicles and outdoor assets worldwide. Everything is in the one housing reducing the need for multiples antenna installations. This is the ideal antenna for 3G gateway routers that provide Wi-Fi hotspots. It has been designed for heavy-duty work with extra thick threads; with durable UV-resistant ABS housing is IP65 rated, resistant to vandalism and direct attack. At only 29mm high and 49mm in diameter this antenna enables covert operation and its quality is proven by growing adoption by many of the world’s largest wireless brands worldwide. The standard cable length is 1 meter; the antenna can work to cable lengths of 2 meters. The Hercules MA520 exceptional design means it can work equally well mounted on or without ground-plane.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Screw
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-316
Connector Body Style Straight
Polarity Linear
Frequency Range 700MHz To 5925MHz
Connector Polarity Reverse
Cable Length (mm) 2000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP65
RoHS Yes
Gain 2.1
Length (mm) 49
Width (mm) 49
Height (mm) 29
Weight (g) 170
