AA.180 Magnetic Mount, Low Axial Ratio Dual-Pin GNSS Patch Antenna


Compact Magnetic Mount Antenna
Covers GPS/GLONASS/Galileo/BeiDou
Dual-Pin Patch Patch for Low Axial Ratio
Magnetic Mount
IP67 Rated
Cable: 5m RG-174
Connector: SMA(M)
Cable and Connector Customizable
Dimensions: 35 x 35 x 15mm

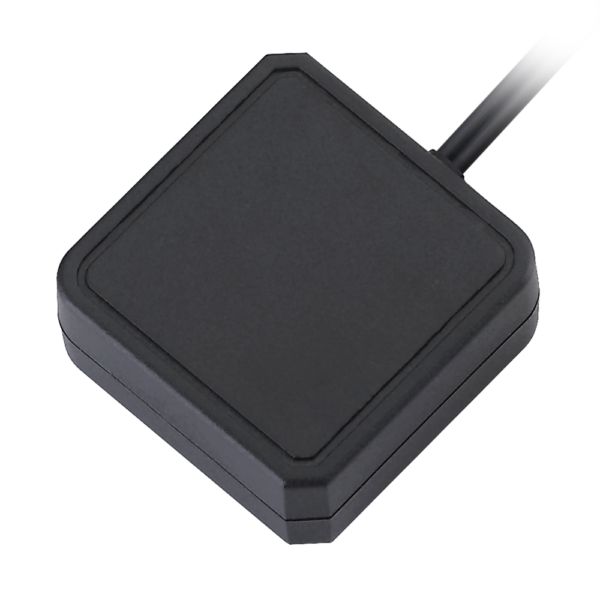

Image AA.180.501111


AA.180 Magnetic Mount, Low Axial Ratio Dual-Pin GNSS Patch Antenna


The compact AA.180 magnetic mount external antenna is ideal for robust, covert installations where durability and small size is paramount. This low profile antenna is tuned for stable operation over GPS-GLONASS-Galileo-BeiDou L1 frequency bands and is used in the following typical applications.

  • Advanced telematics and M2M applications
  • Fleet management
  • High accuracy positioning systems

At only 35mm square and 15mm in height, it is the most compact high accuracy antenna in the market for L1 operation. Integration of a Taoglas Dual-pin patch enables the axial ratio to be 3 at the centre of the band, delivering good right-hand circular polarization, which increases location accuracy and speed of time to first fix in the GNSS system. A front-end SAW reduces out-of-band interference from any nearby wireless transmitters, helping prevent LNA compression and burnout. Standard cable and connector version is 5 meter RG174 with SMA(M). Cable length and connector type are customizable upon request. For more information on this product, customisation of this product or our design and testing services, please contact our Customer Services Team.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1559 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 5000
Packaging Carton
IP Rating IP67
RoHS Yes
Gain (Max) 33.5
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 35.74
Width (mm) 35.74
Height (mm) 15
Weight (g) 92
