New Released Apr 23, 2025

Thunder Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Semtech XR60

THOR60

Integrated 5G/LTE Omni Antenna for Semtech XR60
Multi-band 5G/LTE Antennas covering 600-7125 MHz
Wall / Pole mount antenna
IP67 rated waterproof enclosure
Connector: RJ45
Dimensions: 160 x 160 x 240 mm
RoHS and Reach Compliant

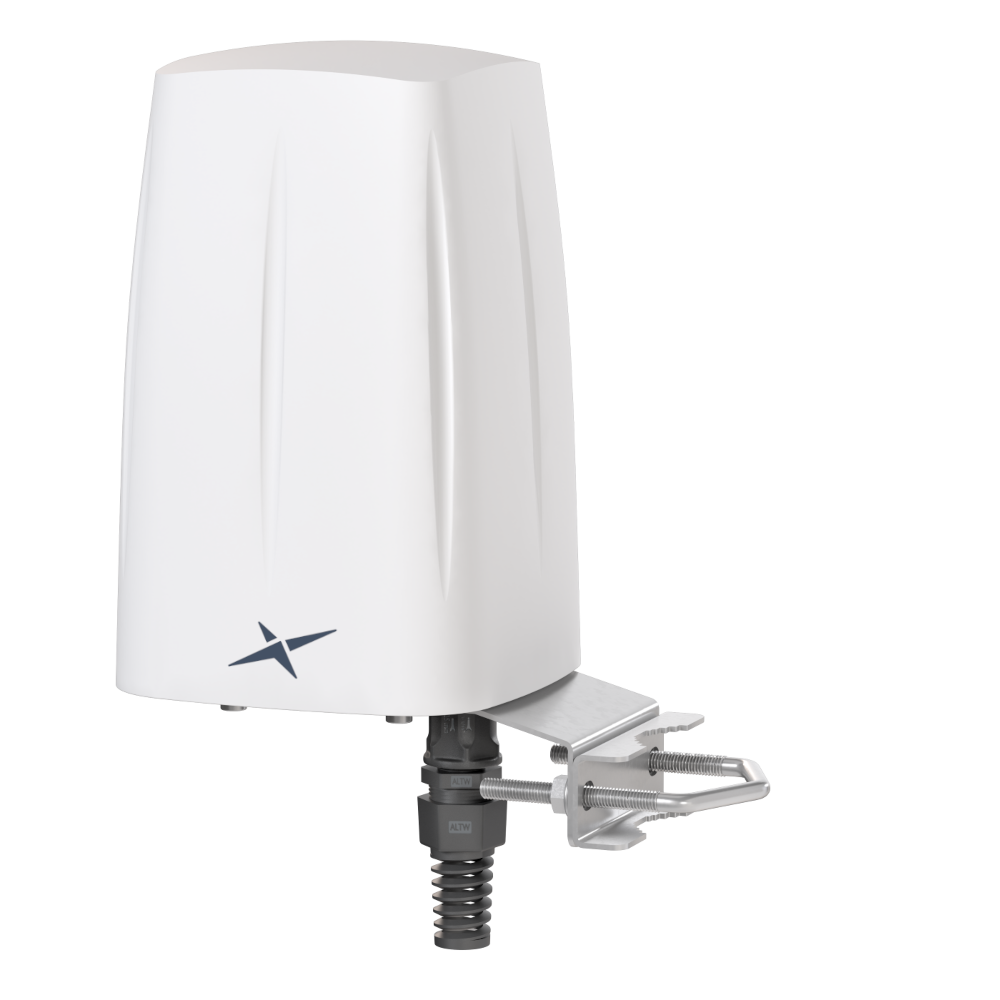

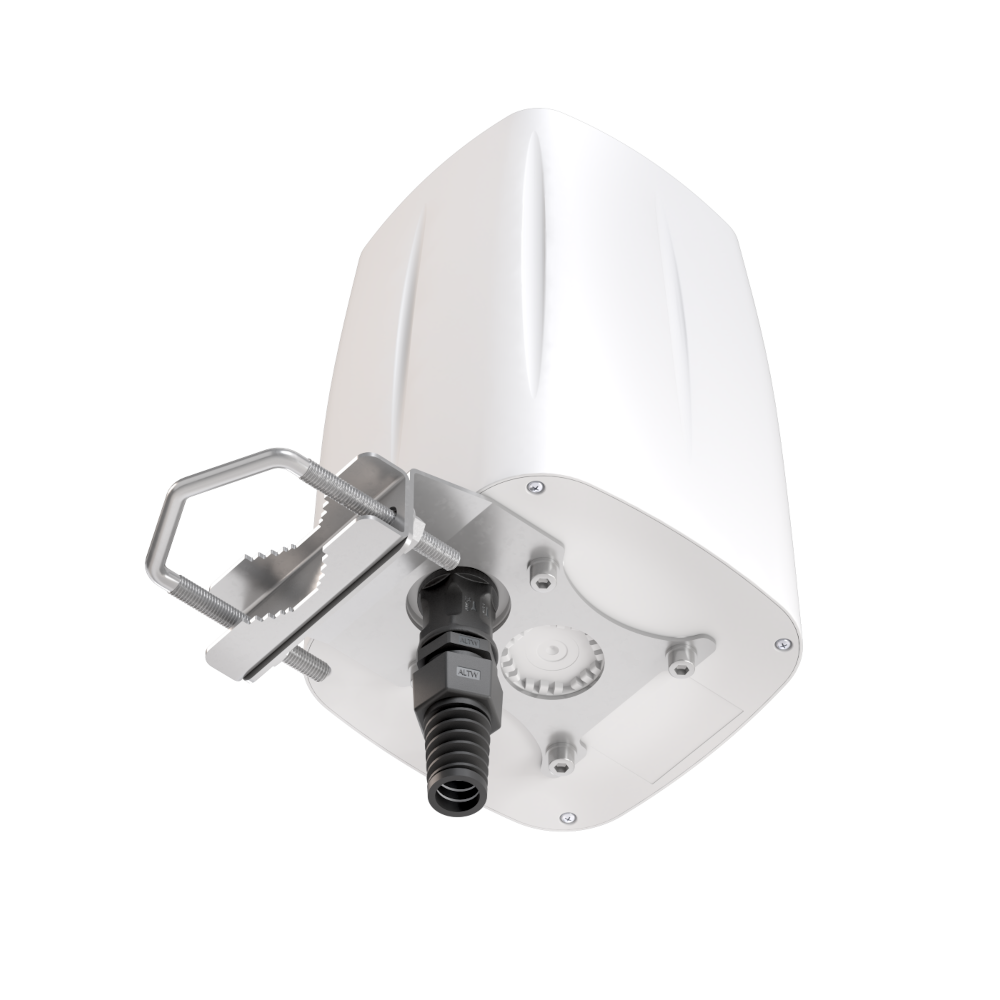

Image THOR60

THOR60

Thunder Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Semtech XR60

Overview

Integrated Multi-Band 5G/LTE Omnidirectional Antenna for Semtech XR60

The Taoglas THOR60 Omnidirectional antenna for Semtech XR60 routers is designed for use in a variety of wireless communication applications. This all-in-one product consists of multi-band 5G, Wi-Fi®, and GNSS antennas, integrated in IP67 enclosure. It offers 7.5 dBi gain and wide beam width, which makes it suitable for use in both urban and rural environments. Combining the THOR60 Thunder Omnidirectional antenna with the Semtech XR60 router inside gives you complete outdoor solution with multiple use cases such as public transportation, energy, mining, IoT and much more.

Typical applications include:

– Remote and Hybrid Work Environments
– Branch and Retail Locations
– Industrial and Rugged Environments
– High-Bandwidth Applications
– Critical Communications and Public Safety

The heavy-duty, fully IP67 rated external ABS enclosure allows this antenna to be mounted in harsh external environments where a robust, waterproof antenna is required. With high peak gains and high efficiencies over frequencies from 600-7125 MHz, the THOR60 is a fantastic solution for wideband cellular, Wi-Fi®, and GNSS applications.

Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
IP Rating IP67
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 80
Mounting Style Wall/Pole
Termination Style Connector
Antenna Connector Type RJ45
Length (mm) 160
Width (mm) 160
Height (mm) 240
Cable Type n/a
Connector Body Style Straight
Polarity RHCP, Vertical
Frequency Range 600MHz - 7125MHz
Connector Polarity Normal
VSWR <2
Weight (g) 1500
RoHS Yes
Gain (Max) 28
