5dBi ISM Band 915MHz Embedded Ceramic Patch Antenna with Cable and Connector
902MHz to 928MHz ISM band
5dBi Peak Gain (30*30cm Ground Plane)
92mm RG-178 Coaxial Cable – MMCX(M)RA Connector
Dims:49.5*49.5*7.5mm

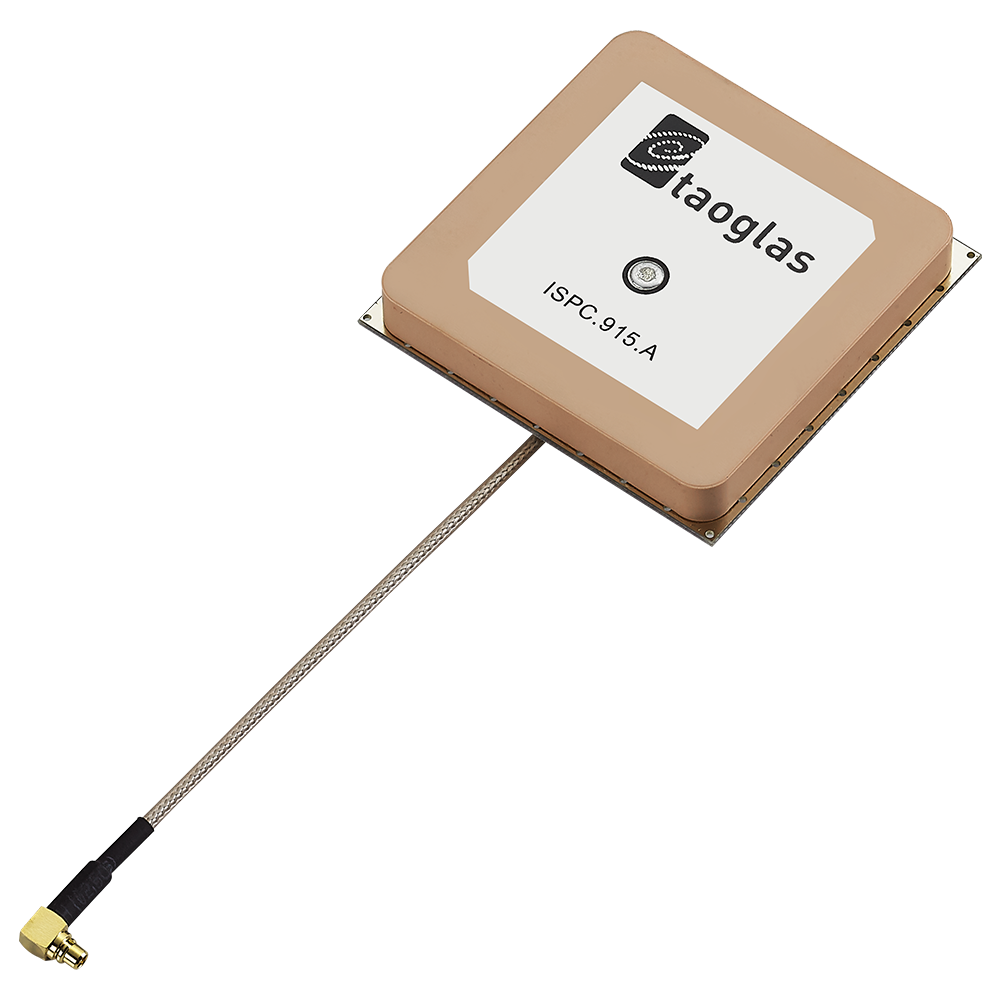

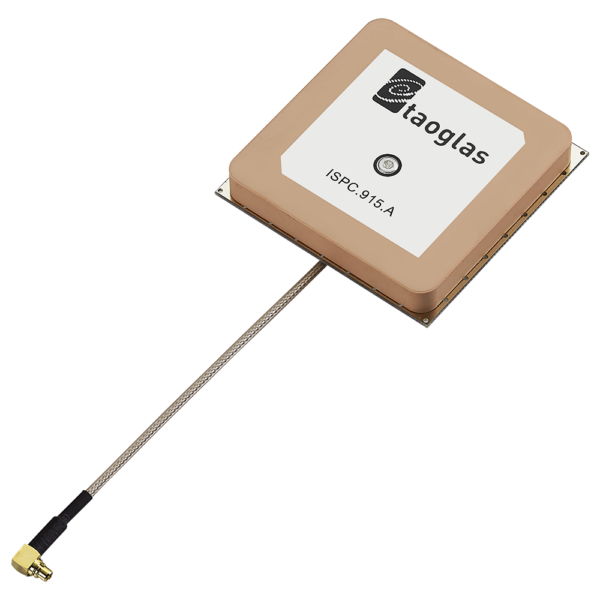

ISPC.91A 915MHz 5dBi Ceramic Patch Antenna, 92mm RG-178 49.5*49.5*7.5mm
ISPC.91A.09.0092E
ISPC.91A.09.0092E
ISPC.91A 915MHz 5dBi Ceramic Patch Antenna, 92mm RG-178 49.5*49.5*7.5mm
Overview
Automotive Antenna for LoRa and Sigfox USA
The 5dBi ISPC.91A embedded ceramic patch antenna an automotive antenna for LoRa and Sigfox USA. The cable and connector is designed primarily for the 915MHz ISM band. It is a compact fixed wireless application where it can be mounted to a metal panel to function as the ground underneath the antenna. When placed on a reference 30cm square ground-plane, the antenna has an excellent directional hemispherical radiation pattern up to 5dBi on the zenith and an efficiency of 71%. Even without a ground-plane underneath the antenna achieves 1dBi and efficiency of 50~60%, with an omnidirectional pattern. Coming as standard with an RG178 cable and MMCX male right angle connector it is a great solution for the following typical applications
- RFID Readers
- Short-range 915MHz mesh networks
- Automotive ISM Applications
Cable type, length, and connector can be customized. Mechanical customization of the antenna can also be done for a minimum order quantity. Please contact your regional Taoglas office for more details.
Technical Specification
| Name | Value |
|---|---|
| Technology | Embedded Antennas, ISM/LoRA |
| Mechanical Style | Patch |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Pin/Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | MMCX |
| Length (mm) | 49.5 |
| Width (mm) | 49.5 |
| Height (mm) | 7.5 |
| Cable Type | RG-178 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 915MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 92 |
| VSWR | <2 |
| Weight (g) | 50 |
| RoHS | Yes |
| Gain (Max) | 2 |
