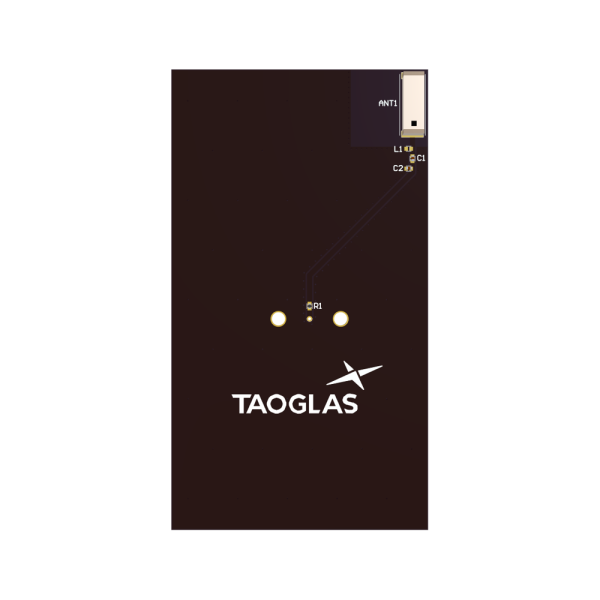

Evaluation Board for ILA.89 with 5pcs

Evaluation Board for ILA.89 with 5pcs

The Taoglas ILA.89 is a compact, high-efficiency LTCC (Low Temperature Co-fired Ceramic) chip antenna designed for reliable operation within either the 868 MHz or 915 MHz ISM band not both simultaneously. A different matching circuit is required for each frequency band, please refer to the integration guide in Section 4 for details. Engineered for space-constrained wireless applications, this antenna delivers up to 47.9% efficiency and a peak gain of 0.56 dBi, all within a miniature footprint of just 4.0 × 12.0 × 1.6 mm.

The ILA.89 is RoHS and REACH compliant and is ideal for IoT, remote monitoring, smart metering, and other wireless communication systems where stable performance and compact integration are essential.

Typical Applications Include:

• Asset Tracking and Logistics
• Smart Agriculture
• Medical and Healthcare Devices
• Wireless Alarms and Safety Devices
• Remote Controls and Keyless Entry

For further optimization to customer-specific device environments and for support to integrate and test this antennas performance in your device, contact your regional Taoglas Customer Services Team.
