MA284 Adhesive Mount 4in1 Combination GNSS, 2* LTE MIMO & Wi-Fi Low Profile Antenna

MA284.LBIC.001

GPS/ GLONASS/BeiDou
4G MIMO with fallback to 3G/2G
Dual Band Wi-Fi
Robust PC/ABS, IP67 Rated Enclosure
1.8~5.5V/30dB
Cables: 2m RG-174 & 2m Low Loss TGC-200
Connectors: SMA(M) & RP-SMA(M)
Cables & Connectors Fully Customizable
Dimensions: 151.8 * 59 * 13mm
RoHS & REACH Compliant

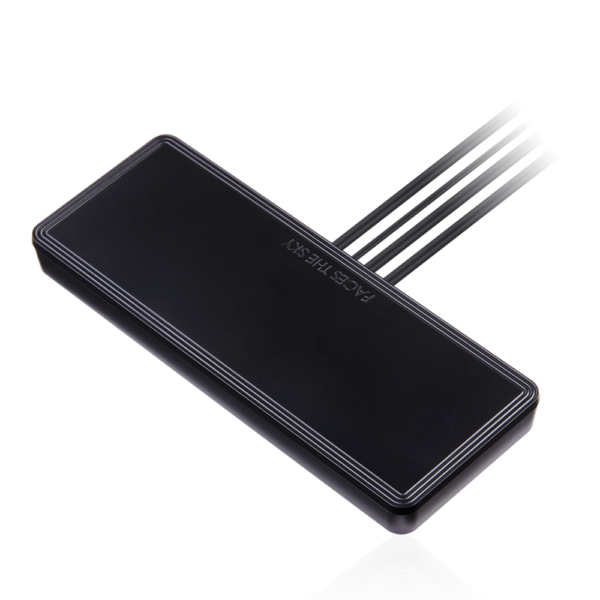

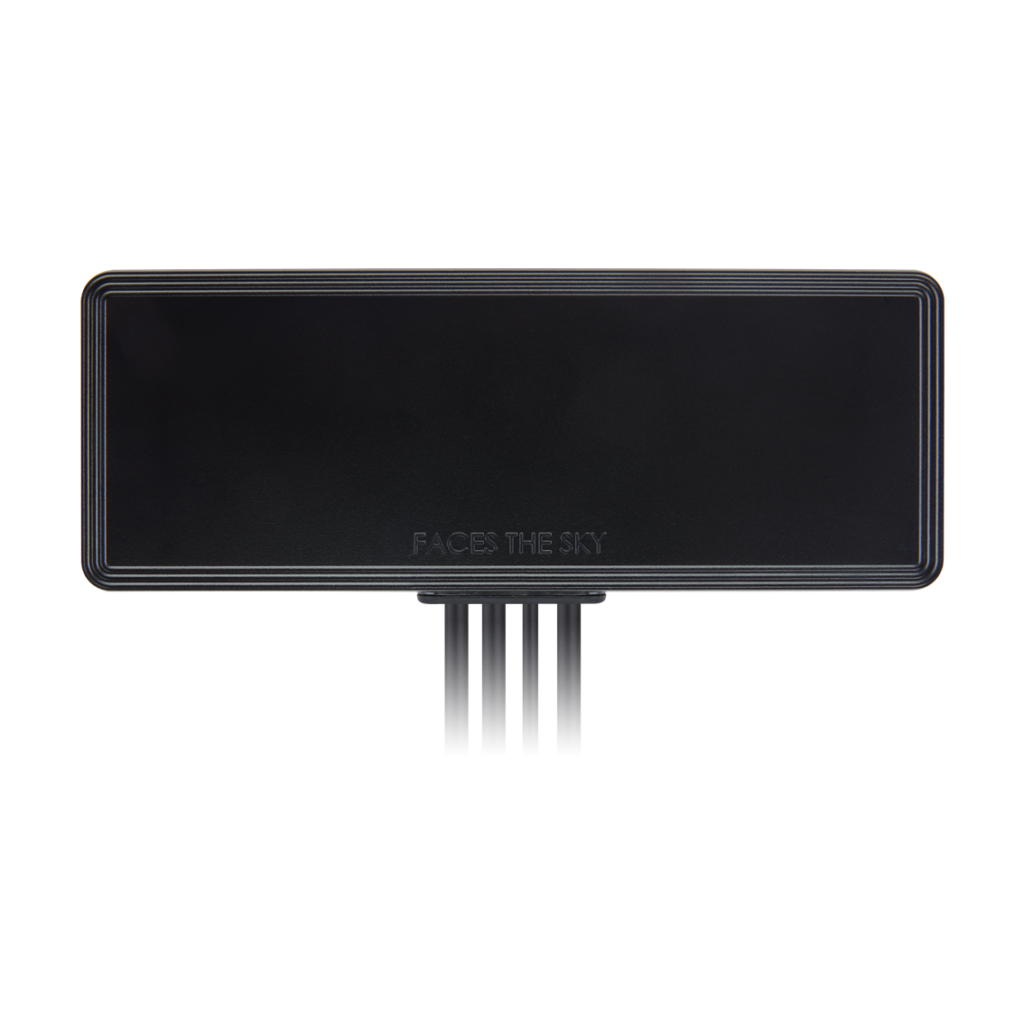

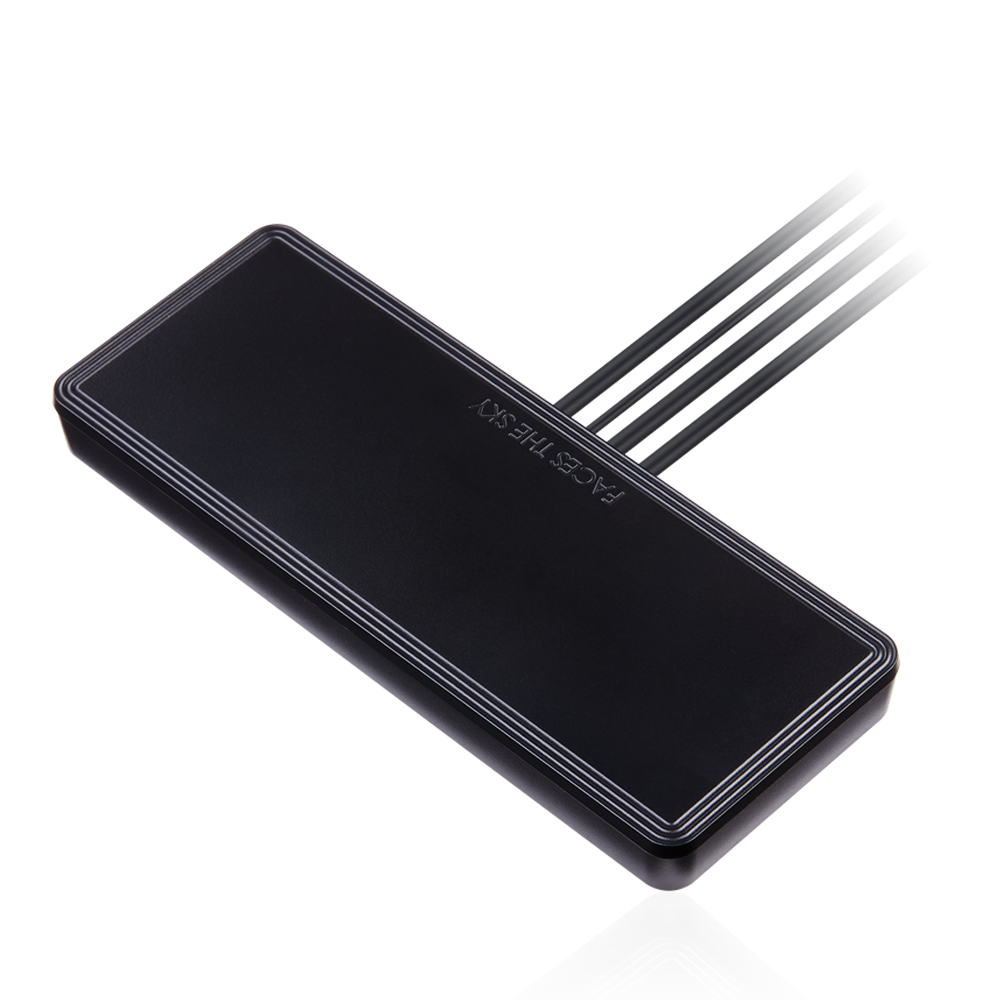

Image MA284.LBIC.001

MA284.LBIC.001

MA284 Adhesive Mount 4in1 Combination GNSS, 2* LTE MIMO & Wi-Fi Low Profile Antenna

Overview

MA284 Adhesive Mount 4in1 Combination GNSS, 2* LTE MIMO & Wi-Fi Low Profile Antenna

The Taoglas MA284 is one of the smallest 4-in-1 low profile, adhesive mount, combination antennas on the market. Comprising of GNSS, 2* LTE MIMO and dual band Wi-Fi, this unique antenna delivers powerful LTE antenna technology, that includes backward compatibility to work at most worldwide 3G and 2G bands. Coupled with GPS, GLONASS & BeiDou and 2.4/5.8GHz Wi-Fi, it is ideal for next generation, multiple wireless technology systems, such as vehicle telematics and applications that require highly sophisticated antennas for real-time streaming demanding high-speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.

The LTE & Wi-Fi antennas have an omnidirectional radiation pattern and the robust PC/ABS enclosure is fully IP67 waterproof and design for use in the harshest of environments. The GNSS antenna has been carefully designed to work equally well on both GPS/GALILEO and GLONASS bands, leading to higher location accuracy and stability of tracking in urban environments.

Typical Applications Include:

• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation and Telematics Systems
• V2V, V2X and Fleet Management Applications
• Real-time HD Video Streaming
• Digital Signage and Remote Monitoring
• First Net Responder Routers

Cable length and connector types are fully customizable. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 90°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP
Frequency Range 698 - 5850MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 5
Length (mm) 151.8
Width (mm) 59
Height (mm) 13
Weight (g) 180
