1*LTE Antenna
1*Active GNSS Antenna – GPS L1 and GLONASS L1
Magnetic Mount
IP67 Enclosure
Dimensions: 77*21mm
LTE: 3M RG-174 Cable and SMA(M)ST Connector
GNSS: 3M RG-174 Cable and SMA(M)ST Connector
Custom Cables and Connectors Available
RoHS and REACH Compliant

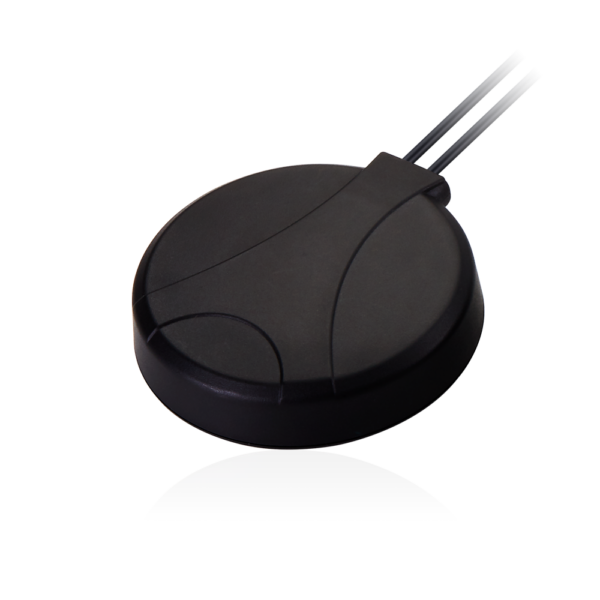

Tycho MA310.A.LB.001 Magnet Mount GPS/GLONASS-SMA(M) 4G LTE/Cellular-SMA(M) 3M RG-174
MA310.A.LB.001
MA310.A.LB.001

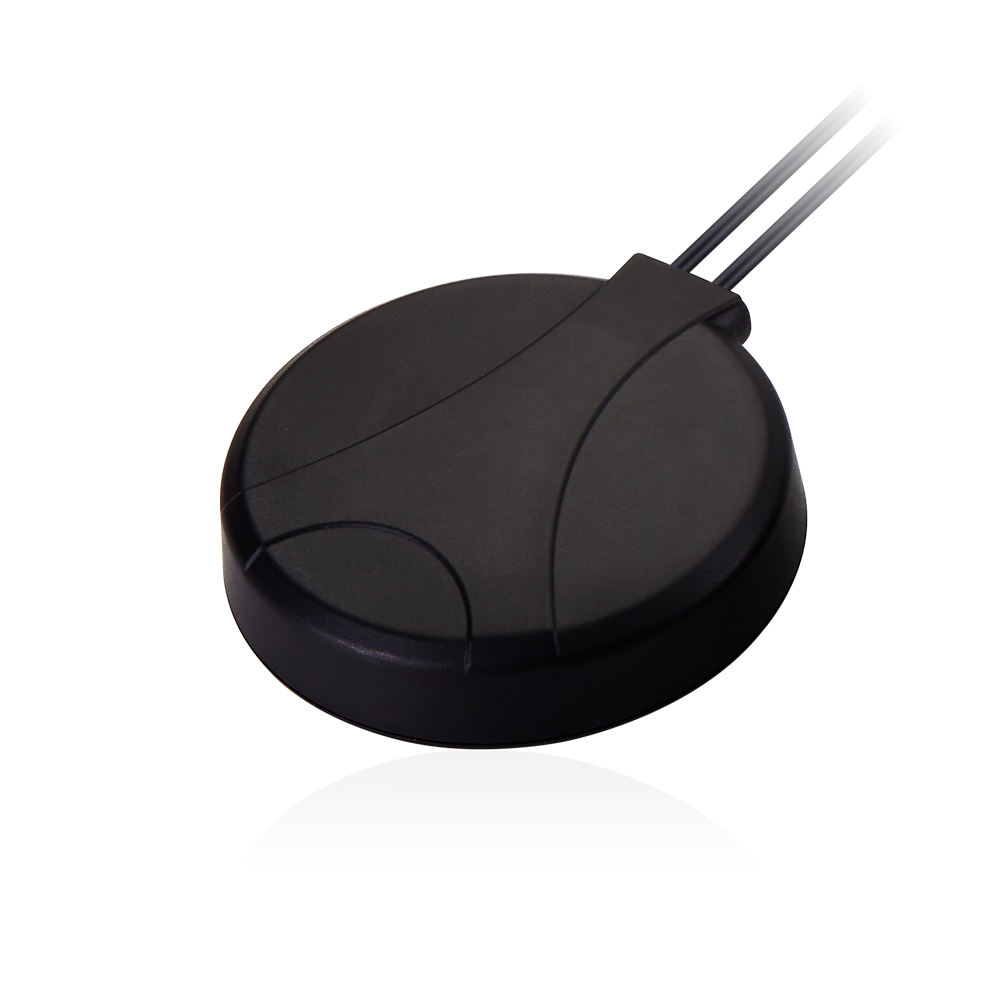

Tycho MA310.A.LB.001 Magnet Mount GPS/GLONASS-SMA(M) 4G LTE/Cellular-SMA(M) 3M RG-174
Overview
MA310.A.LB.001 Magnet Mount GPS/GLONASS-SMA(M) 4G LTE/Cellular-SMA(M) 3M RG-174
The MA310 antenna is a combination small form factor high performance GPS/GLONASS and Penta-band Cellular (GSM/GPRS/CDMA/ PCS/DCS/ WCDMA/UMTS) antenna to simplify AVL or Fleet management antenna systems worldwide.
It comes with magnetic mount as standard. An internal O-ring meets stringent IP-67 waterproof standards. With the strongest GPS/GLONASS and Cellular antenna design team in the industry and rigorous testing Taoglas offers guaranteed performance with your system and your environment.
The standard version comes with 3 metres RG174 cable and SMA(M) connectors for both GPS/GLONASS and Cellular feeds. Cables and connectors are customizable upon requests.
Features
GPS/GLONASS
• High LNA Gain up to 31 dB
• Antenna Gain 28 ± 2 dB
• Miniaturized to 56.2 x 16.8 mm
• Low Noise Figure 2.8 dB typ. for GPS
• 3.2 dB typ. for GLONASS
• Ultra-Low Power Consumption 7~10mA typ. ( at 3.3V DC)
Cellular
• Advanced penta-band cellular antenna (GSM/GPRS/CDMA/PCS/DCS/WCDMA/UMTS/HSPA)
• GSM850: 824~896MHz, GSM900: 880~960MHz,
• DCS: 1710~1880MHz, DCS: 1850~1990MHz
• UMTS/WCDMA/HSPA: 1920~2170MHz
Other
• IP67 Water Resistant due to Internal O-Ring Structure
• Quality textured covert design. Low profile.
• ABS housing
• Optional cables and connectors
• ROHS Compliant
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Combination |
| IP Rating | IP67 |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Magnetic |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Length (mm) | 77 |
| Width (mm) | 77 |
| Height (mm) | 21 |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| VSWR | 2.1 |
| Weight (g) | 122 |
| RoHS | Yes |
| Gain (Max) | 5 |
