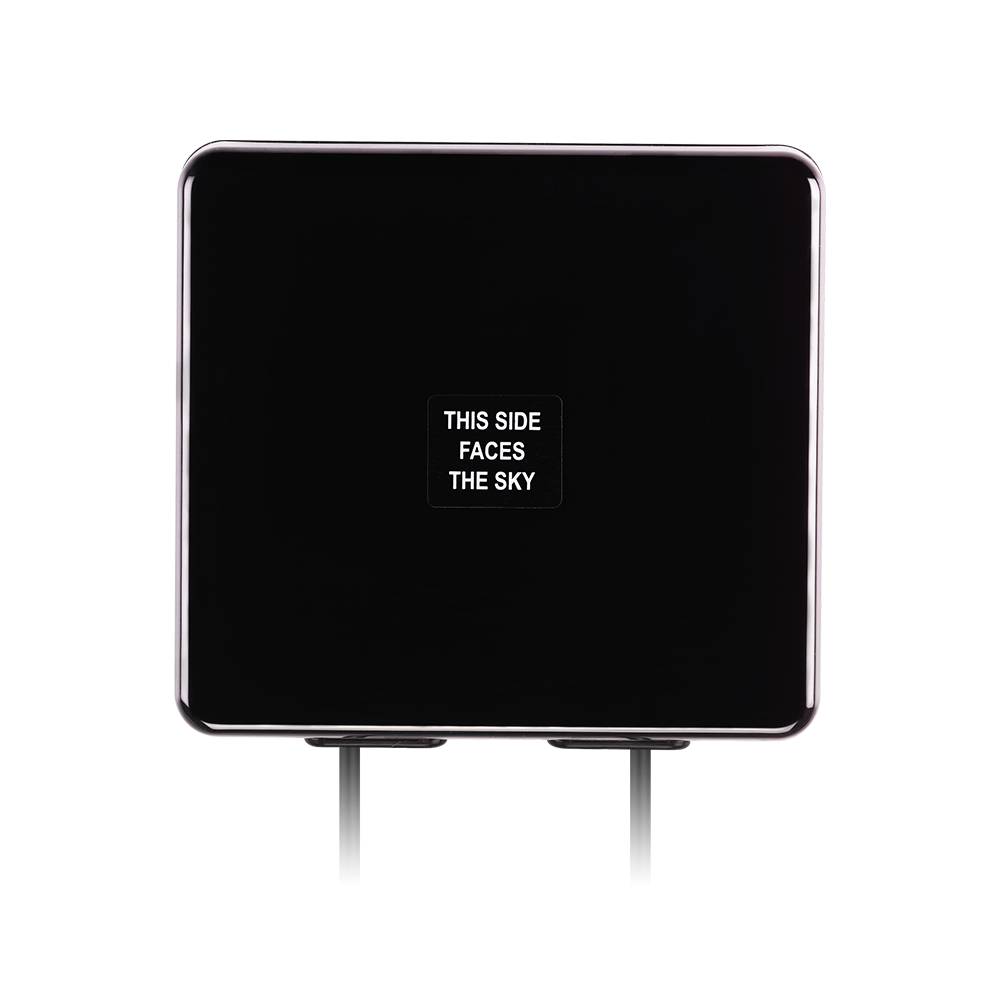

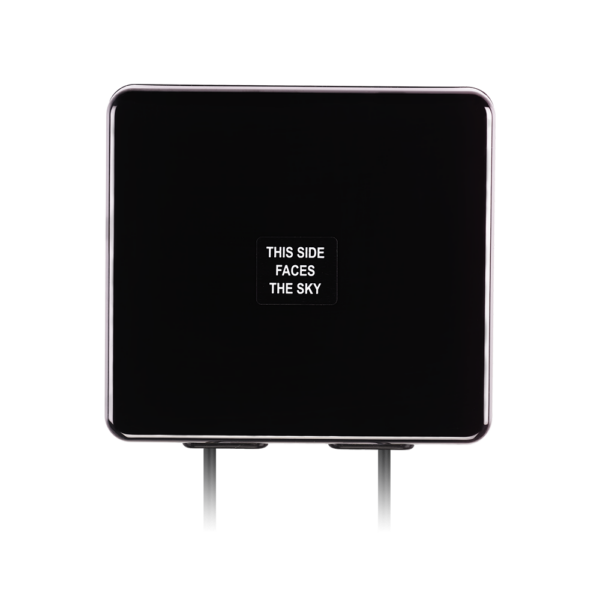

The MA912 Guardian is a new generation of combination antenna. It is the first panel antenna worldwide designed for IoT gateway and router devices. It is a low profile 2 in 1 wall and adhesive mount antenna. It is a heavy-duty, fully IP67 waterproof resistant external M2M antenna for use by RF professionals in:

  • IoT Gateway and Routers
  • HD Video Streaming
  • Transportation
  • Remote monitoring applications

This antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 698 to 960 MHz/1710 to 2170 MHz/2490 to 2690 MHz/3300 to 3600 MHz, dual-band 2.4/5.8 GHz WIFI. It enables designers to install only one antenna to cover all of these technologies.

The housing dimension is 146*134*20mm (L*W*H). It is IP67 waterproof and comes with a 3M foam adhesive. The antenna can be mounted internally or externally on a vehicle. The cables are 3 meter, low loss KSR-200P coaxial cable for the LTE antennas. Customized cables and connector versions are also available. For more information please contact our Customer Services Team.

×
