AA.171 – MagmaX IP67 GPS/GLONASS/Galileo/BeiDou Antenna Dual pin patch, 3M RG-174


MagmaX Magnetic Mount GPS/GLONASS/GALILEO/BeiDou Antenna
BeiDou 1561MHz / GPS/GALILEO 1575MHz / GLONASS 1602MHz
IP67 Rated Enclosure
Low Axial ratio <3dB
GPS/GLONASS/GALILEO/BeiDou – Total Gain 28dB typ at 3.0V
3m RG174 – SMA(M)
Dimensions: 53*50*17mm
First Tier Automotive IATF16949 Approved

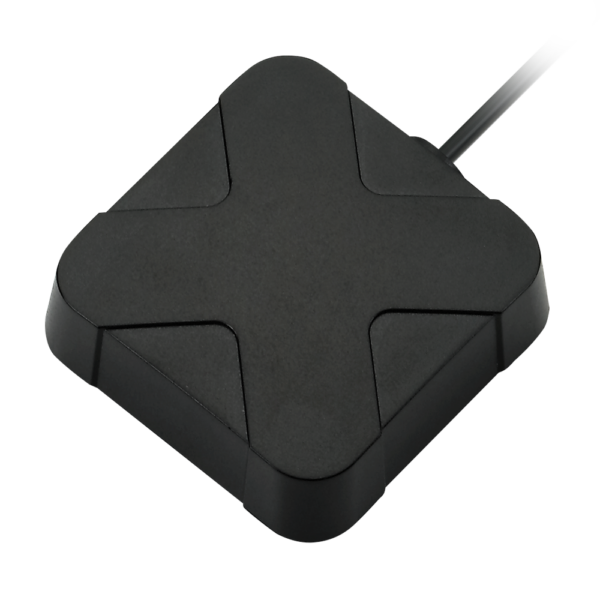

Image AA.171.301111


AA.171 – MagmaX IP67 GPS/GLONASS/Galileo/BeiDou Antenna Dual pin patch, 3M RG-174

MagmaX IP67 GPS/GLONASS/Galileo/BeiDou Antenna Dual pin patch, 3M RG-174

The Magma AA.171 a GNSS magnetic mount external antenna with low axial ratio. It is ideal for robust, covert installations where durability and small size is paramount. It is used in telematics and M2M applications, for example in commercial vehicle installations for fleet management. It comes with a 3 meter, standard RG174 cable and SMA(M) connector. Using a unique feed structure this antenna delivers low axial ratio levels across all GPS, GLONASS, Galileo and BeiDou bands. Low axial ratio improves the accuracy of GNSS system location leading to quick lock times. A front-end SAW reduces out-band interference from any nearby wireless transmitters, helping prevent LNA compression and burnout. The AA.171 is manufactured in our dedicated TS16949 facility and PPAP and IMDS documentation are available on request. An adhesive mount version is available on request. Cable length and connector type are customizable upon request.

Contact your regional Taoglas office for support

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Magnetic
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 1559 - 1610MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
IP Rating IP67
RoHS Yes
Gain (Max) 30.18
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 52.4
Width (mm) 49.8
Height (mm) 17.1
Weight (g) 92
