MAT.176A – High-Band 5G Antenna Board (60x60mm) with 4×4 MIMO operation

MAT.176A

Covering 1.7 – 6GHz
Antenna Board with 4×4 MIMO
High Efficiency across all cellular High-Bands
Dimensions: 60 x 60mm
Manufactured in our IATF16949 Certified Facility
Cables: 100mm of 1.13
Connectors: I-PEX MHF4L
CE Certified, RoHS & REACH Compliant

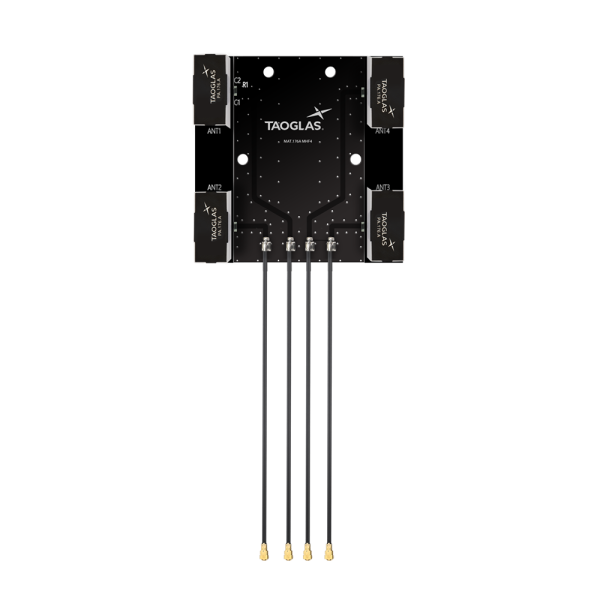

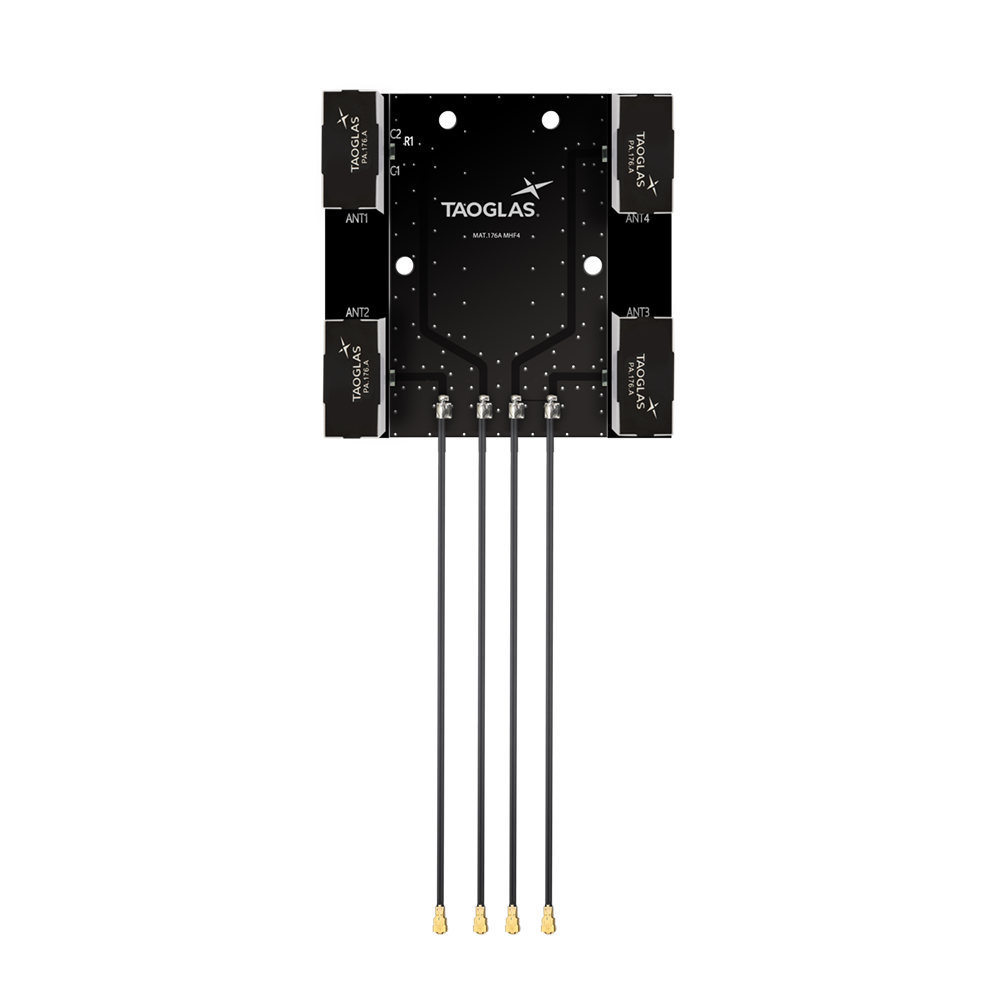

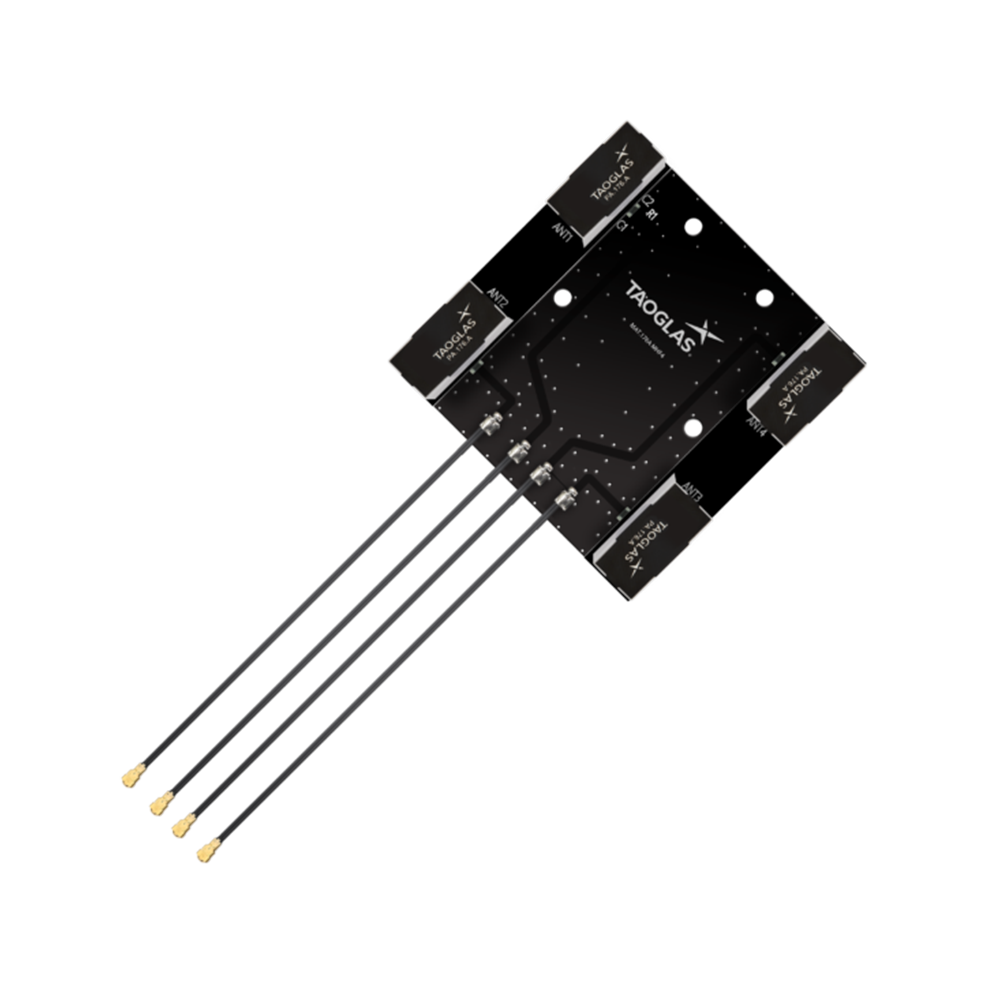

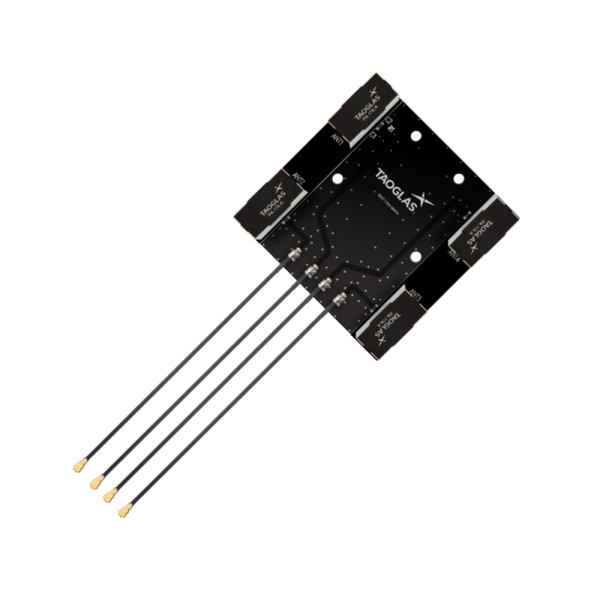

Image MAT.176A

MAT.176A

MAT.176A – High-Band 5G Antenna Board (60x60mm) with 4×4 MIMO operation

Overview

High-Band 5G Antenna Board (60x60mm) with 4×4 MIMO operation

The MAT.176A is a patent-pending, 5G/4G high-band cellular antenna board. The MAT.176A has been designed with 4 PA.176 antennas integrated on to one small antenna board – just 60*60mm. The MAT.176A is used for applications that require 4 high performing MIMO antennas on one board. It provides very high efficiency and gain across multiple cellular bands, operating between 1.7 – 6GHz. The MAT.176A has been designed to be used in conjunction with the next generation of 5G MIMO modules and routers.

Typical cellular applications include:
– Telematic Control and On-board Diagnostic Units
– First Responder and Public Safety Devices
– UAV’s and Robotics
– Media and Smart Home

The MAT.176A is manufactured in Taoglas’ IATF16949 Certified Facility and is suitable for automotive applications.

Taoglas provides optimization services for matching, and active TRP, TIS and RSE testing. The cable lengths and connectors are fully customizable subject to MOQ and NRE, for further information please contact your regional Taoglas customer support team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style PCB
Gain (Max) 5.24
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Termination Style Connector
Antenna Connector Type I-PEX MHF4
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 1710MHz - 5925MHz
Connector Polarity Normal
Cable Length (mm) 100
Packaging PE Bag, Carton
VSWR 0
Length (mm) 60
Width (mm) 60
Height (mm) 4
Weight (g) 50
