Flex PCB Antenna
Wide Band Cellular – 600MHz – 8000MHz
5G/4G fully Operational on all Sub-6GHz bands
Dimensions: 90x15x0.2 mm size
Connector: I-PEX MHF®I U.FL Compatible
Cable: 180mm of Ø1.37
RoHS & REACH Compliant

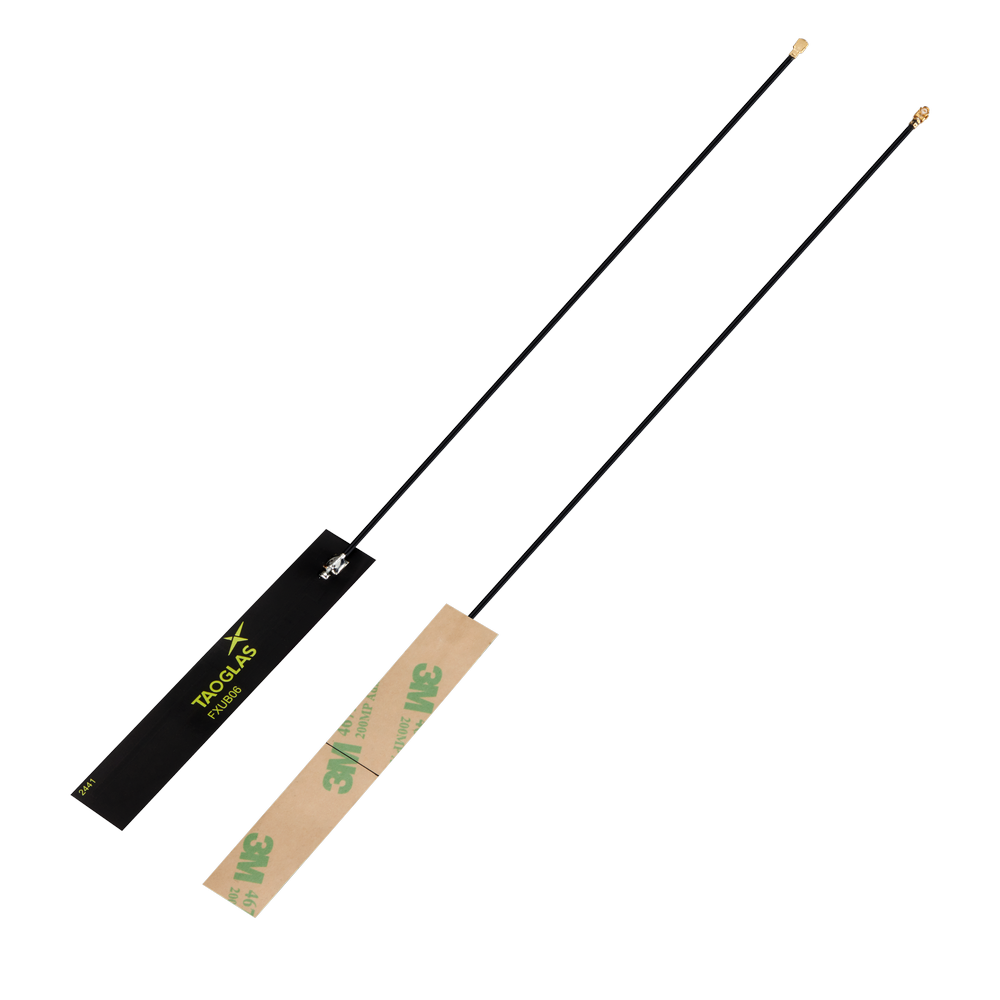

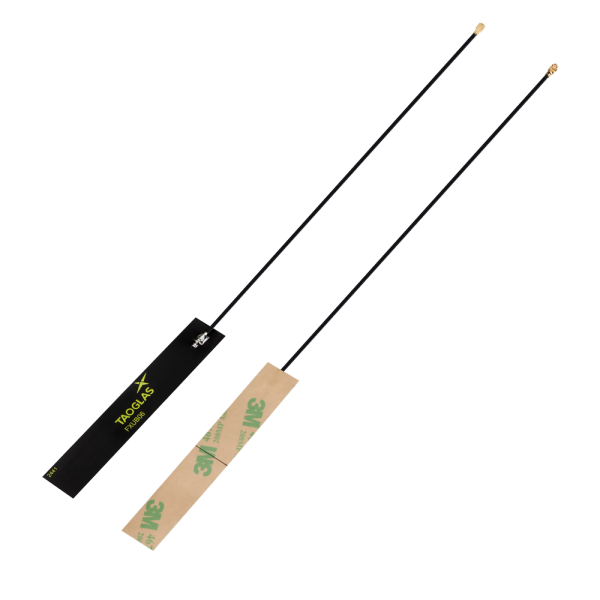

FXUB06 5G/4G Wideband 600MHz – 8000MHz Flexible Antenna
The Maximus Series FXUB06 is the smallest Taoglas wideband cellular flex PCB antenna by footprint size. Engineered to cover all global working frequencies in the 600-8000 MHz spectrum with efficiencies of up to 60%, it is the perfect solution when size constraints limit the use of a larger antenna. It covers all cellular 5G and 4G bands with fall back to 3G/2G, and it also operates at NB-IoT, Cat-M, Wi-Fi, ISM and Wi-Fi 6 frequencies. This wide band coverage enables designers to use only one antenna to cover all frequencies and future proofs device design for global connectivity.
Typical Applications for the FXUB06 include:
• Gateways, Routers and Private LTE Networks
• In-Building Connectivity and Security Systems
• Point of Sales Kiosks and Retail Digital Signage
• Connected Industry and Smart Metering
• Handheld Devices and Tablets
• Mobile Wireless Camera Systems
The antenna is delivered with a flexible body with ground breaking high efficiencies on all bands, ground-plane independent, with a cable and connector for easy installation. At just 90.4 × 15 × 0.24mm, the antenna is compact and ultrathin. It is integrated into a device by a simple “peel and stick” process, attaching securely to non-metal surfaces via strong, 3M adhesive. It is also the ideal antenna to fit in devices that are being retrofitted with wireless functionality, as it will cover non cellular applications such as 868, 915MHz or Zigbee applications. Its inherently wide bandwidth is more resistant to detuning than traditional small but narrow-band legacy antennas. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product, as the same antenna can be used if the radio module is upgraded to work on a different frequency band.
Cables and Connectors are fully customizable, subject to MOQ, for further information please contact your regional Taoglas Customer support team.
Name | Value |
---|---|
Technology | Embedded Antennas, Cellular |
Mechanical Style | Flex PCB |
Impedance | 50 |
Minimum Operating Temperature (℃) | -40 |
Maximum Operating Temperature (℃) | 85 |
Mounting Style | Adhesive |
Termination Style | Connector |
Antenna Connector Type | I-PEX MHF® I (U.FL) |
Length (mm) | 90 |
Width (mm) | 15 |
Height (mm) | 0.24 |
Cable Type | 1.37 Coax |
Connector Body Style | Right Angle |
Polarity | Linear |
Frequency Range | 600MHz - 8000MHz |
Connector Polarity | Normal |
Cable Length (mm) | 180 |
VSWR | <2:1 |
Weight (g) | 5 |
RoHS | Yes |
Gain (Max) | 8.13 |
