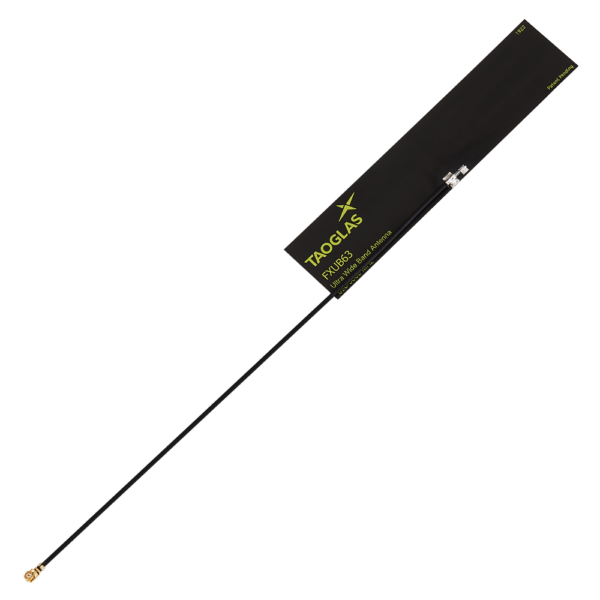

FXUB63 4G/LTE Flex Antenna, 150mm Ø1.37, I-PEX MHF® I (U.FL)

FXUB63.07.0150C

2G/3G/4G Wideband 698-3000MHz Flexible PCB Antenna
Typical 45%+ Efficiency and 5dBi+ Peak Gain
Ground Plane Independent
150mm Ø1.37 coaxial cable
I-PEX MHF® I (U.FL comp)
Patent Pending
Dimensions: 96*21*0.2mm

Buy Now Get Quote
Image FXUB63.07.0150C

FXUB63.07.0150C

FXUB63 4G/LTE Flex Antenna, 150mm Ø1.37, I-PEX MHF® I (U.FL)

Datasheet
Image Process Change
Image 3D Model
Overview
Extremely Efficient, Wide Band, Small Footprint Flexible LTE Antenna

The FXUB63 is an Extremely Efficient, Wide Band, Flexible LTE Antenna with a small footprint.  This easy to install durable, flexible polymer antenna operates on greater than 45% efficiency on LTE bands from 698 – 3000MHz.  For use in a wide array of applications which need LTE connectivity, including home automation, emergency services, automotive, healthcare, HD video, vending machines, digital signage, IoT gateways, smart grid, agriculture.

This antenna is a popular antenna due to its size, and powerful efficiency.  If you need a great performing low-cost LTE antenna, then the FXUB63 is the right choice.

Download the datasheet for more information.

Technical Specification
Name Value
RoHS Yes
Antenna Type Cellular
Mechanical Style Flex PCB
Gain 5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type IPEX MHFI
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 698MHz To 2690MHz
Connector Polarity Normal
Cable Length (mm) 150
Packaging Carton
VSWR 3:1
Length (mm) 96
Width (mm) 21
Height (mm) 0.2
Weight (g) 2
