MFX3.07 NB-IoT / CAT M1 Wideband Flexible Antenna, I-PEX MHF® I (U.FL)


For Mobile IoT Applications where Orientation of
Device is Changing
Ultra Low Profile
Linear Polarization at Zenith
Peak Gain 2dBi
I-PEX MHF® I (U.FL comp)
Dimensions: 96*21*0.2 mm
Φ1.13 mm, 100mm long coaxial cable
Adhesive Mount
Cable and connector fully customizable
RoHS & REACH Compliant

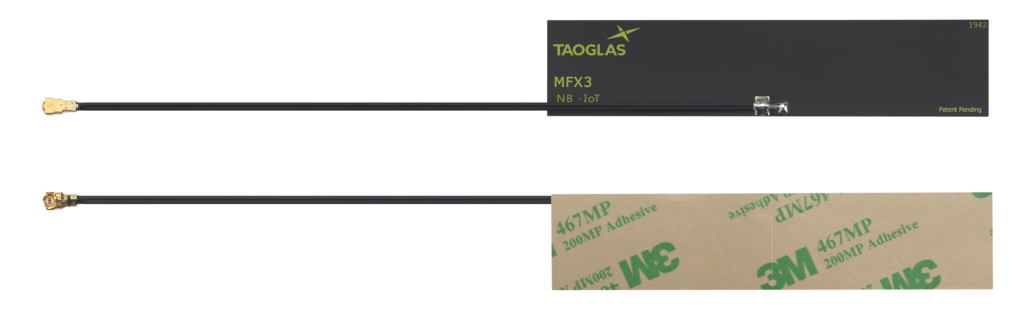

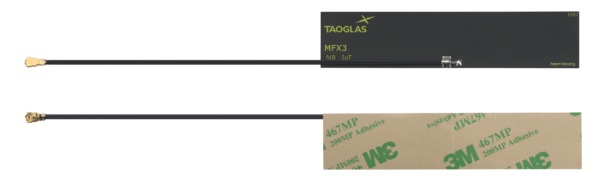

Image MFX3.07.0150C


MFX3.07 NB-IoT / CAT M1 Wideband Flexible Antenna, I-PEX MHF® I (U.FL)


NB-IoT / CAT M1 Wideband Flexible Antenna

The patent pending MFX3 ultra-wideband flexible antenna has been designed for NB-IoT / CAT M1 applications to provide highest efficiency and covers all working frequencies in the 698-3000MHz spectrum, covering all Cellular, 2.4GHz Wi-Fi, ISM and AGPS. The antenna is omni-directional, delivered with a flexible body with excellent efficiencies on all bands, ground independent, with cable and connector for easy installation.

NB-IoT / CAT M1is a low power wide area (LPWA) technology specifically designed for IoT and M2M. NB-IoT / CAT M1 technology offers lower maintenance cost, with greater efficiency and reliability by reducing power consumption and providing deeper penetration compared to standard cellular technologies. It operates on secure mobile networks making it suited to automotive, smart meter, medical and smart city applications.

The MFX3 flexible polymer antenna, at 96*21*0.2mm, is extremely thin, and truly ultra-wideband, with high efficiencies across the bands. It is assembled by a simple “peel and stick” process, attaching securely to non-metal surfaces via 3M adhesive. It enables designers to use only one antenna that covers NB-IoT, CAT M1 and all common LTE frequencies.

The MFX3 is made of durable flexible polymer and is designed to be mounted directly onto a plastic or glass cover. It offers a peak gain of 5dBi, an efficiency of more than 45% across the bands and is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product. It is ground plane independent and delivered with a cable and connector for easy connecting to the wireless module or customer PCB.

Like all similar antennas, care should be taken to mount the antenna at least 10mm from metal components or surfaces, and ideally 20mm for best radiation efficiency. Cables and connectors are customizable, for further information contact your regional Taoglas customer support team.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style Flex PCB
Gain (Max) 3.1
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Pin
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 699MHz - 2155MHz
Connector Polarity Normal
Cable Length (mm) 150
Packaging PE Bag, Carton
Length (mm) 96
Width (mm) 21
Height (mm) 0.2
Weight (g) 1.5
