MMCX Straight PCB Mount, Jack, Gold, 50Ω, Through Hole Pin

PCB.MMCXFSTJ.HT

MMCX(F) Jack Straight
PCB Mount Jack Connector Solder Attachment Thru Hole
Finish: Gold
Leg Length: 3mm
Total Length: 7.5mm

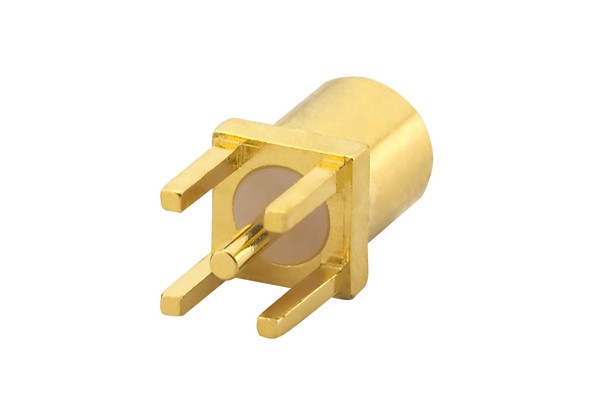

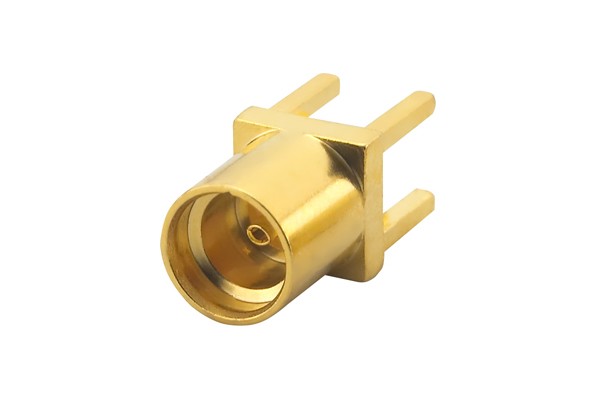

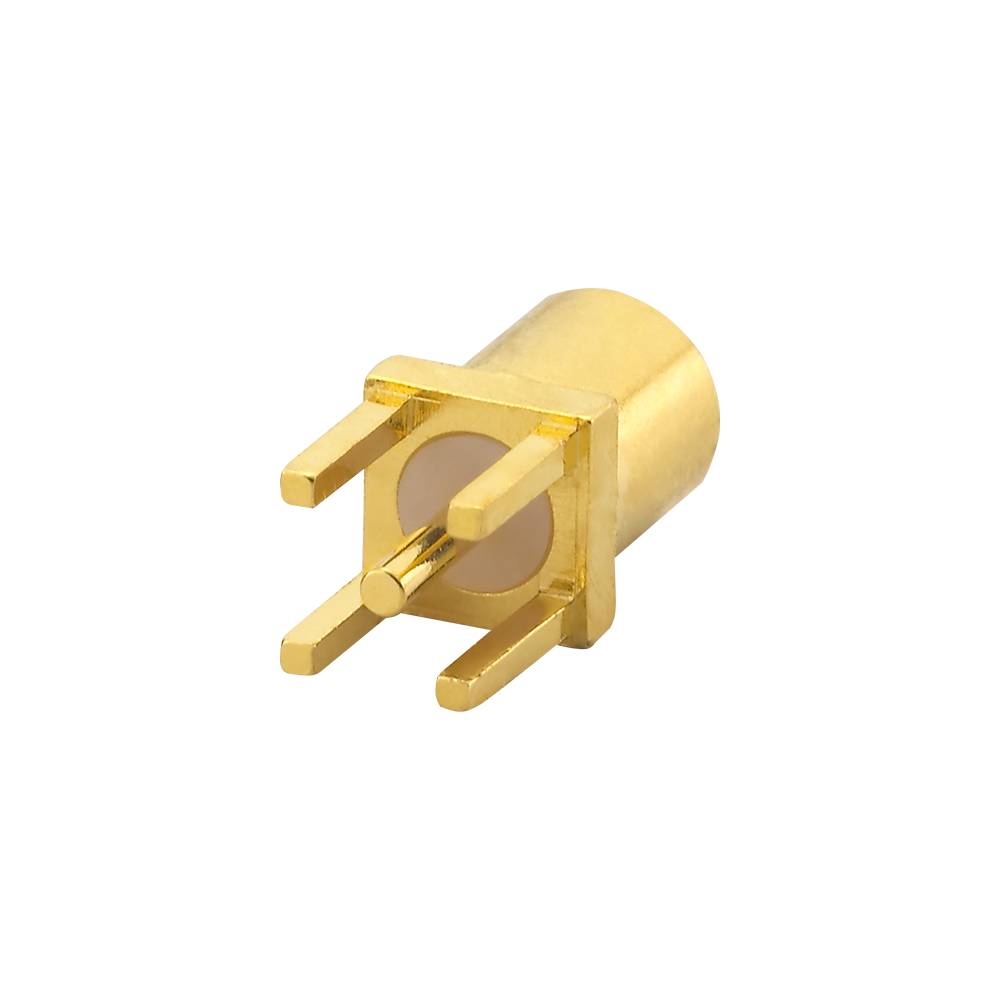

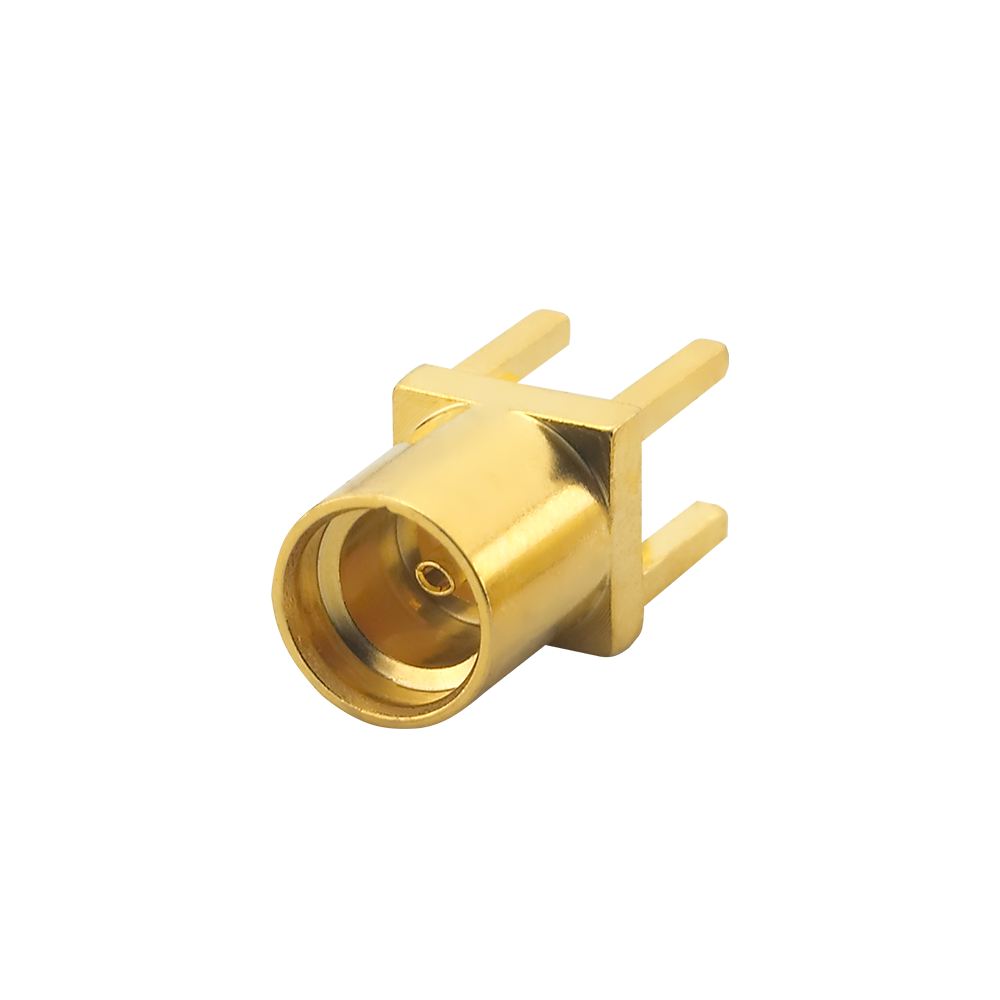

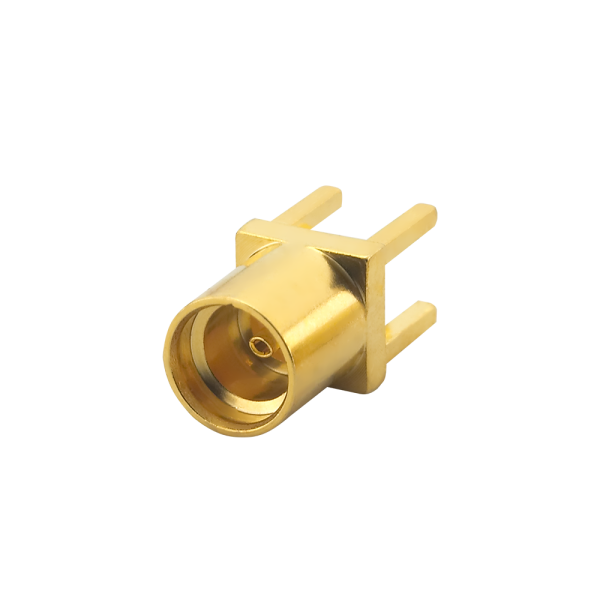

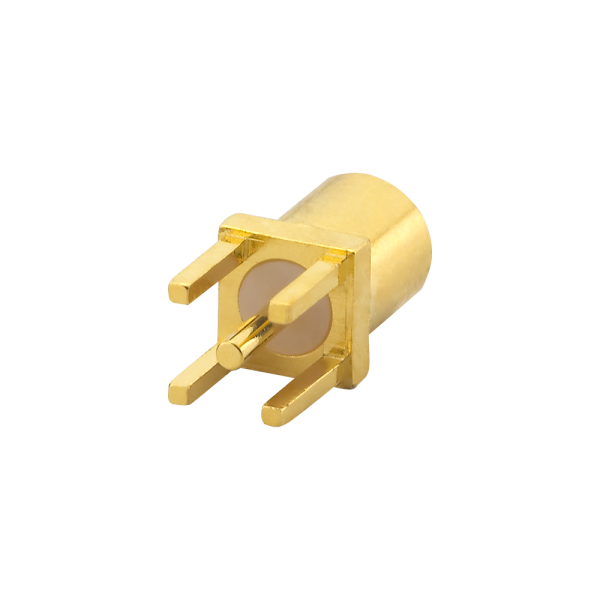

Image PCB.MMCXFSTJ.HT

PCB.MMCXFSTJ.HT

MMCX Straight PCB Mount, Jack, Gold, 50Ω, Through Hole Pin

Technical Specification
Name Value
Connector Style Straight
Connector Type MMCX
Contact Termination PCB
Shield Termination M
Impedance 50
Mounting Type Through-Hole
Frequency - Max (GHz) 6
Number of Ports 1
Housing Color Gold
Length (mm) n/a
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
