Phoenix GSA.8827R LTE I-Bar Adhesive Antenna, Diagnostic Resistor, 1M RG-174


Bands covered:
698MHz to 2700Mhz
1M RG.174 cable with SMA(M) connector
AntD© Antenna Diagnostic Compatible
Low profile for easy installation
Fully customizable cable length and connector
Dimensions: 105mm*30mm*7.7mm
CE Certified

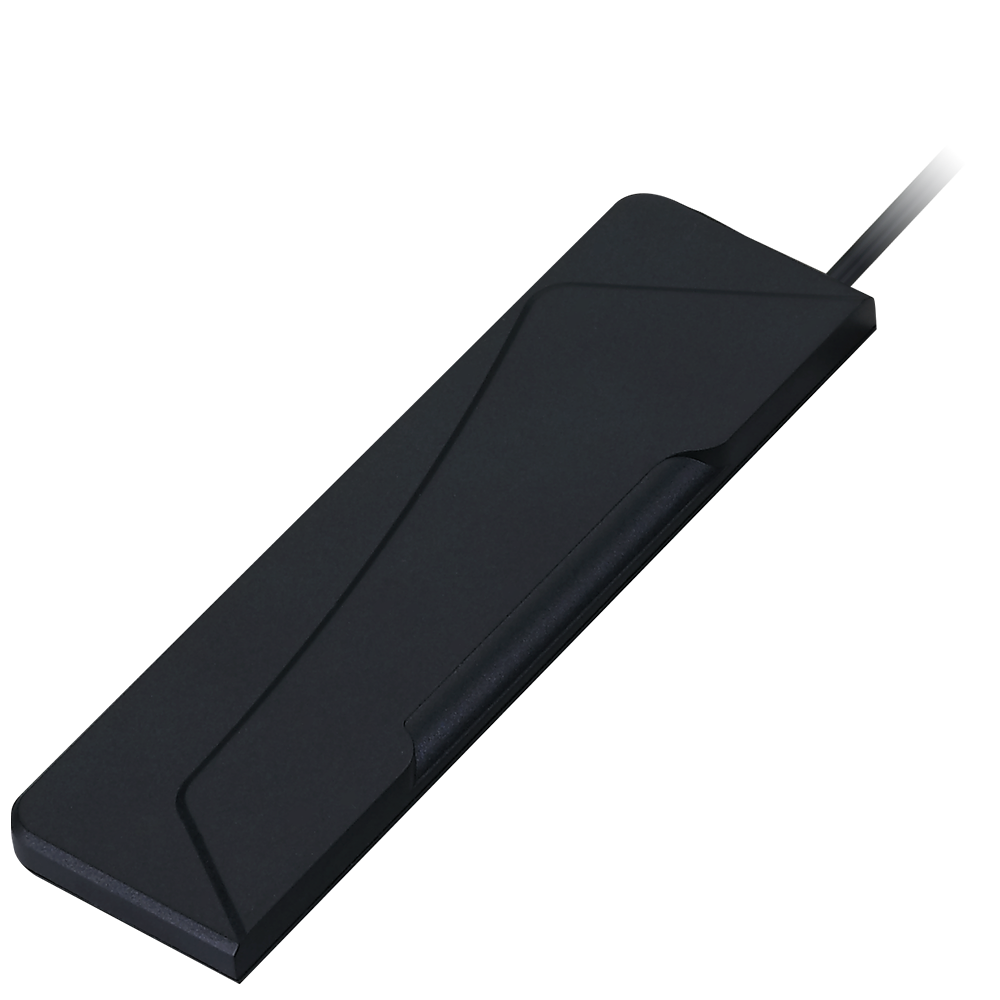

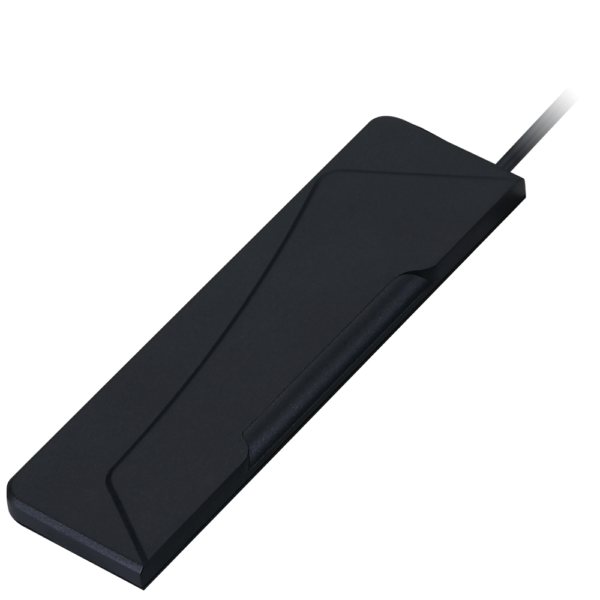

Image GSA.8827R.A.101111


Phoenix GSA.8827R LTE I-Bar Adhesive Antenna, Diagnostic Resistor, 1M RG-174

Phoenix 2G/3G/4G Wideband I–Bar Antenna

The GSA.8827R Phoenix Ultra-Wideband I-Bar antenna is a robust high-efficiency cellular antenna for use with all 4G/3G/2G cellular modules worldwide. Its slim-line design allows for covert and convenient installation in automotive vehicles, its omnidirectional gain across all bands ensures constant reception and transmission. GSA.8827R is manufactured and tested in a TS16949 first tier automotive approved facility, and it has gone through full PPAP design, reliability and quality audits.

The Phoenix finds its application particularly in a first-tier automotive application, aftermarket, and telematics. With its unique ultra-wideband dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105mm*30mm. This antenna is designed to be mounted on glass or plastic (not on metal). It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant. Cable lengths and connectors are fully customizable. GSA.8827R features Taoglas’ AntD© antenna diagnostic technology.

AntD© allows connected radio products using the latest cellular modules and recommended circuits from Telit and uBlox to perform diagnostics on the antenna. This includes detection that the proper antenna is connected and that the connection isn’t shorted or broken. Contact Taoglas engineering for examples on how to implement AntD© antenna diagnostics in your product.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity Linear
Frequency Range 600-3500MHz
Connector Polarity None
Cable Length (mm) 1000
Packaging PE Bag, Carton
RoHS Yes
Gain (Max) 3.25
Length (mm) 105
Width (mm) 30
Height (mm) 7.7
Weight (g) 36
