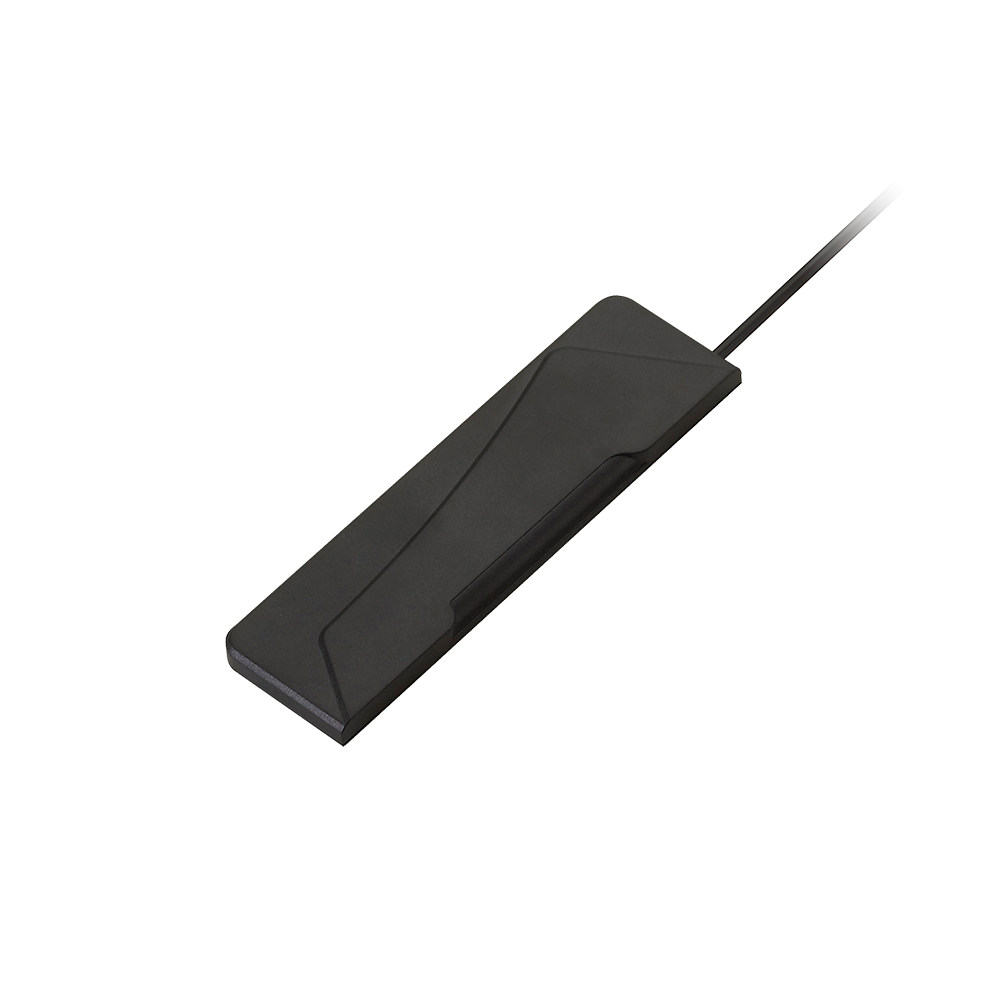

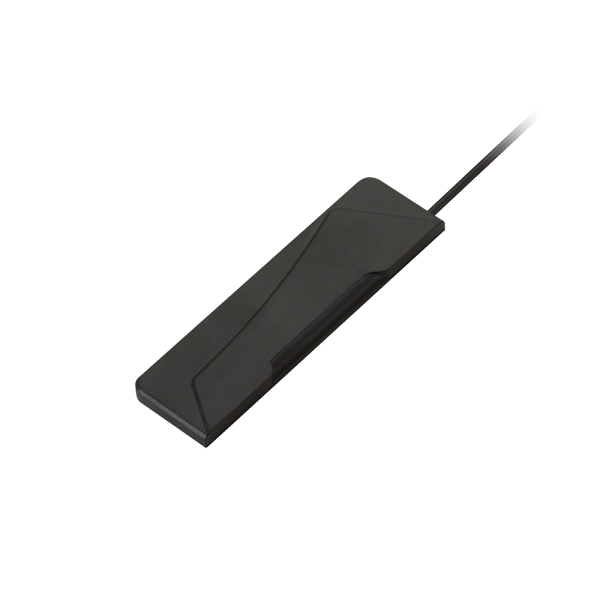

Phoenix WSA.2458 Dual Band Wi-Fi I-Bar 2.4/5.8GHz Antenna
WSA.2458.A.101151Dual Band Wi-Fi I-Bar 2.4/5.8GHz
Wi-Fi/WLAN Adhesive Mount Antenna
Low Profile for Ease of Installation
1m RG-174 cable with RP-SMA(M) connector
Dimensions: 105*30*7.7mm
Fully Customizable Cable and Connector
WSA.2458.A.101151
Phoenix WSA.2458 Dual Band Wi-Fi I-Bar 2.4/5.8GHz Antenna
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, Wi-Fi/Bluetooth |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | RP-SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2.4 / 5.8GHz |
| Connector Polarity | Reverse |
| Cable Length (mm) | 1000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP65 |
| RoHS | Yes |
| Gain (Max) | 4.6 |
| Wi-Fi Bands | 2.4/5.8GHz |
| Length (mm) | 105 |
| Width (mm) | 30 |
| Height (mm) | 7.7 |
| Weight (g) | 50 |
