Pylon – Wideband 5G Flexible PCB antenna 600MHz – 8GHz, with I-PEX MHF®I(U.FL)

FXUB85.07.0150C

Ultra-wide bandwidth, covering all 5G/4G/3G applications
600 MHz – 8 GHz Operating Frequency
Covers Full Wi-Fi Spectrum Including Wi-Fi 6
Small form factor
High efficiency
Excellent radiation pattern quality
Cable: 150mm of 1.37mm coaxial cable
Connector: I-PEX MHF®I (U.FL Compatible)
RoHS and Reach Compliant

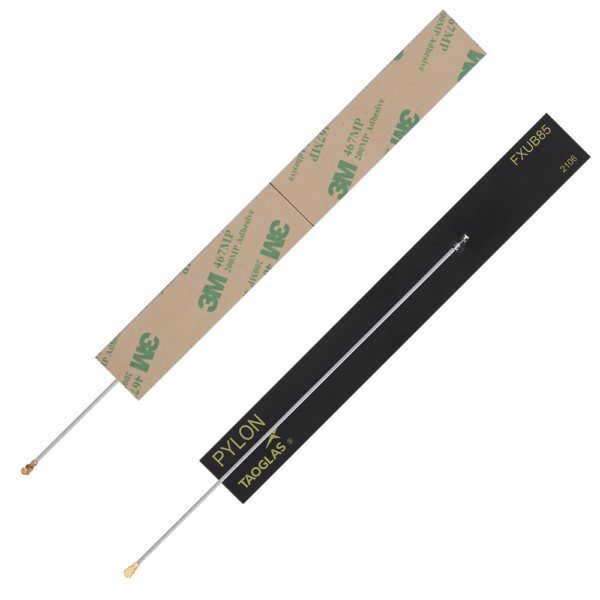

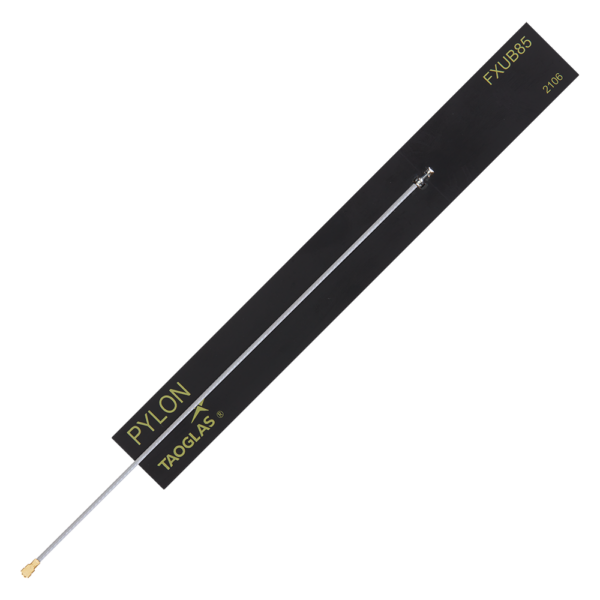

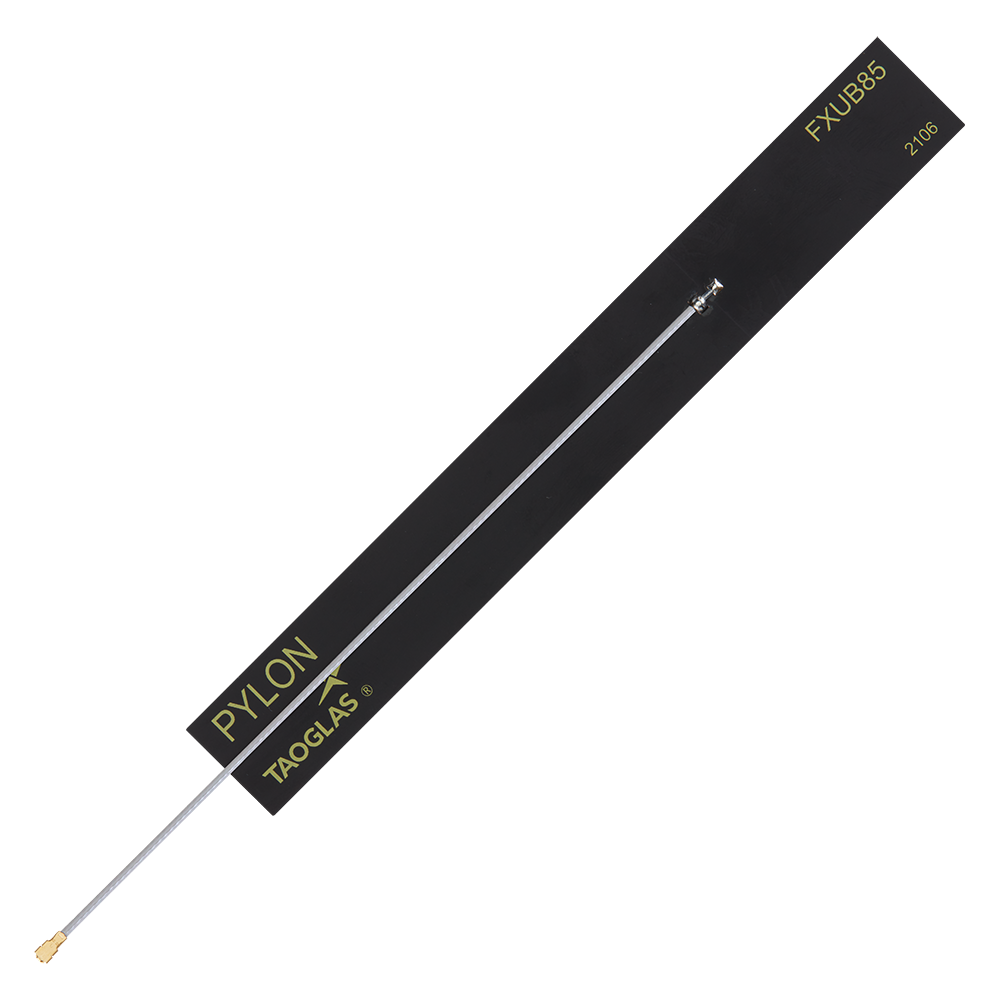

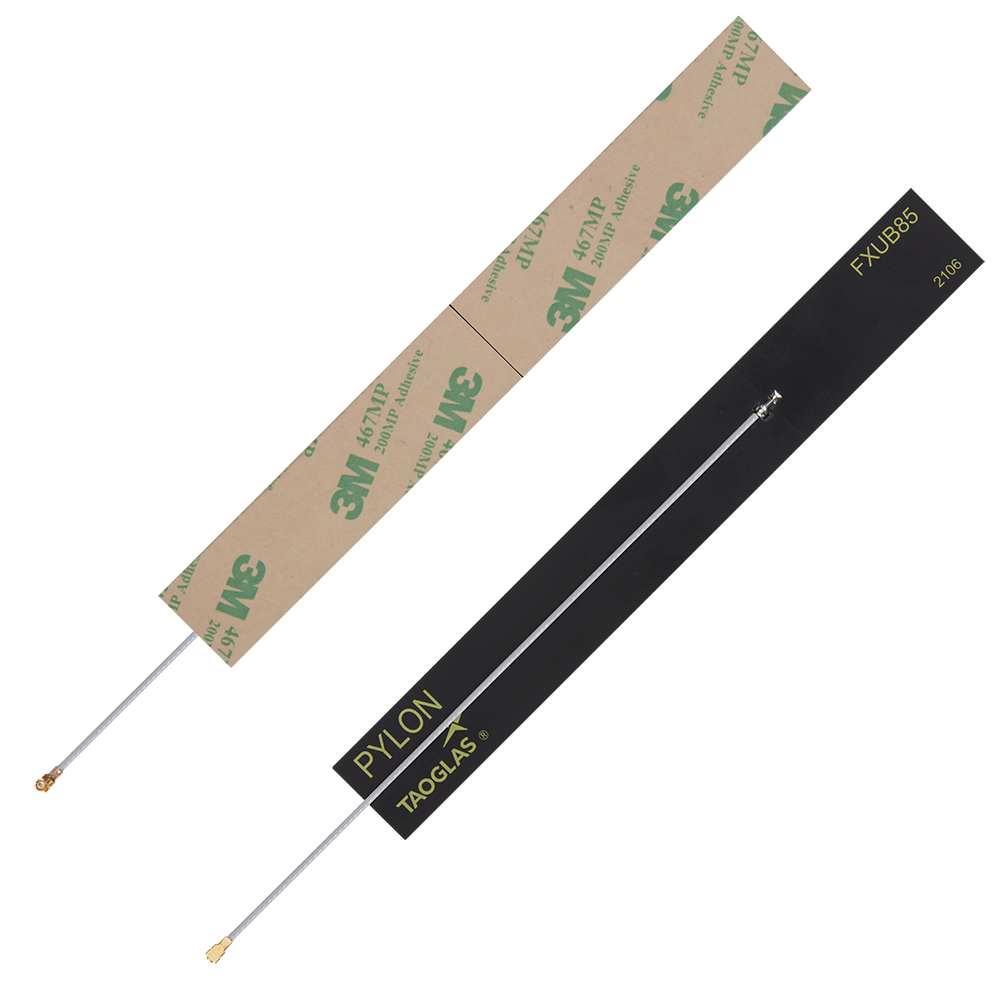

Image FXUB85.07.0150C

FXUB85.07.0150C

Pylon – Wideband 5G Flexible PCB antenna 600MHz – 8GHz, with I-PEX MHF®I(U.FL)

Overview

Wideband 5G flexible PCB antenna 600MHz – 8GHz

The Taoglas Pylon FXUB85 is an ultra-wideband 5G flexible PCB antenna designed for the next generation of connectivity. The Pylon FXUB85 provides best-in-class performance for all 5G sub 6 GHz (FR1) and Wi-Fi 6 applications. Covering the entire spectrum from 600 MHz – 8 GHz, the Pylon allows for coverage in the 3.5 GHz CBRS bands, the 1400 MHz 5G NR bands 74,75,76, and the 3.6-4.6 GHz Japan 5G NR bands 77,78,79. It maintains excellent performance in all the traditional 4G LTE bands, including 4G LTE band 71 and allows for fallback to 3G/2G bands when necessary.

The Pylon FXUB85 PCB has been expertly designed by Taoglas, to be the smallest size possible. At just 163 x 21 x 0.3mm, it can be neatly placed in the next generation of connectivity devices. As devices become more compact, the Pylon alleviates size constraint issues. The antenna performs well at a reasonable distance, typically 20mm, from a ground and has demonstrated ease of integration into complex end user equipment.

Typical Applications Include:
– IoT and Connected Devices
– UAVs and Autonomous Vehicles
– Precision Tracking
– Industrial Robotics and Factory Automation
– Field and Body Sensors and Wearables

The Pylon FXUB85 antenna has a typical efficiency of more than 70% across both low and high frequency bands. The Pylon is designed to be mounted directly onto a plastic or glass enclosures. It is an ideal choice for any device maker that desires ease of integration and needs to keep manufacturing costs down over the lifetime of a product without compromising performance.

Cable and connector are fully customizable, contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, Cellular
Mechanical Style Flex PCB
Gain (Max) 1.9
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Cable Type 1.37 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 617MHz - 7125MHz
Connector Polarity Normal
Cable Length (mm) 150
Packaging Carton
VSWR 0
Length (mm) 163
Width (mm) 21
Height (mm) 0.3
Weight (g) 1.9
