Radius NFR.03 External Bracket NFC Antenna with ACH Connector

NFR.03

External Wall Mount NFC Antenna
Frequency: 13.56MHz
IP67 Waterproof
Cable: 5M AWG28 Cable
Connector: ACH (F)
Dimension: 75*75*27.3mm
RoHS and REACH Compliant

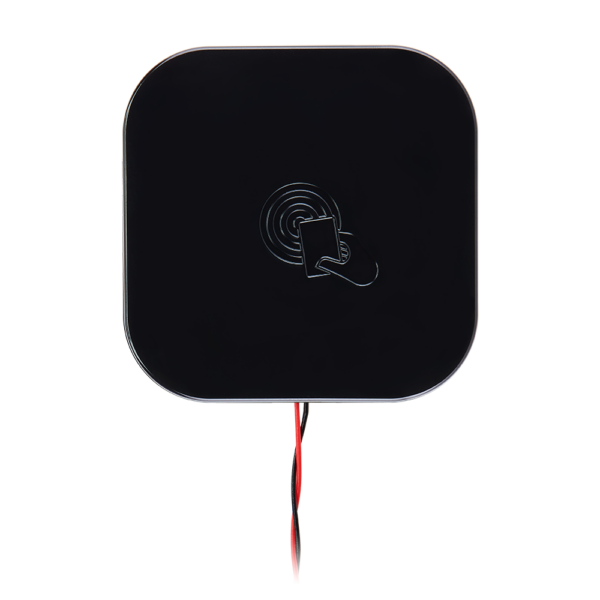

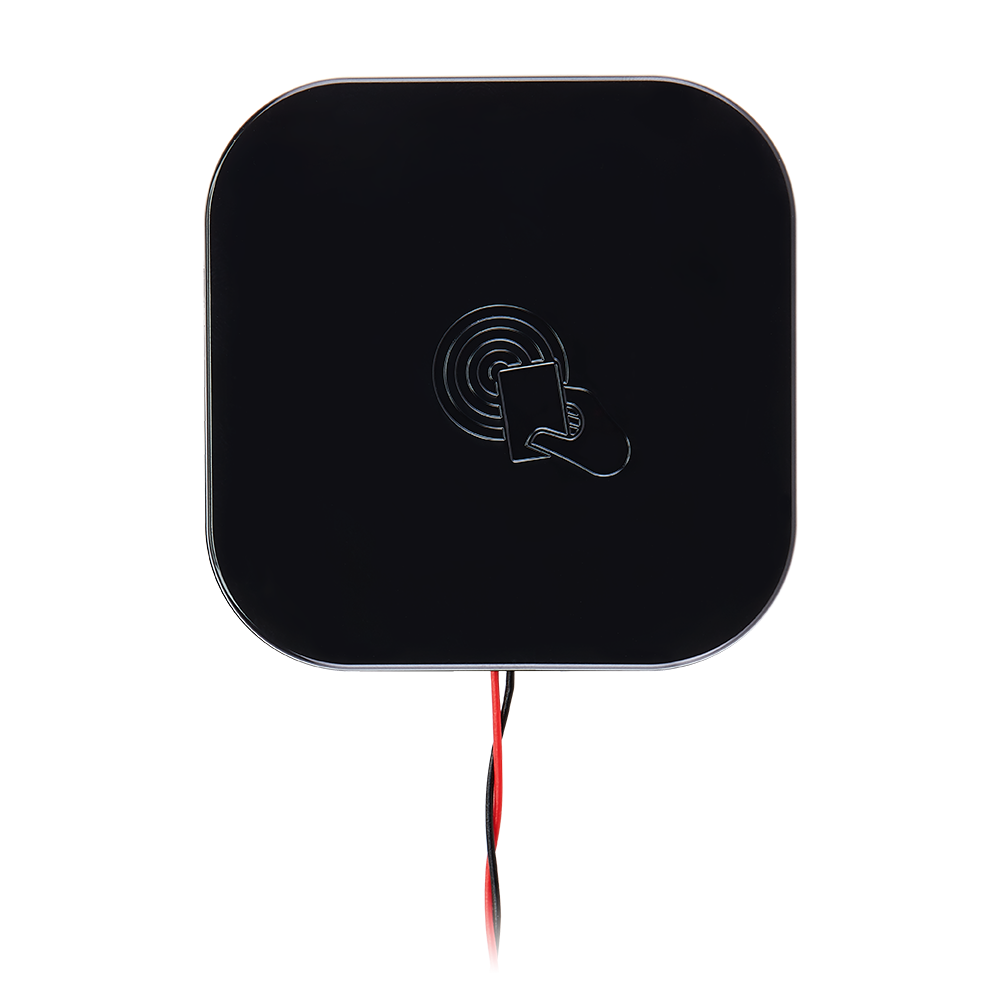

Image NFR.03

NFR.03

Radius NFR.03 External Bracket NFC Antenna with ACH Connector

Overview

The Radius NFR.03 antenna is an external bracket-mount NFC (Near Field Communication) antenna for use with NFC readers, enabling your device to execute point-to-point data transmission without contact. This design is matched for optimal performance with typical NFC chipsets.

Typical Applications
  • Contactless Payment
  • RFID
  • Security

The IP67 waterproof enclosure ensures that it can be used for both indoor and outdoor environments. With its own mounting bracket, the NFR.03 can be easily installed on a wall or metal panel. For robust performance in outdoor applications, the NFR.03 antenna and mounting bracket are protected by a heat-resistant, high-impact-resistant, UV-stabilized ASA enclosure.

A 5m 28AWG Twisted Pair cable with ACH(F) connector is connected to the housing. Custom cable lengths or versions with an embedded RJ45 Jack for Ethernet cables are also available. Contact your regional Taoglas sales office for support.

Technical Specification
Name Value
Antenna Type External Antennas, NFC
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type RJ45
Cable Type Ethernet
Connector Body Style Straight
Polarity Vertical
Frequency Range 13.56MHz
Connector Polarity Normal
Cable Length (mm) 5000
Packaging Tray, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3
Length (mm) 75
Width (mm) 75
Height (mm) 27.3
Weight (g) 55
