Radius NFR.01 External Bracket Mount NFC Antenna with RJ45 Connector

NFR.01

For use with NFC readers
13.56MHz Frequency: 13.56MHz
1M Ethernet Cable
RJ45 Jack connector
Dimensions: 75*75*27.9mm
RoHS Compliant

For more information please contact our Customer Services Team.

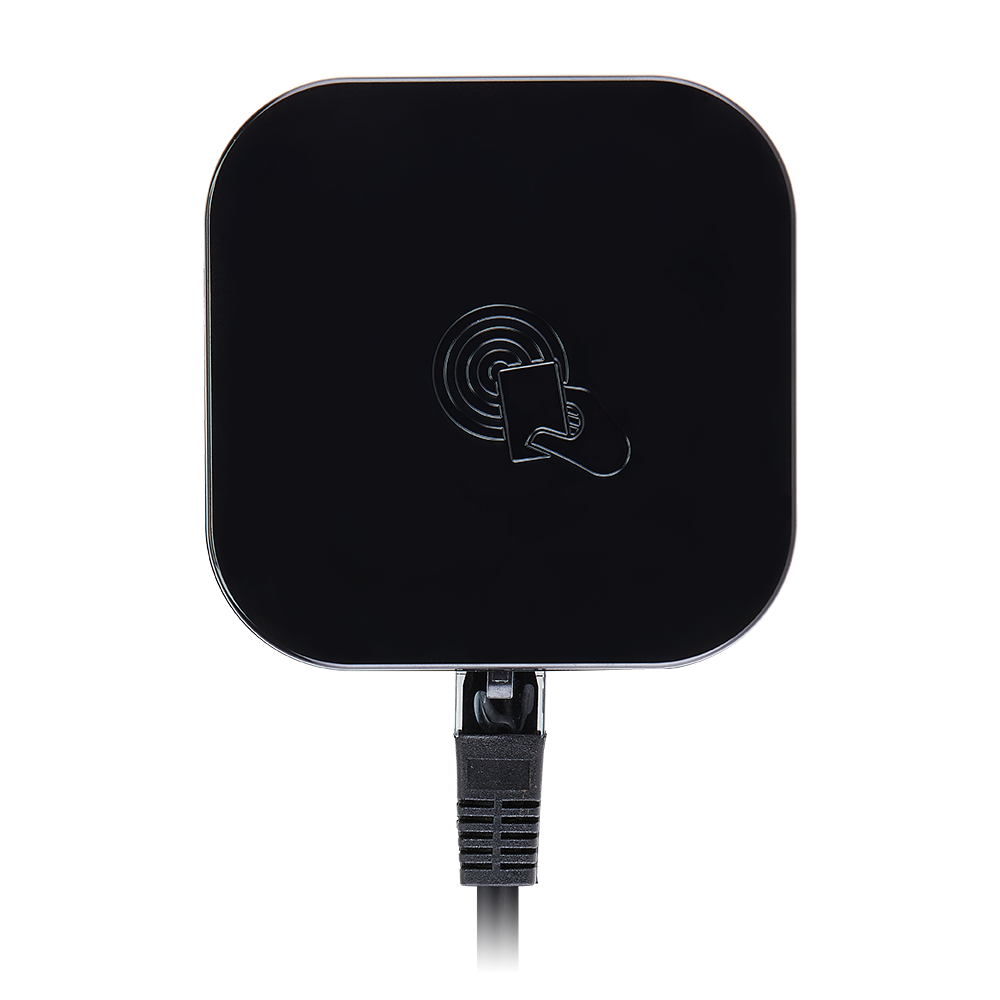

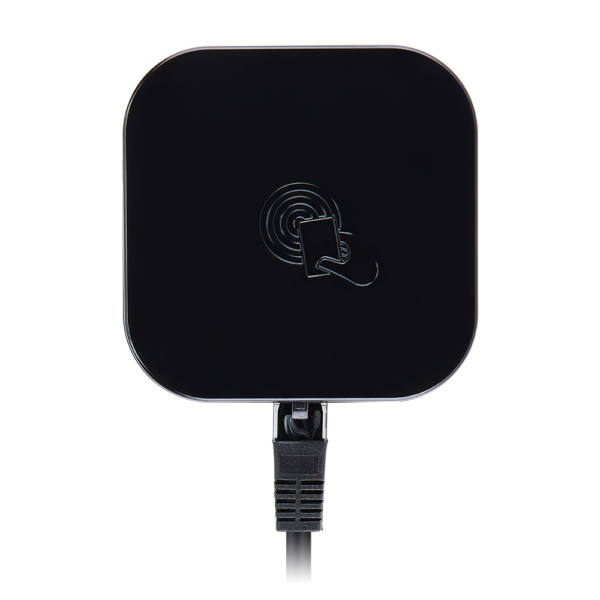

Image NFR.01

NFR.01

Radius NFR.01 External Bracket Mount NFC Antenna with RJ45 Connector

Overview
Near Field Communication Antenna

The Radius NFR.01 is an external bracket mount NFC (Near Field Communication) antenna for use with a reader.

Its IP67 waterproof characteristics can be used for any outdoor and indoor environments. This enables your device to execute point-to-point data transmission without contact. This design is matched for optimal performance with typical NFC chipsets.

With its own mounting bracket, the NFR.01 can be easily installed on a wall or metal panel. To strengthen robustness in outdoor applications, the NFR.01 antenna and mounting bracket are protected by heat-resistant, high-impact strength, UV stabilized material. An RJ45 Jack connector is embedded in the housing to allow for ease of connection with Ethernet cables to the reader.

A 1m Ethernet cable is included in the kit for connection purposes. Custom cable length or type such as twisted pair is also available.

Contact your regional Taoglas sales office for any product support. Or download the datasheet.

Technical Specification
Name Value
Antenna Type External Antennas, NFC
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Bracket
Termination Style Connector
Antenna Connector Type ACH
Cable Type AWG 28.00
Connector Body Style Straight
Polarity Vertical
Frequency Range 13.56MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Tube, Carbon
VSWR 0
RoHS Yes
Gain 8
Length (mm) 75
Width (mm) 75
Height (mm) 27.9
Weight (g) 32
