Radius NFR.02 External Bracket NFC Antenna with ACH Connector

NFR.02

For use with NFC readers
Frequency: 13.56MHz
IP67 Waterproof
Cable: 1M AWG28
Connector: ACH(F)
Dimensions: 75*75*27.9mm
RoHS and REACH Compliant

For more information please contact our Customer Services Team.

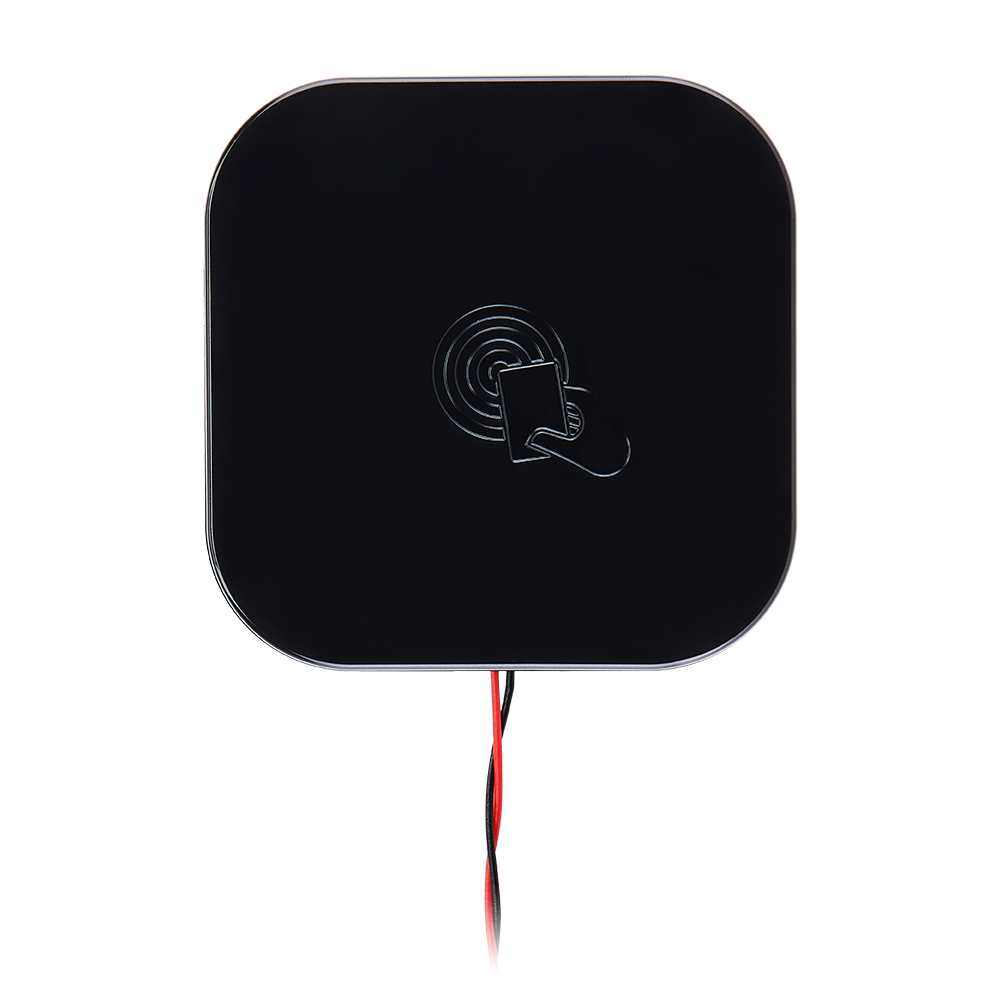

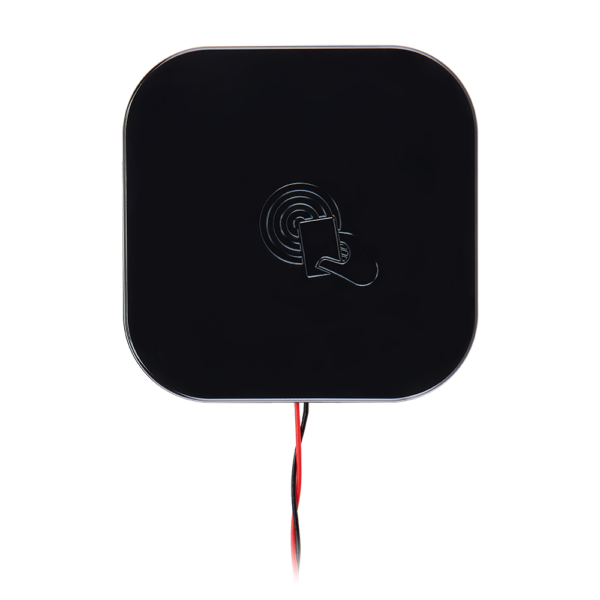

Image NFR.02

NFR.02

Radius NFR.02 External Bracket NFC Antenna with ACH Connector

Overview
Bracket NFC Antenna with ACH Connector

The Radius, NFR.02, is an external bracket mount NFC (Near Field Communication) antenna for use with NFC readers. This enables your device to execute point-to-point data transmission without contact. This design is matched for optimal performance with typical NFC chipsets. The IP67 waterproof enclosure ensures that it can be used for both indoor and outdoor environments. With its own mounting bracket, the NFR.01 can be easily installed on a wall or metal panel. To strengthen robustness in outdoor applications, the NFR.02 antenna and mounting bracket are protected by a heat-resistant, high-impact resistant UV stabilized ASA enclosure.

A 1m 28AWG Twisted Pair cable with ACH(F) connector is connected to the housing. Custom cable lengths or a version with an embedded RJ45 Jack for ethernet cables are also available.

Contact your regional Taoglas sales office for any product support. Or download the datasheet.

Technical Specification
Name Value
Antenna Type External Antennas, NFC
Impedance 50
Minimum Operating Temperature -55°C
Maximum Operating Temperature 85°C
Mounting Style Wall
Termination Style Connector
Antenna Connector Type ACH
Cable Type 28 AWG
Connector Body Style Straight
Polarity Linear
Frequency Range 13.56MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Tray, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 6
Length (mm) 75
Width (mm) 75
Height (mm) 27.9
Weight (g) 32
