Sentinel MA251 Adhesive Mount 2*LTE MIMO Antenna

MA251.A.BI.001

2*LTE MIMO Antennas
Adhesive Mount
Smallest High Performance MIMO
4G Allowing Fallback to 3G & 2G
High Efficiency
Low Profile Housing – Only 14mm in Height
2M CFD-200 and RG-174 Cables
SMA(M) Connectors
Dims: 139*76*14mm

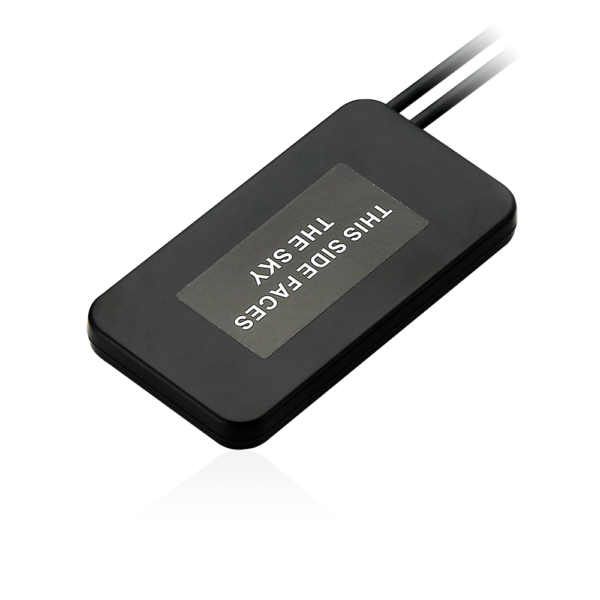

Image MA251.A.BI.001

MA251.A.BI.001

Sentinel MA251 Adhesive Mount 2*LTE MIMO Antenna

Overview

The MA251 Sentinel 2in1 adhesive mount 4G 2*LTE MIMO antenna is an omnidirectional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications worldwide. It is designed to be mounted directly on glass or plastic in the interior of vehicles. It is the smallest high-performance solution in the market, 50% smaller than the previous generation, with higher efficiency and wider bandwidth to cover emerging LTE bands. Its performance is comparable with much larger permanent roof mount antennas and now offers a convenient and economical alternative in-cabin mounting solution.

Typical applications include;
  • HD video over LTE
  • First Responder and Emergency Services
  • Automotive vehicle tracking
  • Telematics

It is mounted via high quality, first tier automotive approved, 3M adhesive. In-house world leading dielectric ceramic antenna technology inside allows for smaller size antennas without loss in efficiency. It delivers powerful 2*2 MIMO antenna technology for worldwide 4G LTE bands at 700MHz/ 800MHz/ 1700MHz/ 1800MHz /2300MHz /2600MHz, while allowing fallback to all common worldwide 3G and 2G frequency bands. 4G wireless applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Linear
Frequency Range 698MHz To 2690MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging PE Bag, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain 3.47
Length (mm) 139.27
Width (mm) 76.27
Height (mm) 14
Weight (g) 235
