Shockwave TLS.01 5G/4G Permanent Mount Antenna, 3m CFD200/TGC200 SMA(M)

TLS.01.305111

Applicable for 5G/4G, Cat M1 & NB-IoT bands
Over 45% efficiency and 2.2 dBi gain
Mechanically robust for indoor/outdoor applications
Height: 79.45mm (3.13″); Diameter: 42mm (1.65″)
IP67 Waterproof
IK10 Rated Enclosure
Cable: Low loss CFD-200/TGC-200 cable, 3 meters
Connector: SMA(M)
RoHS & Reach Compliant

Image TLS.01.305111

TLS.01.305111

Shockwave TLS.01 5G/4G Permanent Mount Antenna, 3m CFD200/TGC200 SMA(M)

Overview
Wideband Permanent Mount Antenna

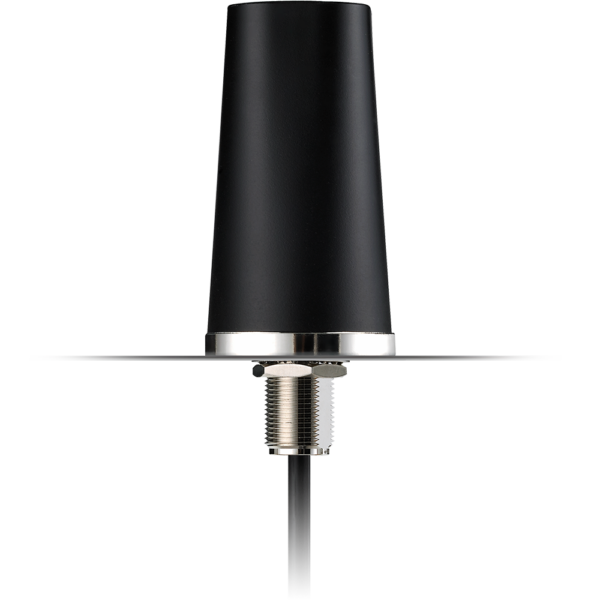

The Shockwave TLS.01.305111 is a wideband permanent mount antenna. It is a waterproof IP67, external 5G/4G cellular and GPS antenna operating at 600-6000MHz. It has been designed to be used on a ground plane. It can be used in mobile and fixed applications for 5G/4G wireless such as:

  • Public safety
  • HD video streaming
  • Utilities and smart cities
  • Fleet management
  • Precision agricultural
  • Industrial applications

This antenna has superior performance over wide bands compared to traditional whip antennas. Up to 77% efficiency and with a minimum 2.2dBi peak gain over all cellular bands result when mounted on a 30 x 30cm ground plane. Stable radiation patterns over low angles provide consistent gain in the horizontal plane, meaning that it is especially suitable for cellular applications.

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof o-rings around the bottom base prevent water from leaking under the antenna.

The TLS.01 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for 2G/3G/4G applications either in indoor or in harsh outdoor environments.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity Vertical
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) -1.14
Length (mm) 41.06
Width (mm) 42
Height (mm) 79.45
Weight (g) 270
