TG.55.8113 – 5G/4G Terminal Mount Monopole Antenna


Covering Sub 6GHz 5GNR Bands
Covering Worldwide LTE Bands
600MHz-6GHz Operation
High Efficiency up to 80%
3G/2G Fallback
90 Degree Hinged Right Angle SMA (M) Connector
Straight Dimensions: 172 x 23.9 x 13 mm
Right Angle Dimensions: 148 x 42.4 x 13 mm
RoHS & REACH Compliant

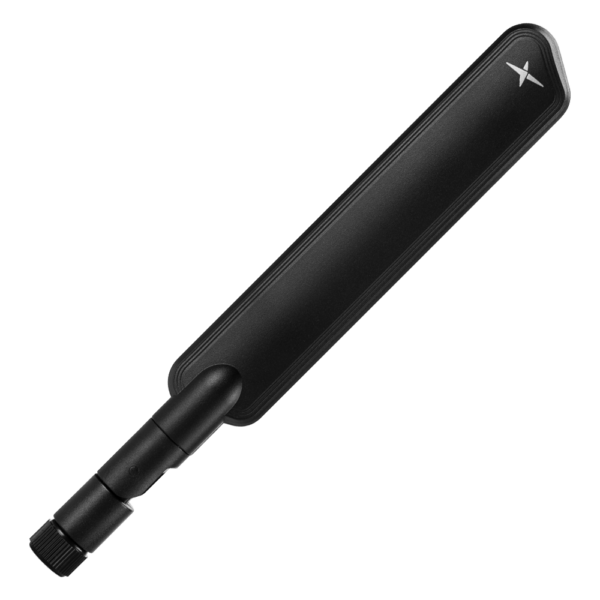

Image TG.55.8113


TG.55.8113 – 5G/4G Terminal Mount Monopole Antenna

5G/4G Terminal Mount Monopole Antenna with 90 Degree Hinge

The Taoglas TG.55.8113 is a 5G/4G monopole antenna, designed primarily for use with modules and devices that require high efficiency and peak gain. It delivers best in class throughput on all major cellular bands worldwide, perfect for access points, terminals, and routers. The TG.55 covers many 5G NR Sub 6GHz bands including the new Extended LTE Band 71. It has an SMA (M) connector as standard and is an ideal solution for any device requiring reliable performance in a slim form factor.

Typical Applications include:
  • Gateways & Routers
  • Smart Metering
  • Vending Machines
  • Industrial IoT
  • Smart Home
  • Connected Enterprise

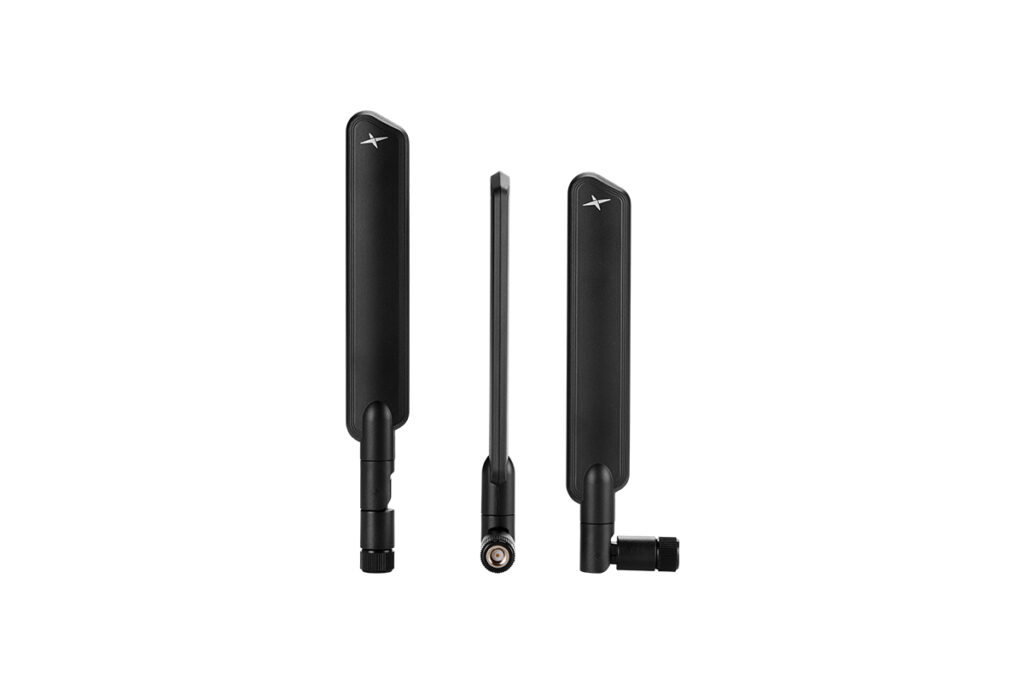

The TG.55 exhibits an efficiency of up to 80% across wideband 5G/4G bands and is backward compatible with 3G/2G cellular applications. The TG.55 is a fully omnidirectional antenna as seen in the radiation patterns and is stable across all bands. The SMA (M) connector hinge mechanism allows the antenna to be rotated into the preferred orientation which helps to avoid other antennas or objects. This also helps with isolation by pointing the antennas in different directions when used in MIMO systems or when other antennas are present on the same device. The antenna blade can swivel 90 degrees from the connector accommodating different installation configurations.

The TG.55.8113 is also available with a white enclosure – TG.55.8113W. The connector can also be customized based on an MOQ.

Contact your regional Taoglas customer support team to request these services or additional support to integrate and test this antenna’s performance in your device.

Technical Specification
Name Value
Antenna Type External Antennas, Cellular
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type SMA
Connector Body Style Hinged
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
RoHS Yes
Gain (Max) 4.8
Length (mm) 23.88
Width (mm) 7.4
Height (mm) 172
Weight (g) 24.3
