Stingray MA203 2in1 GPS/GALILEO & 3G/2G Adhesive Mount Antenna, SMA(M) Ø55mm*12mm

MA203.A.AB.035

Stingray Adhesive Glass Mount
GPS/GALILEO/Penta-band GSM/CDMA/UMTS/WCDMA Puck Antenna
High Grade 3M Double Sided Tape
3M RG-174 – GPS/GALILEO-SMA(M), GSM-SMA(M)
55mm*55mm*12mm

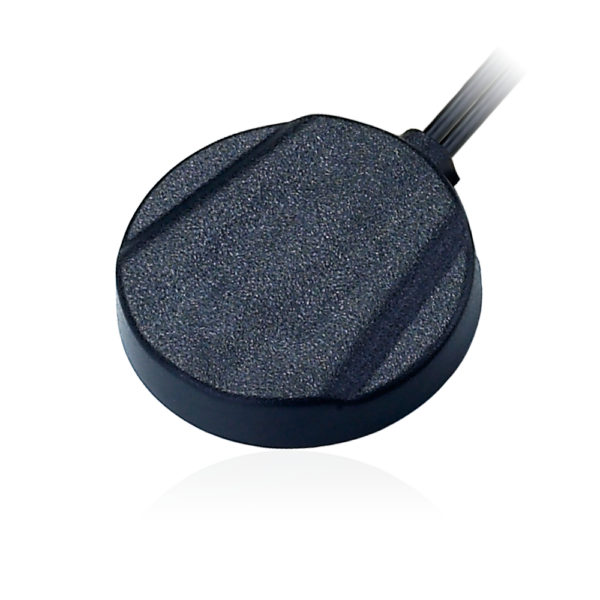

Image MA203.A.AB.035

MA203.A.AB.035

Stingray MA203 2in1 GPS/GALILEO & 3G/2G Adhesive Mount Antenna, SMA(M) Ø55mm*12mm

Overview

Ideal for applications with multiple requirements

This is a combination high performance GPS/GALILEO and Penta-band Cellular (GSM / CDMA / PCS / DCS / UMTS / GPRS / EDGE / HSPA) antenna to simplify AVL or Fleet management antenna systems worldwide. Its high-quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination of a high gain GPS/GALILEO antenna and a leading edge penta-band cellular antenna is ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. The standard version has 3 metres RG174 cable and SMA(M) connector on both GPS/GALILEO and Cellular. The cables and connectors are completely customizable according to customer request.

GPS/GALILEO

  • High LNA Gain up to 32 dB
  • Antenna Gain 30 ± 2 dB
  • Miniaturized to 55.15x12mm
  • Low Noise 1.5 dB max

Cellular

  • Advanced penta-band cellular antenna
  • (GSM/CDMA/PCS/DCS/UMTS/GPRS/EDGE/ HSPA)

Other

  • Water Resistant IP 65 (IP 67 MA.203w version also available)
  • Quality textured covert design. Low profile
  • UV resistant ABS housing
  • Comes with high grade 3M double sided tape for quick and easy mounting
  • Customizable cables and connectors
Technical Specification
Name Value
Antenna Type Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 80°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type RG-174
Connector Body Style Straight
Polarity RHCP
Frequency Range 800MHz To 2200MHz
Connector Polarity Normal
Cable Length (mm) 3000
Packaging PE Bag, Carton
VSWR 2:1
IP Rating IP65
RoHS Yes
Gain 1.36
Length (mm) 55
Width (mm) 55
Height (mm) 11.7
Weight (g) 121
