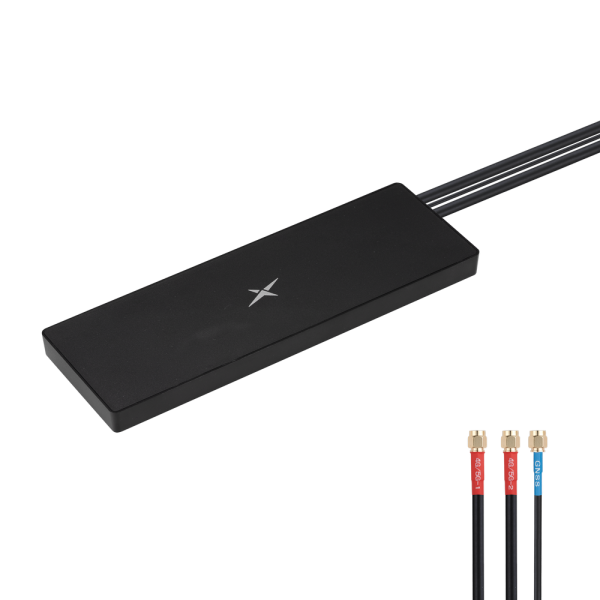

Stream STRM2 3-in-1 GNSS, Wideband Cellular, and Wi-Fi Adhesive Mount Antenna

Compact 5G, Wi-Fi and GNSS Connectivity

The Taoglas Stream II is a high-performance 3-in-1 adhesive mount antenna designed to provide reliable GNSS, cellular, and Wi-Fi^® connectivity for connected devices operating in demanding indoor and outdoor environments. Combining a high-efficiency active GNSS L1 antenna with two ultra-wideband cellular and Wi-Fi^® antenna elements, the Stream II delivers dependable positioning and high-speed wireless communications from a single compact enclosure.

Supporting GNSS constellations including GPS L1, GLONASS G1, Galileo E1, BeiDou B1I/B1C, QZSS L1, SBAS, and L-Band, the integrated low-noise amplifier provides excellent satellite reception for accurate positioning even in challenging signal conditions. The two wideband antenna elements cover 600–8000 MHz, enabling support for global 4G LTE, 5G NR, LTE-M, NB-IoT, Cat M, private LTE networks, Wi Fi^® 6/6E, and other emerging wireless technologies.

The low-profile IP67-rated enclosure is designed for adhesive mounting to walls, cabinets, kiosks, industrial equipment, smart infrastructure, and transportation assets where external drilling is undesirable. With pre-terminated low-loss cables and robust construction, the Stream II provides a simple, reliable antenna solution for industrial IoT, smart city, telematics, networking, security, and enterprise gateway applications requiring simultaneous high-performance positioning and wireless connectivity. Typical applications include:

• Industrial IoT & Automation
• Transportation & Telematics
• Smart Infrastructure
• Energy & Utilities
• Security & Surveillance
• Retail & Commercial

Cable lengths, connector types, and antenna configurations can be customized to meet specific customer requirements. A wall mount bracket is also available for this product, WMB.STRM2.A. For further information or installation guidance, please contact your regional Taoglas customer support team.
